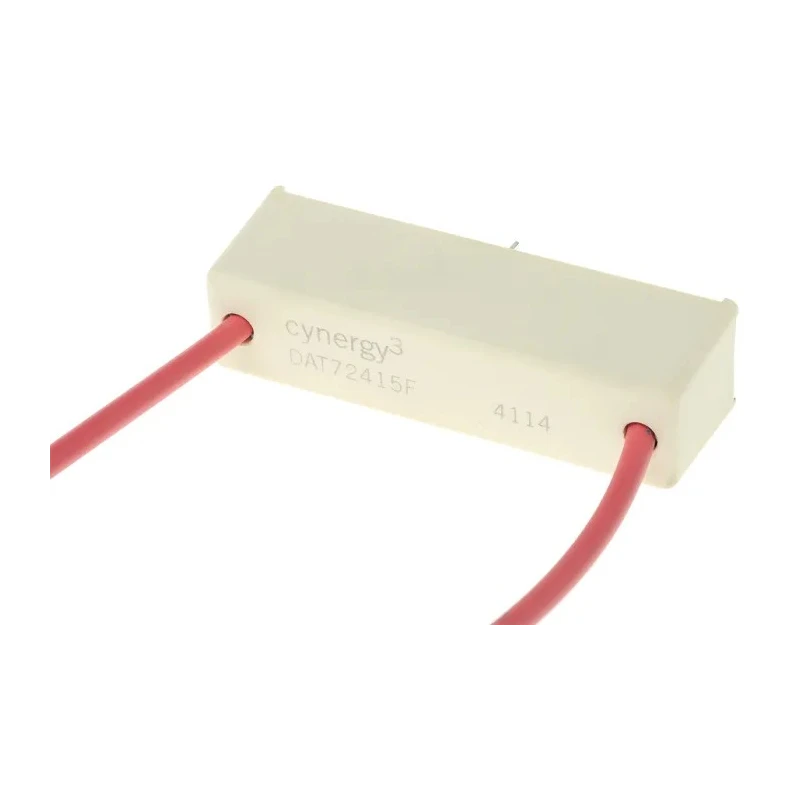

Cynergy3 High-Voltage PCB Reed Relay, 24V DC Coil, SPST Contact, 50W Coil Power, 350Ω Coil Resistance, 10000V DC Max, 2A Max
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 350Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 15kV ac/dc |
Key Features
- This relay supports a maximum voltage of 10000V DC and maximum current of 2A.
- Coil power rating is 50W with a coil resistance of 350Ω ensuring efficient operation.
- The relay has a fast operating time of 3 milliseconds, providing rapid switching capabilities.
- Compact dimensions of 60mm length, 18.5mm height, and 15.8mm depth allow easy integration into PCB designs.
- It features high isolation voltage of up to 15kV AC/DC between coil and contacts.
- Contact resistance is low at 250mΩ, delivering reliable performance in electrical circuits.
- Suitable for applications including semiconductors, test equipment, and electrical power transmission.
- Wide operating temperature range from -20°C to +70°C makes it adaptable to various environments.
Product Description

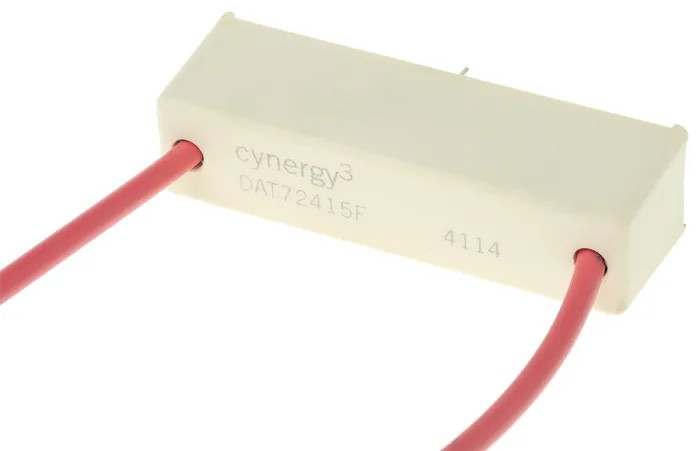

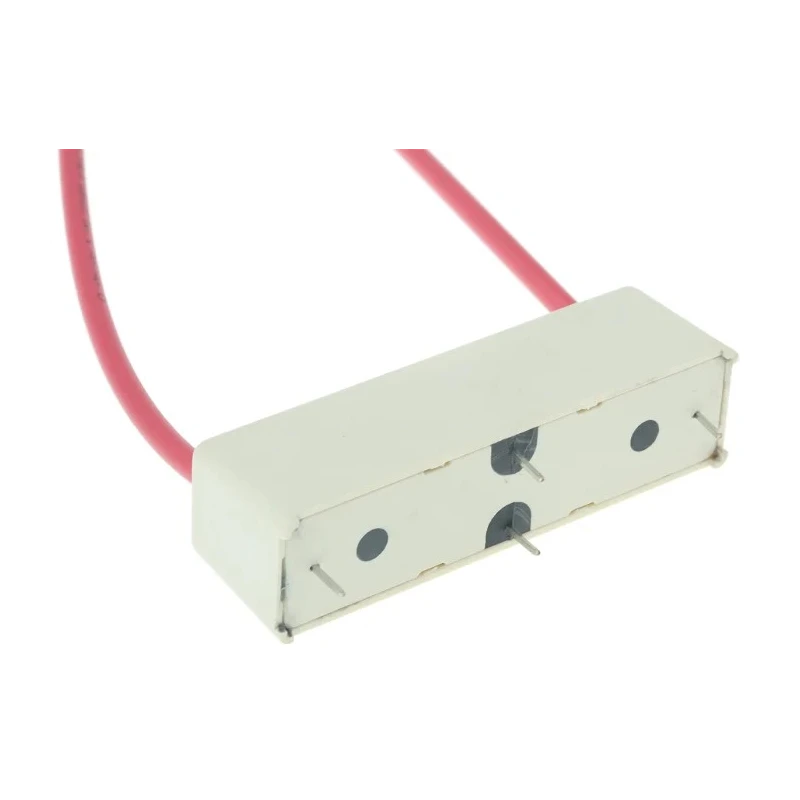

Cynergy3 DAT72415F High-Voltage PCB Reed Relay, with a 24V DC coil and SPST contact configuration, is engineered for demanding electronics and electrical applications requiring high voltage and reliable switching performance.
This relay supports up to 10000V DC maximum voltage and 2A maximum current, making it ideal for test equipment, semiconductor systems, and high voltage power supplies. The coil power of 50W and coil resistance of 350Ω provide dependable coil activation and stable operation under varied load conditions.
Features include a fast operating time of 3 milliseconds, enabling quick and accurate switching. The relay is compact with dimensions of 60mm (length), 18.5mm (height), and 15.8mm (depth), facilitating easy PCB mount installations using solder terminals.
It offers excellent isolation between coil and contact with high isolation voltage rating of 15kV AC/DC, ensuring safety and preventing electrical interference. The tungsten contacts are corrosion-resistant and conductive, supporting long service life and consistent performance.
Designed for harsh environments, this relay operates within a temperature range from -20°C to +70°C. It is UL approved and manufactured in China, promising quality assurance and reliability.
Maximum voltage: 10000V DC. Max current: 2A. Coil power: 50W with 350Ω resistance. Operating time: 3 ms. Compact size for PCB mounting. High isolation voltage: 15kV AC/DC. Tungsten contacts for durability. Operating temperature range: -20°C to +70°C.
UL standards compliant.
This Cynergy3 reed relay is a robust solution for industrial, laboratory, manufacturing, and high voltage electrical applications requiring precise and durable relay components. Explore the full range of reliable Reed Relays and related products on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a maximum voltage of 10000V DC and a maximum current of 2A.
The coil power rating is 50W with a coil resistance of 350Ω.
It has a fast operating time of 3 milliseconds, allowing for quick switching.
The relay has compact dimensions of 60mm in length, 18.5mm in height, and 15.8mm in depth.
It features a high isolation voltage rating of 15kV AC/DC between the coil and contacts.
This model has a Single Pole Single Throw (SPST) contact configuration.
The relay operates within a temperature range from -20°C to +70°C.
It uses solder terminals for mounting.
The contact resistance is low at 250mΩ, ensuring reliable performance.
Yes, it is UL approved, ensuring compliance with relevant safety standards.
The relay features tungsten contacts, which are corrosion-resistant and conductive.
