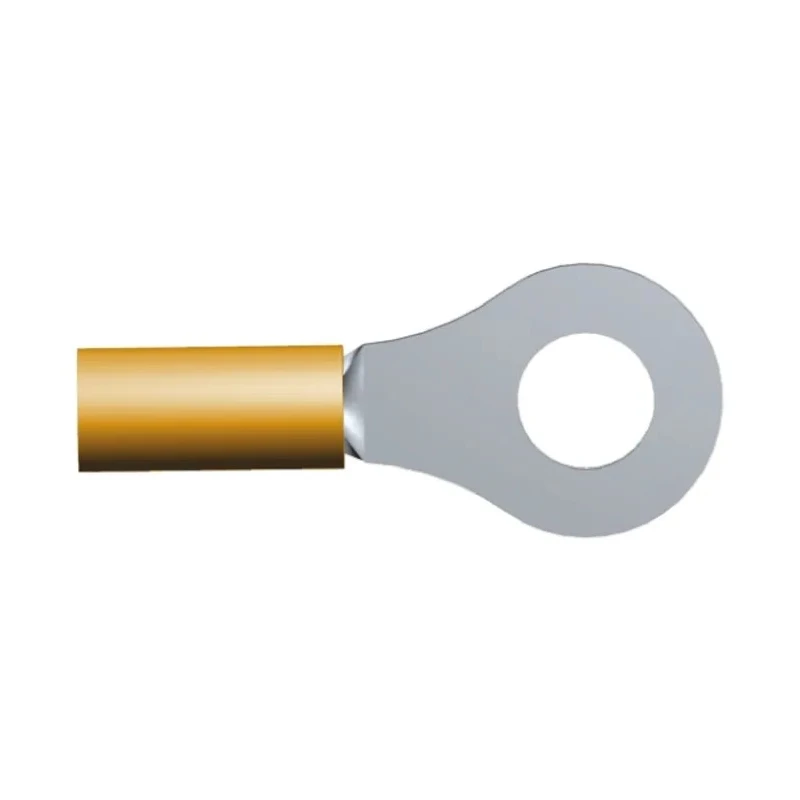

TE Connectivity DG STRATO-THERM Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Orange 322338
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| THICKNESS | 0.79mm |
| Model | 322338 |
| Insulation | Insulated |
| Overall Length | 20.6mm |
| Contact Material | Nickel |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 649°C |
| Standards/Approvals | RoHS |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M5 |
Key Features
- Constructed from solid nickel, alumel, and chromel for high temperature resistance.
- Insulated with nickel silver metallic orange sleeve for clear wire size identification.
- Maximum operating temperature of 649°C (1200°F) for demanding applications.
- Compatible with 16 AWG to 14 AWG wire sizes, supporting 1 mm² to 2.6 mm² wires.
- Serrated barrel design ensures maximum electrical contact upon crimping.
- Overall length of 20.6 mm and thickness of 0.79 mm for precise fitting.
- Compliant with RoHS environmental safety standards.
- Suitable for industrial, manufacturing, electronics, and HVAC wiring tasks.
Product Description
TE Connectivity 322338 DG STRATO-THERM insulated ring terminal is engineered for demanding environments requiring high-temperature resistance and reliable electrical termination. Featuring an M5 stud size, these ring terminals cater to wire sizes from 16 AWG to 14 AWG, corresponding to 1 mm² to 2.6 mm² cross-sectional areas.
Manufactured from solid nickel, alumel, or chromel materials with a nickel silver metallic sleeve, these terminals are capable of withstanding maximum operating temperatures of up to 649°C (1200°F). The orange colour coding enhances quick identification during wiring and assembly processes.
The design incorporates serrations or dimples within the barrel, which maximize the electrical contact area after crimping, ensuring optimal conductivity and mechanical stability. The precise dimensions of 20.6 mm in overall length and 0.79 mm thickness provide a secure and consistent fit for M5 stud connections.
These insulated ring terminals meet RoHS compliance, affirming their adherence to environmental directives by restricting hazardous substances. The terminals suit applications in industrial automation, power distribution, manufacturing machinery, and electronics assembly requiring durability under thermal stress.
Constructed from high-quality nickel, alumel, and chromel metals for durability. Colour-coded orange insulation sleeve for easy wire size identification. Capable of operating reliably up to 649°C maximum temperature. Suitable for solid and stranded conductors ranging from 16 AWG to 14 AWG.
Designed with serrated barrel for excellent electrical contact upon crimping. Overall length of 20.6 mm and a thickness of 0.79 mm. Compliant with RoHS environmental standards. Ideal for industrial, manufacturing, HVAC, and electronics wiring applications.
Ensures secure and efficient wire terminations for M5 stud connections. Explore the comprehensive range of TE Connectivity components at EnvMart for high-quality electronic and electrical solutions tailored to professional industrial needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 649°C (1200°F).
It is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to cross-sectional areas of 1 mm² to 2.6 mm².
The overall length of this insulated ring terminal is 20.6 mm, and its thickness is 0.79 mm.
This terminal features an insulated design with a nickel silver metallic orange sleeve for clear wire size identification.
It is constructed from solid nickel, alumel, and chromel materials, ensuring high temperature resistance.
The stud size for this insulated ring terminal is M5.
The serrated barrel design maximizes the electrical contact area upon crimping, ensuring optimal conductivity and mechanical stability.
Yes, this insulated ring terminal is compliant with RoHS environmental safety standards.
It is suitable for applications in industrial automation, power distribution, manufacturing machinery, and electronics assembly.
The terminal features an orange color coding for easy identification of wire sizes during wiring and assembly processes.
This insulated ring terminal is manufactured in India.
The series name of this terminal is DG STRATO-THERM.
