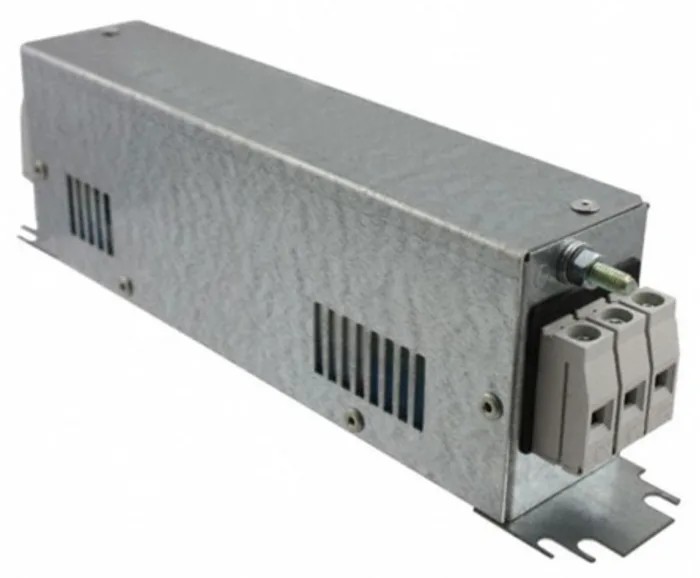

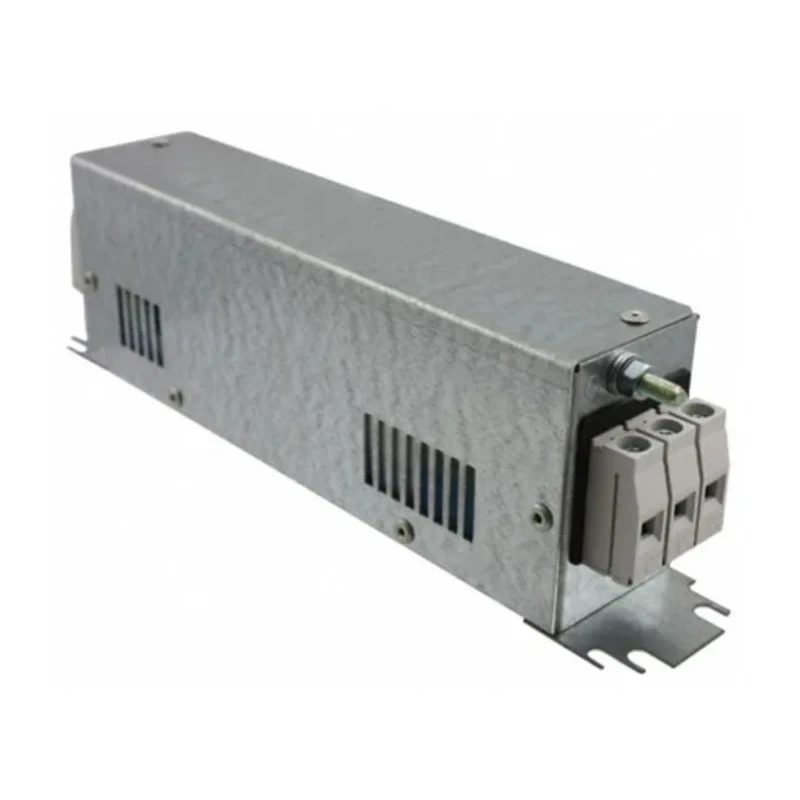

Schurter Flange RFI Filter 36 A 480V AC 60Hz Screw Termination 3 Phase FMAC-091D-3610
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 90mm |
| Length | 58mm |
| Model | FMAC-091D-3610 |
| Depth | 265mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | FMAC ECO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 2.5mΩ |
| Capacitance | 2.2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 3 |
| Leakage Current | 8.9mA |
| Maximum Voltage | 480V ac |
| Inductance | 570μH |
| Standards/Approvals | UL 1283, IEC 60939 |
| Termination Style | Screw |
| Power Loss | 10W |
Key Features
- Designed for high symmetrical and asymmetrical attenuation in power lines.
- Suitable for photovoltaic and industrial applications to suppress interference voltage.
- Features screw clamp terminals for secure connection.
- Compact flange mount with dimensions 90mm height, 265mm depth, and 58mm length.
- Operates within temperature range of -25°C to 100°C with 10W power loss.
- Capacitance of 2.2μF and inductance of 570μH ensure effective filtering.
- Leakage current is low at 8.9mA maintaining safety standards.
- Complies with UL 1283 and IEC 60939 standards with VDE and UL approvals.
Product Description
Schurter FMAC-091D-3610 flange RFI filter is a single-stage, 3-phase power line filter specifically engineered for industrial and photovoltaic system protection against mains interference voltage. Featuring a maximum current rating of 36A and a voltage rating of 480V AC at 60Hz, this filter ensures reliable suppression of electromagnetic interference with a capacitance of 2.2μF and inductance of 570μH.
Designed with screw clamp terminals and flange mounting, the filter provides a robust and compact solution with dimensions of 90mm height, 265mm depth, and 58mm length. It operates effectively within a temperature range of -25°C to 100°C while dissipating a power loss of 10W, making it suitable for demanding environments.
The FMAC series is recognized for its high symmetrical and asymmetrical attenuation across a broad frequency range from 10kHz to 300MHz, ensuring compatibility with various industrial applications. Leakage current is maintained at a low 8.9mA, complying with safety regulations. The internal resistance is 2.5mΩ, promoting efficient conduction with minimal power loss.
This filter meets international standards IEC 60939 and UL 1283, and carries approvals from VDE and UL, guaranteeing quality and reliability for critical applications. It is ideal for integration into equipment compliant with IEC/EN 60950.
Applications include industrial machinery, photovoltaic inverters, and other three-phase power systems requiring robust EMI filtering to ensure operational stability and compliance with electromagnetic compatibility regulations.
Designed for high symmetrical and asymmetrical attenuation in power lines. Suitable for photovoltaic and industrial applications to suppress interference voltage. Features screw clamp terminals for secure connection. Compact flange mount with dimensions 90mm height, 265mm depth, and 58mm length.
Operates within temperature range of -25°C to 100°C with 10W power loss. Capacitance of 2.2μF and inductance of 570μH ensure effective filtering. Leakage current is low at 8.9mA maintaining safety standards. Complies with UL 1283 and IEC 60939 standards with VDE and UL approvals.
Resistance value of 2.5mΩ provides minimal conduction loss. Browse EnvMart's extensive range of Power Line Filters and EMI protection components for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 36A.
It has a voltage rating of 480V AC at 60Hz.
The dimensions are 90mm in height, 58mm in length, and 265mm in depth.
It operates within a temperature range of -25°C to 100°C.
The capacitance is 2.2μF and the inductance is 570μH.
It features screw clamp terminals for secure connection.
It complies with UL 1283 and IEC 60939 standards, and has approvals from VDE and UL.
The leakage current is low at 8.9mA.
The power loss is rated at 10W.
The internal resistance is 2.5mΩ, promoting efficient conduction.
This filter is designed for 3-phase applications.
