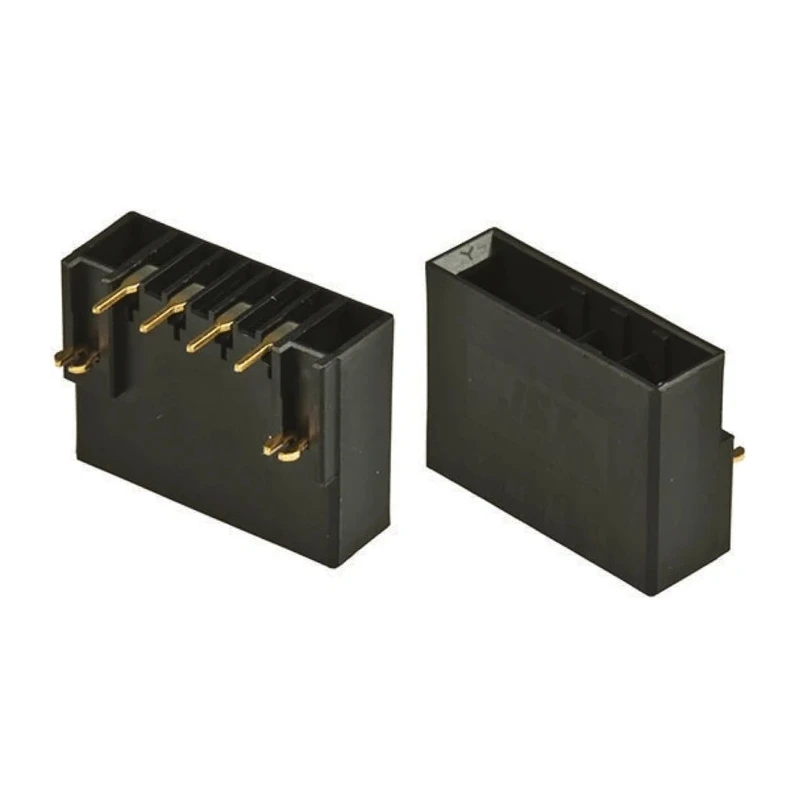

JST JFA J300 Series Right Angle Through Hole PCB Header 6 Contacts 5.08 mm Pitch 1 Row Shrouded S06B-F32SK-GGXR

JST S06B-F32SK-GGXR is a JFA J300 Series right angle through hole PCB header designed for robust electronic applications. It features 6 male contacts arranged in a single row with a 5.08 mm pitch and shrouded housing constructed from thermoplastic material with UL 94V-0 flame retardancy, making it suitable for industrial and manufacturing use.

This PCB header supports wire-to-board connections with a double spring contact construction that includes a main spring and a contact pressure adjustment spring, ensuring reliable electrical performance and low contact resistance. The gold-plated copper alloy contacts provide excellent corrosion resistance and conductivity for currents up to 10.5A and voltages up to 600V.

The right angle orientation facilitates effective PCB layout and space optimization in electronic assemblies. The connector is designed for through-hole mounting with solder termination, ensuring a secure and durable connection.

Operating temperature ranges from -55°C to 105°C, allowing it to function reliably across a wide range of environmental conditions in industrial, laboratory, or manufacturing applications involving electronic components and power connectors. The polarized design prevents improper mating by using key codes in the part number.

The JST J300 Series connectors are compatible with J-FAT spring terminal connectors and include housing lances and secure locking methods, making them ideal for automated machinery and electronic assembly lines.

Supports wire sizes 14-28 AWG for flexible connectivity. Double spring construction enhances contact pressure and reliability. Housing made of thermoplastic with UL 94V-0 flame rating. Gold plated copper alloy contacts ensure corrosion resistance and conductivity.

Rated for 10.5A current and 600V voltage operation. Right angle orientation with single row and shrouded housing for protection. Temperature range from -55°C to 105°C suitable for industrial environments. Through hole mounting ensures secure PCB attachment.

Contact gender is male with solder termination. Designed to mate with J-FAT spring terminal connectors for automated assembly.

This highly reliable PCB Header is suitable for applications in electronics manufacturing, industrial power control systems, electronic test equipment, and other use cases requiring durable wire-to-board connections. It provides ease of installation and long-term performance in challenging environments.
