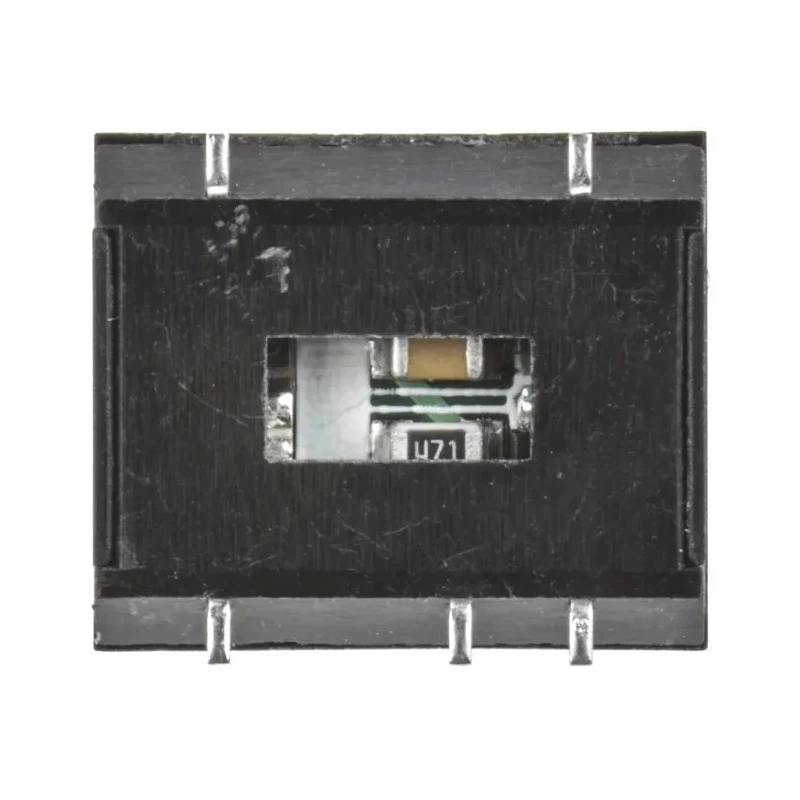

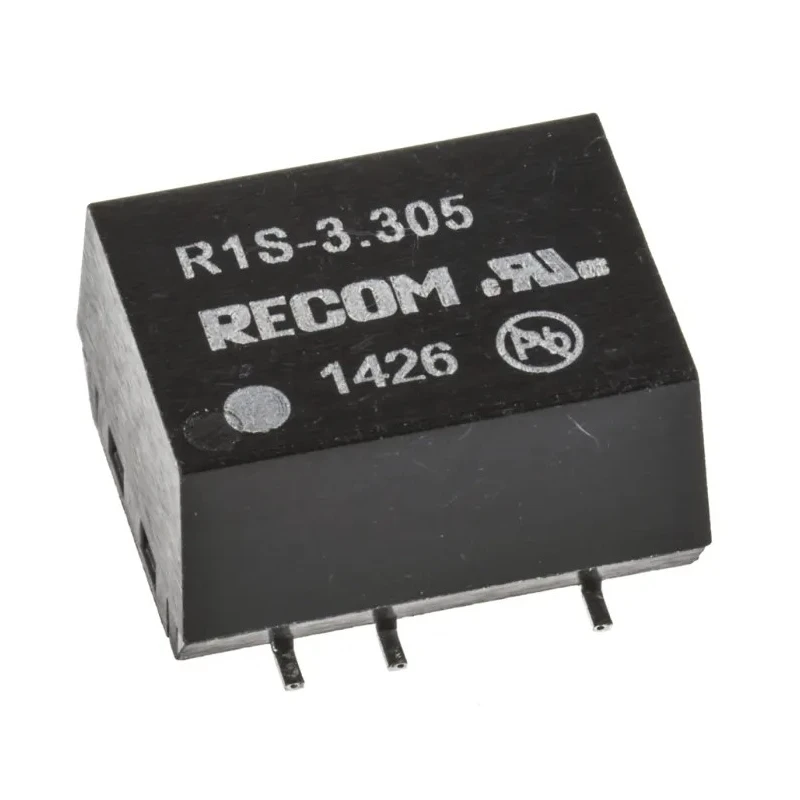

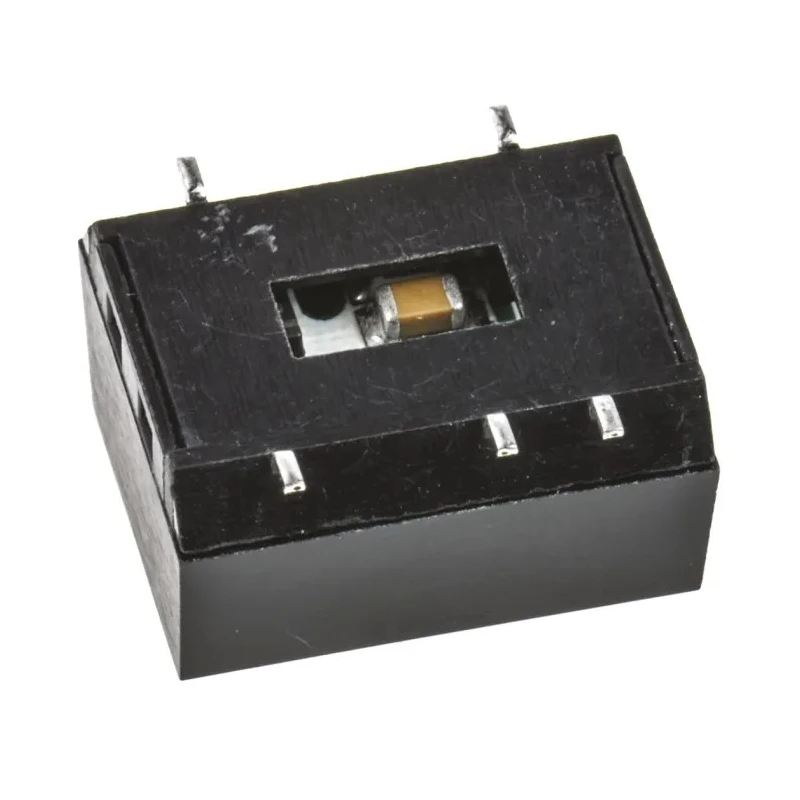

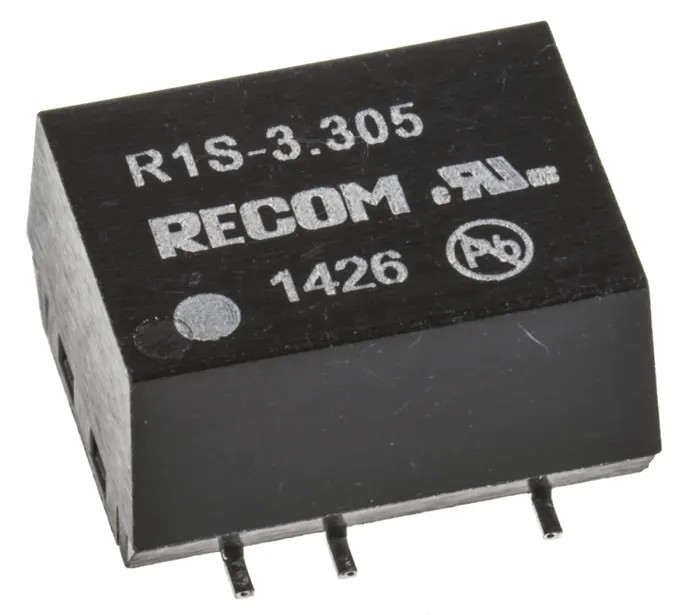

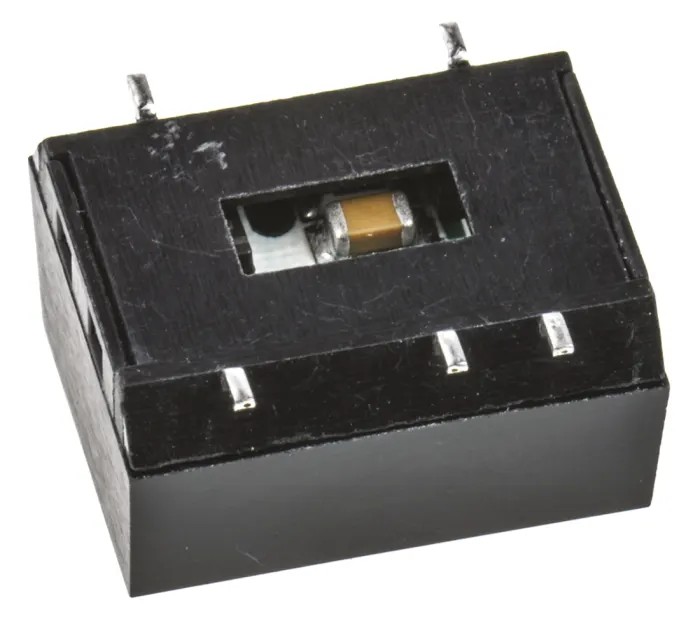

Recom DC/DC Converter Surface Mount 5V Output Voltage 200mA Output Current 1W Power R1S-3.305

Recom R1S-3.305 DC/DC Converter is a high-performance surface mount electronic component delivering a regulated 5V DC output at 200mA current, with a power rating of 1W. Designed for compact integration, it accepts input voltages ranging between 2.97V and 3.3V DC, suited for sensitive electronic power conversion needs in industrial, laboratory, and commercial electronics.

This device features robust electrical isolation of 1kV DC, enhancing safety by preventing electrical interference between input and output circuits. It is built in a surface mount package with dimensions of 12.75mm length, 10.7mm width, and 6.7mm depth, allowing for easy incorporation into high-density printed circuit boards.

The R1S-3.305 supports a wide operating temperature range from -40°C up to 100°C, providing stable operation even under harsh environmental conditions. With an efficiency rating of up to 84%, the converter efficiently minimizes power loss and heat generation, contributing to system reliability.

Featuring a single output and 8-pin layout, this DC/DC converter is suitable for a wide variety of applications including industrial automation, electronic instrumentation, power supply modules, communication equipment, and embedded systems requiring isolated power sources.

Reliability is assured with a Mean Time Between Failures (MTBF) of approximately 4.275 million hours, ensuring long-term dependable performance. It meets global safety standards, including UL60950-1, and holds certifications such as CB and CSA, recognized worldwide for electronic component safety compliance.

Manufactured in Taiwan, Province of China, this Recom converter provides engineers and system designers with a trustworthy solution for isolated DC power conversion tasks in demanding electronic environments.

Supports input voltage range from 2.97V to 3.3V for flexible operation. Compact surface mount package type with 12.75mm length, 10.7mm width, and 6.7mm depth dimensions. High isolation voltage of 1kV DC ensures electrical safety and noise reduction.

Designed to operate within temperatures from -40°C to 100°C continuously. Provides high efficiency up to 84%, reducing energy losses. Features an 8-pin configuration suitable for various electronic applications. MTBF exceeds 4.275 million hours, indicating excellent reliability.

Single output design ideal for isolated DC/DC power conversion tasks. Complies with UL60950-1 standard with CB, CSA, and UL recognized component approvals. Explore more DC/DC Converters and electronic components at EnvMart for reliable industrial, laboratory, and commercial power supply solutions.
