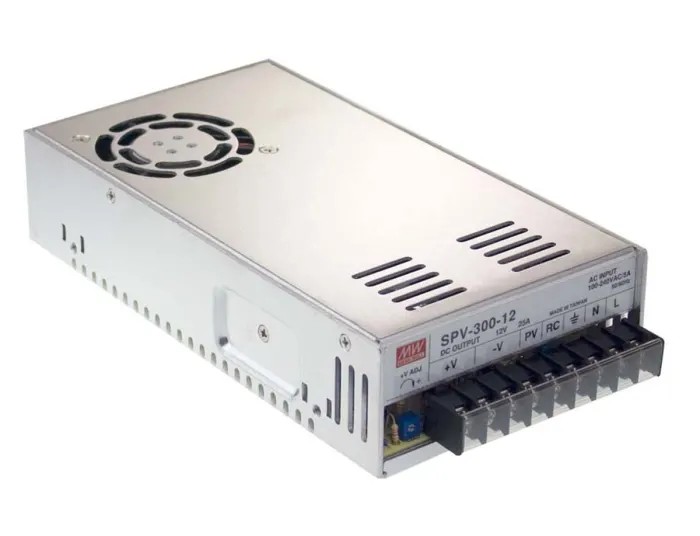

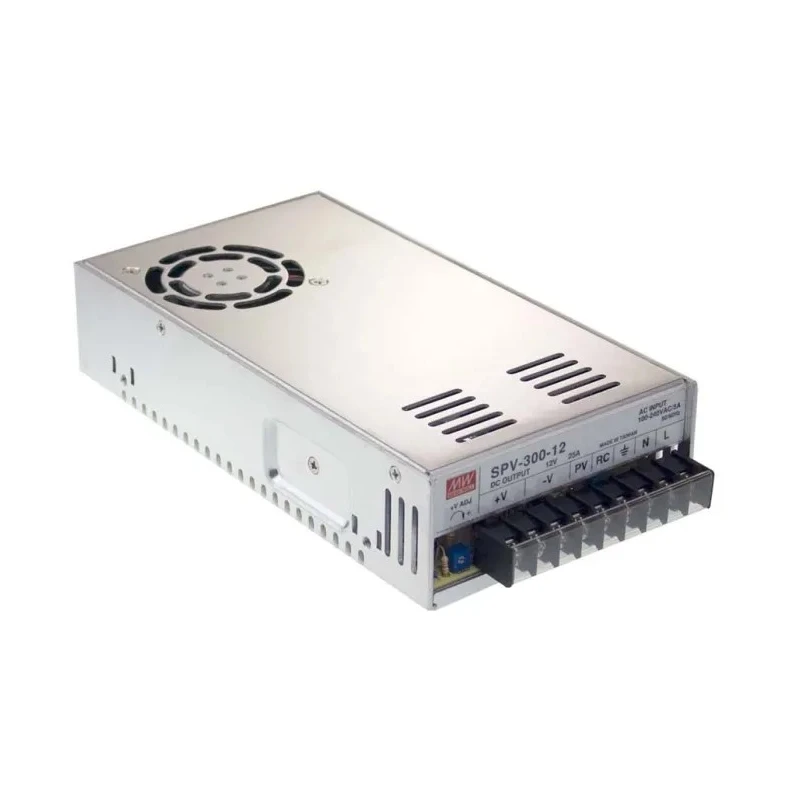

MEAN WELL SPV-300-48 Switching Power Supply 48V DC, 300W, Chassis Mount SPV-300-48
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 300W |
| Efficiency | 86.5% |
| Length | 215mm |
| Model | SPV-300-48 |
| Depth | 50mm |
| Gross Weight | 1.1kg |
| Width | 115mm |
| Mount Type | Chassis |
| Series | SPV-300 |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Protections | Short circuit, Overload, Over voltage, Over temperature |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 6.25A |
| Minimum Input Voltage | 88V ac |
Key Features
- Offers a maximum output voltage of 48V DC and output current of 6.25A.
- Designed with built-in active PFC function providing power factor greater than 0.95.
- Equipped with protections against short circuit, over voltage, overload, and over temperature.
- Operates within a wide temperature range from -20°C to 65°C for reliable performance.
- Features a built-in DC fan with on/off and speed control for effective cooling.
- Programmable output voltage adjustable from 20% to 110% using external control voltage.
- High efficiency design achieving up to 86.5% efficiency.
- Compact chassis mount with dimensions 215mm (L) x 115mm (W) x 50mm (D).
Product Description
MEAN WELL SPV-300-48 Switching Power Supply offers a single output of 48V DC with a power capacity of 300W. This switching power supply is designed for chassis mounting, providing reliable and efficient power conversion ideal for various industrial and laboratory applications.
The SPV-300 series allows for programmable output voltage tuning via an external control voltage ranging from 1 to 5.5 VDC, enabling output voltage adjustment from 20% to 110% to meet specific equipment requirements. This flexibility supports use in systems necessitating multiple voltage levels or fine voltage control.
Featuring an active Power Factor Correction (PFC) function with a power factor exceeding 0.95, the SPV-300-48 ensures efficient energy usage and reduced harmonic disturbances. Its fixed switching frequency at 100 kHz contributes to compact size and steady output performance.
This power supply integrates multiple protections, including short circuit, overload, over voltage, and over temperature safeguards to enhance safety and longevity. Cooling is managed by a built-in long-life DC fan equipped with speed and on/off control, maintaining optimal operating temperature and system reliability.
The unit is engineered to operate in ambient temperatures from -20°C up to 65°C, making it suitable for a wide range of industrial environments. Its compact chassis dimensions (215 mm length, 115 mm width, and 50 mm depth) facilitate installation in constrained spaces.
Applications for the SPV-300-48 include LCD panel burn-in processes, IC testing equipment, factory automation systems, and mechanical and electrical industrial uses where stable, adjustable DC power is critical.
Compliance with standards such as UL 62368-1, TUV EN 62368-1, IS 13252(Part1)/IEC 60950-1, and others ensures rigorous safety and performance benchmarks. Maximum output voltage of 48V DC with 6.25A current capacity. Built-in active PFC and high efficiency of 86.5%.
Multiple built-in protection features for safe operation. Programmable output voltage via external control voltage. Built-in variable speed DC fan for cooling. Chassis mount with compact size for easy integration. Wide operating temperature range and robust certifications.
Explore more Switching Power Supplies and electronic components at EnvMart to enhance your projects with high-quality, reliable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 48V DC.
This unit has a power capacity of 300W.
It achieves an efficiency of up to 86.5%.
The power supply includes protections against short circuit, overload, over voltage, and over temperature.
It operates within a temperature range from -20°C to 65°C.
The dimensions are 215mm in length, 115mm in width, and 50mm in depth.
The maximum output current is 6.25A.
It is designed for chassis mounting.
Yes, the output voltage is programmable and can be adjusted from 20% to 110% using an external control voltage.
The country of origin is Taiwan.
The maximum input voltage is 370V DC or 264V AC.
It is suitable for applications such as LCD panel burn-in processes, IC testing equipment, and factory automation systems.
