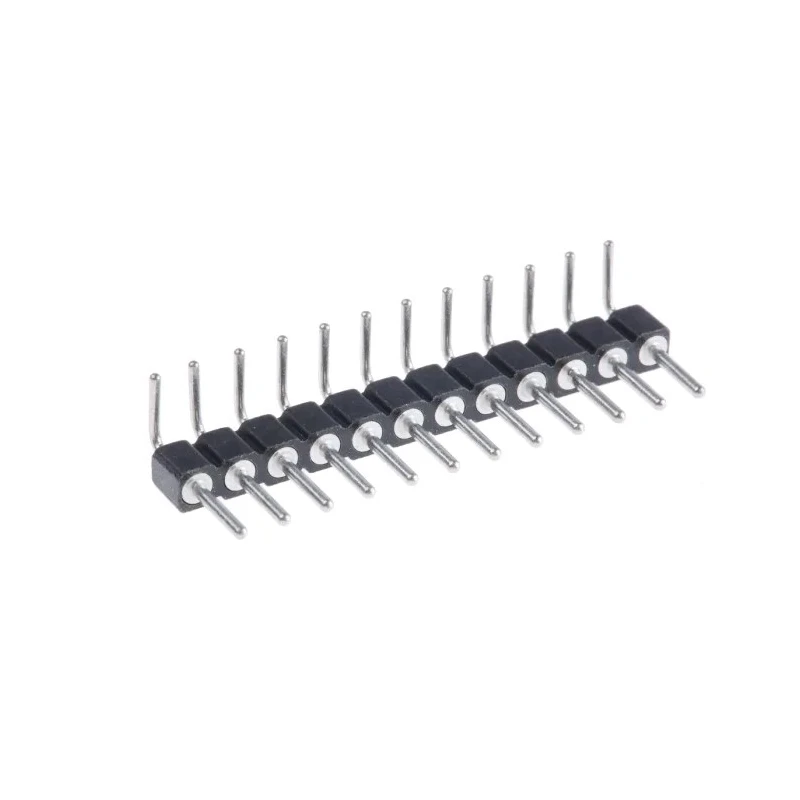

Preci-Dip 800 Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-012-20-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with brass contacts plated in tin for reliable conductivity.
- Housing made of fibreglass reinforced polyethylene terephthalate for durability.
- Rated for 3A current and 150V maximum voltage operation.
- Designed with a right angle orientation suitable for through hole mounting.
- Operates reliably between -55°C and 125°C temperature range.
- Unshrouded design allows easy access and solder termination type.
- Compliant with UL 94V-0 standards for insulation material.
- Manufactured in Switzerland ensuring high quality and precision.
Product Description
Preci-Dip 800-80-012-20-001101 Right Angle Through Hole Pin Header is a high-quality electronic connector designed for secure PCB mounting and signal connectivity. Featuring 12 male contacts in a single row, this unshrouded pin header offers a 2.54 mm pitch making it compatible with standard PCB designs.
Each pin is made from brass and plated with tin to ensure excellent electrical conductivity and corrosion resistance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, providing mechanical strength and flame resistance, certified to UL 94V-0 standard.
This connector is rated for a continuous current of 3A and a maximum voltage of 150V, making it suitable for various industrial and commercial electronic applications. Its right angle orientation and through hole mount type facilitate robust mechanical assembly and reliable solder joint formation with a tail length of 3.2 mm.
Preci-Dip's 800 series connectors operate efficiently under extreme temperature conditions ranging from -55°C to +125°C, suitable for demanding environments in industrial automation, telecommunications, and electronics manufacturing sectors.
Brass male contacts with tin plating for durable electrical connections. Fibreglass reinforced housing meets flame retardant UL 94V-0 standard. Rated 3A current and 150V voltage for reliable performance. Right angle and through hole mounting for PCB assembly versatility.
Operating temperature range from -55°C to 125°C. Unshrouded design allows easy solder termination. Manufactured in Switzerland ensuring industry-quality standards.
This pin header is ideal for applications requiring secure and precise PCB connections including industrial equipment, laboratory instruments, communication devices, and consumer electronics assembly. It supports modular design configurations and simplifies maintenance and upgrades of electronic components.
Explore more electronic connectors and PCB components at EnvMart for comprehensive solutions tailored to your industrial and manufacturing needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 150V.
It is rated for a continuous current of 3A.
The pitch size of the contacts is 2.54 mm.
The contacts are made from brass and plated with tin, while the housing is constructed from fibreglass reinforced polyethylene terephthalate.
This connector operates reliably between -55°C and 125°C.
This model features 12 male contacts in a single row.
It is designed for through hole mounting.
This model is unshrouded, allowing for easy access and solder termination.
The contact tails have a length of 3.2 mm.
The housing material is compliant with UL 94V-0 standards for insulation material.
It is manufactured in Switzerland, ensuring high quality and precision.
It is suitable for various applications including industrial equipment, laboratory instruments, communication devices, and consumer electronics assembly.
