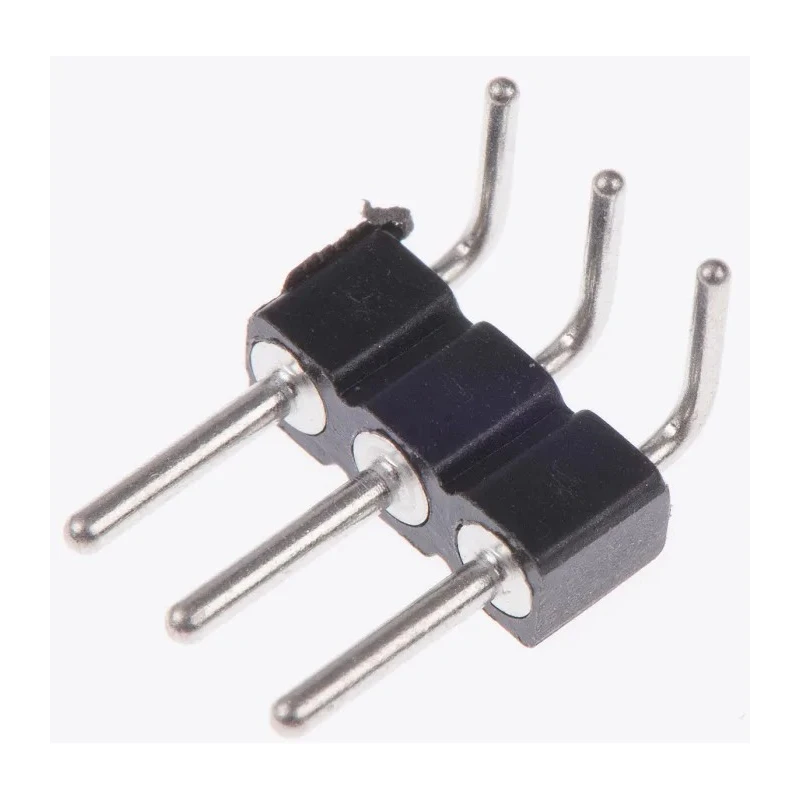

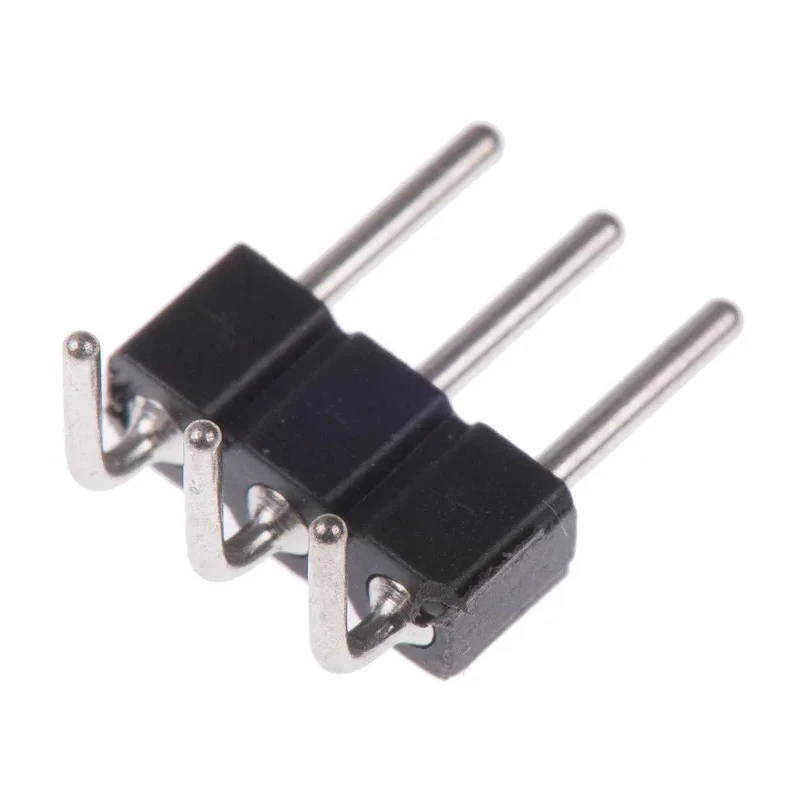

Preci-Dip 800 Series Right Angle Through Hole Pin Header 3 Contacts 2.54 mm Pitch 1 Row Unshrouded 800-80-003-20-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 800 Series Right Angle Through Hole Pin Header 3 Contacts 2.54 mm Pitch 1 Row Unshrouded 800-80-003-20-001101

Name: Preci-Dip 800 Series Right Angle Through Hole Pin Header 3 Contacts 2.54 mm Pitch 1 Row Unshrouded 800-80-003-20-001101
Brand: Preci-Dip
SKU: 127233
Price: 0.64 USD
Availability: InStock



Category PCB Headers Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	800
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Constructed with fiberglass reinforced polyethylene terephthalate housing for durability.
Features brass male contacts with tin plating for reliable electrical connection.
Supports up to 3A current and operates at a voltage of 150V.
Designed for through hole mount with right angle orientation for PCB applications.
Operating temperature range from -55°C to 125°C allows for versatile industrial use.
Unshrouded design simplifies solder termination and inspection.
Compact 1-row configuration facilitates space-saving PCB layouts.
Manufactured in Switzerland, assuring high quality and standards compliance.

Product Description

Preci-Dip 800-80-003-20-001101 Right Angle Through Hole Pin Header is a high-quality electronic connector designed for PCB applications requiring dependable connections. This connector from the 800 Series features a 2.54 mm pitch and 3 contacts arranged in a single row with an unshrouded configuration to facilitate soldering and inspection.

The housing is made from fiberglass reinforced polyethylene terephthalate, offering excellent mechanical strength and electrical insulation. Brass male contacts with tin plating ensure good conductivity and resistance to corrosion. The connector supports a current rating of 3A and a voltage rating of 150V, making it suitable for various low-power electronic circuits.

Designed for through hole mounting with a right angle orientation, this pin header fits PCB designs requiring space-efficient connector solutions. It operates reliably from -55°C up to 125°C, supporting use cases in industrial, laboratory, manufacturing, and commercial electronic equipment.

The 800 Series connectors are manufactured in Switzerland to stringent quality standards, guaranteeing performance and durability. Ideal for assembly and repair, the pin header allows secure and robust connector points on printed circuit boards.

Constructed with fiberglass reinforced polyethylene terephthalate housing for durability. Features brass male contacts with tin plating for reliable electrical connection. Supports up to 3A current and operates at a voltage of 150V.

Designed for through hole mount with right angle orientation for PCB applications. Operating temperature range from -55°C to 125°C allows for versatile industrial use. Unshrouded design simplifies solder termination and inspection.

Compact 1-row configuration facilitates space-saving PCB layouts. Manufactured in Switzerland, assuring high quality and standards compliance. Explore the PCB Headers category for more Preci-Dip connectors and related electronic components suitable for advanced and industrial electronics manufacturing.
