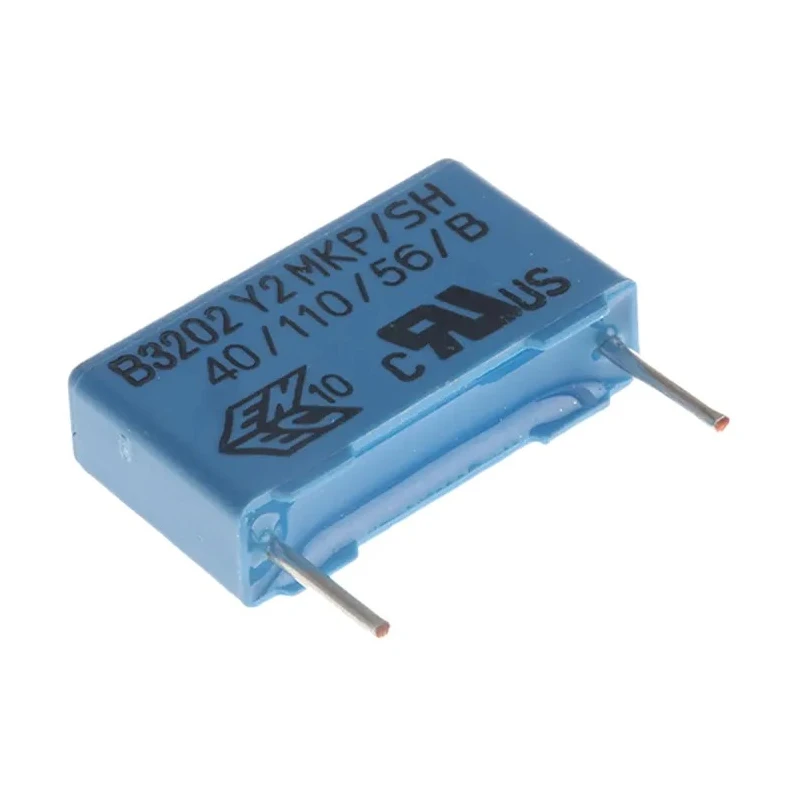

TDK Film Capacitor 10 nF, 300V AC/DC, Through Hole, 2 Pins, 15mm Lead Pitch B32022A3103M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 10 nF, 300V AC/DC, Through Hole, 2 Pins, 15mm Lead Pitch B32022A3103M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	10.5mm
Length	18mm
Model	B32022A3103M000
Width	5mm
Mount Type	Through Hole
Series	B32022
Maximum Operating Temperature	110°C
Capacitance	10nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Vishay Polyester Film Capacitor, 250V ac, ±20%, 10nF, Through HoleBrand	Vishay
Plastic Case	UL 94 V-0
Epoxy Resin Sealing	UL 94 V-0

Key Features

Polypropylene film capacitor with plastic case and epoxy sealing for durability.
Capacitance value of 10 nF, rated for 300V AC and 300V DC operation.
Through hole design with 2 pin configuration and 15mm lead pitch for PCB mounting.
Compact size with 18mm length, 5mm width, and 10.5mm height.
Wide operating temperature range from -40°C to 110°C.
Compliant with UL, CSA, EN 132400, and IEC 60384-14 standards.
Ideal for Y2 class interference suppression and line-to-ground applications.

Product Description

The TDK B32022A3103M000 is a high-quality polypropylene film capacitor designed for interference suppression in electronic assemblies. With a capacitance of 10 nF and rated at 300V AC as well as 300V DC, this component is engineered to offer excellent performance in both commercial and industrial circuit designs. The capacitor is supplied in a robust plastic case, sealed with epoxy resin in accordance to UL 94 V-0 standards, providing superior durability and electrical insulation.

This capacitor features a through hole mounting configuration with a two-pin setup and a 15mm lead pitch, supporting easy integration into standard PCB layouts. Its dimensions of 18mm length, 5mm width, and 10.5mm height allow for compact placement within circuit boards where space is a constraint.

Thanks to its self-healing properties and high voltage capability, the B32022A3103M000 is suitable for Y2 class interference suppression and line-to-ground applications. The operating temperature range from -40°C up to 110°C ensures compatibility with demanding environmental conditions, both in industrial and commercial settings.

Compliance with multiple international standards, including EN 132400, IEC 60384-14, UL, and CSA, highlights its suitability for circuits requiring strict safety and quality assurances. The capacitor is designed not to be used where failure could expose operators to electric shock, supporting reliability in sensitive applications.

Industrial uses include electronics manufacturing, power supplies, HVAC control boards, and laboratory instruments where noise filtering and interference suppression are required. Its design contributes to stable circuit operation and long service life in various equipment.

Polypropylene film construction provides high dielectric strength and longevity. Plastic case and epoxy resin sealing ensure safety and environmental resistance. Rated at 300V AC and 300V DC, supporting a wide range of voltage applications.

Suitable for through hole mounting in industrial and laboratory-grade PCBs. Used in Y2 class interference suppression, line-to-ground safety applications, and electronic devices requiring compliance with international safety standards.

Explore more industrial-grade capacitors and electronic components from TDK and other leading brands in the Film Capacitor category at EnvMart.
