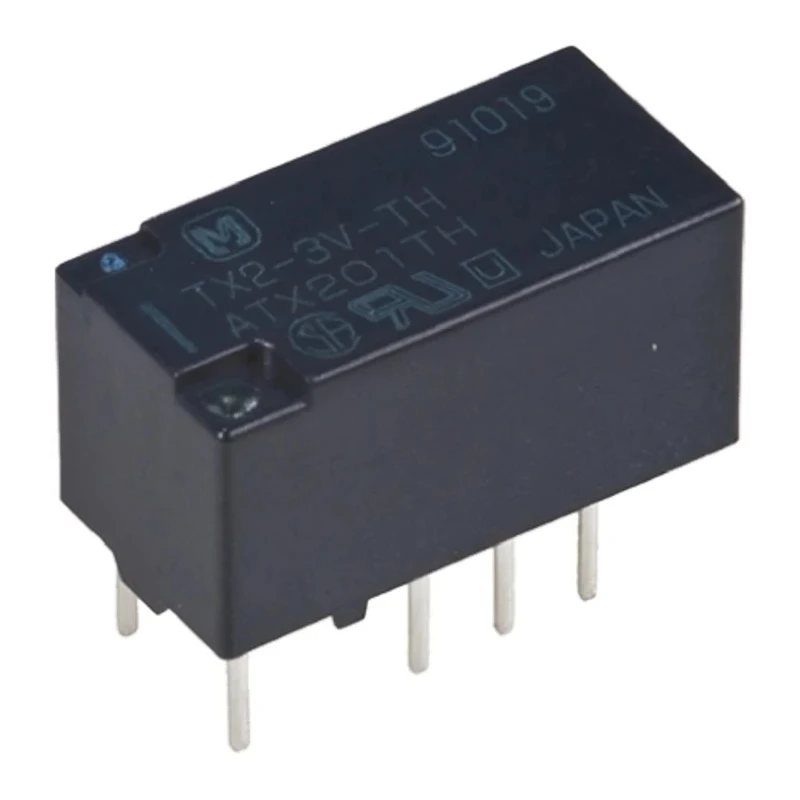

Panasonic 24V dc Coil 2A DPDT Surface Signal Relay TX2-24V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-24V-TH |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| UL recognised, | CSA,:BSI |
Key Features
- Features a coil voltage rating of 24V dc for precise control.
- Double pole double throw (DPDT) contact configuration enables versatile switching.
- Supports switching currents up to 2A with a switching voltage of 220V (AC/DC).
- Compact surface mount design with dimensions 15mm x 7.4mm x 8.2mm.
- Equipped with gold plated contacts for enhanced conductivity and durability.
- Operates effectively within a temperature range of -40°C to 85°C.
- Coil resistance of 4100 ohms and low coil power consumption at 140mW.
- Sealed construction supports automatic washing and offers excellent vibration and shock resistance.

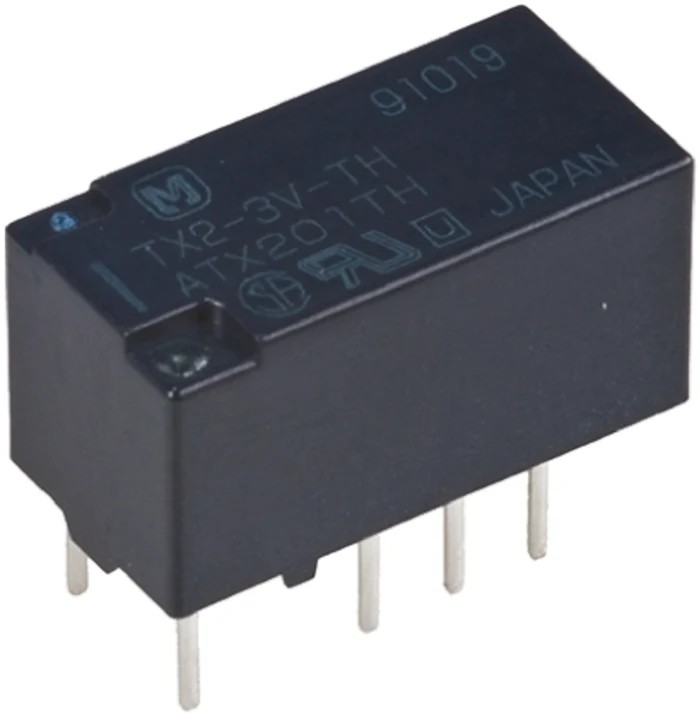

Product Description
Panasonic TX2-24V-TH is a compact surface Signal Relay designed for reliable switching operations in industrial and commercial electronics. It features a 24V dc coil voltage and a DPDT contact configuration capable of handling 2A switching currents at 220V AC/DC.
This relay offers exceptional surge resistance and contact capacity, making it suitable for high capacity control tasks such as air conditioning control systems, automation, and signal conditioning in electrical circuits.
The relay is surface mount type with small dimensions of 15mm length, 7.4mm width, and 8.2mm height, enabling installation in tight spaces. Its coil resistance of 4100Ω and coil power of 140mW ensures energy efficiency. Gold plated contacts provide enhanced conductivity and long service life.
With operating temperature range from -40°C to 85°C and sealed construction, this relay offers durability against environmental challenges including vibration and shock, and supports automatic washing processes.
Manufactured in Japan, the TX2-24V-TH complies with RoHS standards and is UL recognised for safety and quality, suitable for use in industrial, laboratory, HVAC, automation, and manufacturing sectors.
24V dc coil voltage for precise operation. Double pole double throw (DPDT) contact arrangement. Switching capacity of 2A at 220V AC/DC. Compact surface mount form factor with small footprint. Gold plated contact materials ensure reliable conductivity.
Wide operating temperature range from -40°C to 85°C. Low coil power consumption of 140mW. Sealed construction for vibration and shock resistance. Applications include HVAC control, automation, and signal switching. Complies with RoHS and UL recognised standards.
Explore more high-quality relays and signal conditioning products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this relay is 24V DC, allowing for precise control in various applications.
This model features a double pole double throw (DPDT) contact configuration, enabling versatile switching capabilities.
It supports switching currents up to 2A, making it suitable for various control tasks.
The relay has compact dimensions of 15mm in length, 7.4mm in width, and 8.2mm in height, ideal for installations in tight spaces.
It operates effectively within a temperature range of -40°C to 85°C, ensuring functionality in diverse environments.
This model is designed for surface mounting, facilitating easy installation in various applications.
The contacts of this relay are made from gold plated materials, enhancing conductivity and durability.
The coil resistance is 4100 ohms, contributing to its low power consumption.
The relay has a low coil power consumption of 140mW, which supports energy efficiency in operation.
Yes, it complies with RoHS standards and is UL recognised, ensuring safety and quality in its applications.
This relay is suitable for HVAC control, automation, and signal switching in various industrial and commercial settings.
The maximum switching voltage for this model is 220V, applicable for both AC and DC operations.
