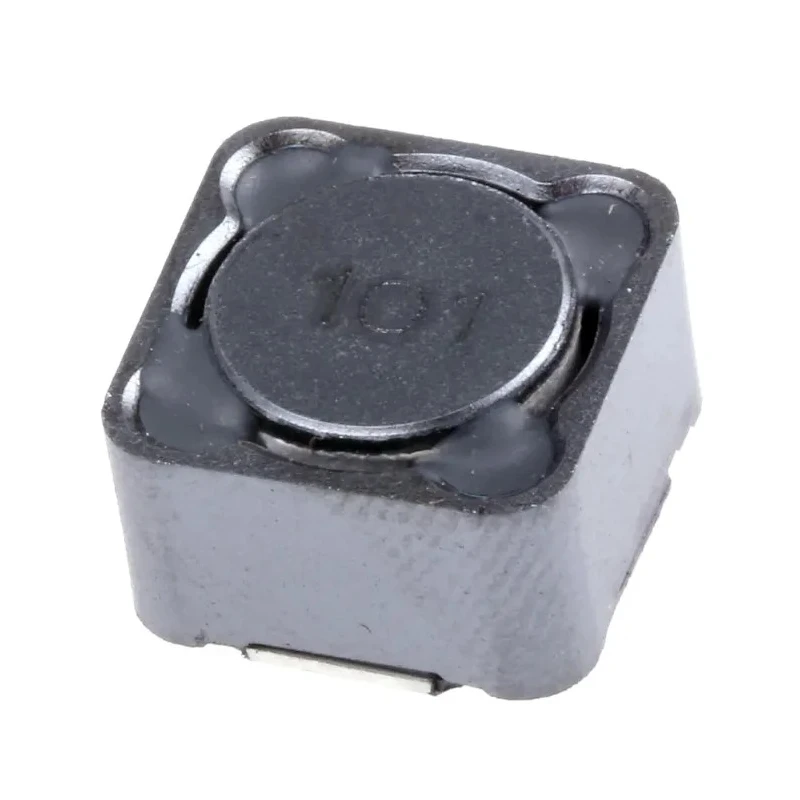

Bourns Shielded Surface Mount Inductor 100 μH ±20% 2.1A IDC Ferrite DR & RI Core SRR1280
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 7.5mm |
| Length | 12.5mm |
| Model | SRR1280 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1280 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR & RI |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 1280 |
| Maximum DC Current | 2.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 150mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 4.5MHz |
| Minimum Quality Factor | 18 |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound construction for reduced electromagnetic interference.
- Features a Ferrite DR & RI core for enhanced magnetic properties.
- Designed for operation from -40°C to 125°C with RoHS compliance.
- Maximum DC resistance of 150 mΩ with a quality factor of at least 18 at resonance.
- Termination style is solder for reliable PCB mounting.
- Suitable for use in power supply circuits, DC/DC converters, and portable communication equipment.
- Packaged in a reel format for efficient automated assembly.
Product Description
The Bourns SRR1280 model is a shielded surface mount inductor with a 100 μH inductance value and ±20% tolerance, engineered for high-frequency and high-current applications. Utilizing a Ferrite DR & RI core along with wirewound construction, this inductor provides excellent magnetic shielding and performance stability.
With a maximum DC current rating of 2.1 A and a maximum DC resistance of 150 mΩ, the SRR1280 is tailored for use in demanding environments such as portable communication equipment, camcorders, LCD TVs, and car radios. Its low profile design dimensions of 12.5 mm length, 7.5 mm height, and 12.5 mm depth allow for compact PCB layouts.
The inductor operates reliably over a wide temperature range from -40°C to 125°C and complies with RoHS standards ensuring environmental compatibility. The termination style is solder, enabling secure and consistent board mounting in manufacturing processes.
Ideal for input/output stages of DC/DC converters and power supplies, this inductor offers a quality factor of 18 at its 4.5 MHz self-resonant frequency, ensuring efficient performance at high frequencies. Its molded construction enhances durability and protects against mechanical stress.
Magnetically shielded wirewound construction for reduced EMI. Ferrite DR & RI core material ensures high permeability and low losses. Compact size suitable for dense PCB layouts. Wide operating temperature range from -40°C to 125°C.
RoHS compliant promoting environmentally safe manufacturing. High current handling with 2.1 A maximum DC current. Low DC resistance for reduced power loss. Packaged on reels for automated placement.
This component is commonly used in industrial, communication, consumer electronics, and automotive applications requiring reliable, high-performance inductors. Explore other Surface Mount Inductors in the Bourns SRR1280 series for matching specifications. EnvMart offers a comprehensive range of electronic components suited for demanding design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 μH with a tolerance of ±20%.
It has a maximum DC current rating of 2.1 A, suitable for high-current applications.
The maximum DC resistance is 150 mΩ, which helps in reducing power loss.
This unit has a length of 12.5 mm, a height of 7.5 mm, and a depth of 12.5 mm.
It operates reliably over a wide temperature range from -40°C to 125°C.
The inductor utilizes a Ferrite DR & RI core, which enhances its magnetic properties.
The termination style is solder, which allows for reliable PCB mounting.
The maximum self-resonant frequency is 4.5 MHz, ensuring efficient performance at high frequencies.
Yes, it complies with RoHS standards, promoting environmentally safe manufacturing.
It is suitable for use in power supply circuits, DC/DC converters, and portable communication equipment.
It is packaged in a reel format, which facilitates efficient automated assembly.
The minimum quality factor is 18 at its self-resonant frequency, indicating good performance.
