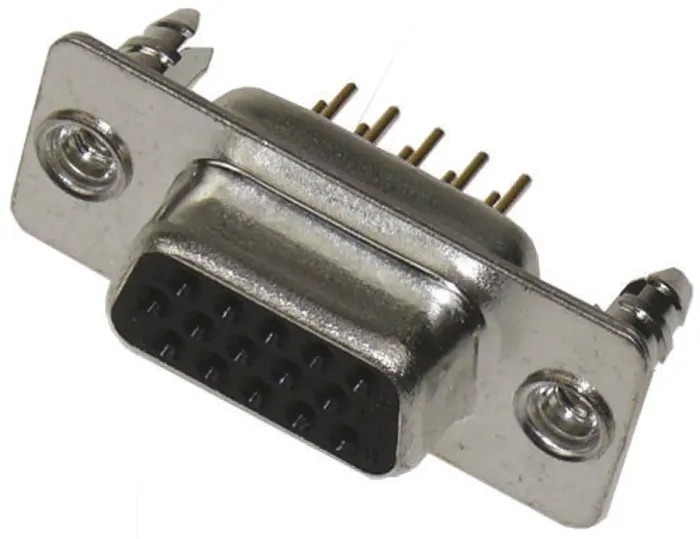

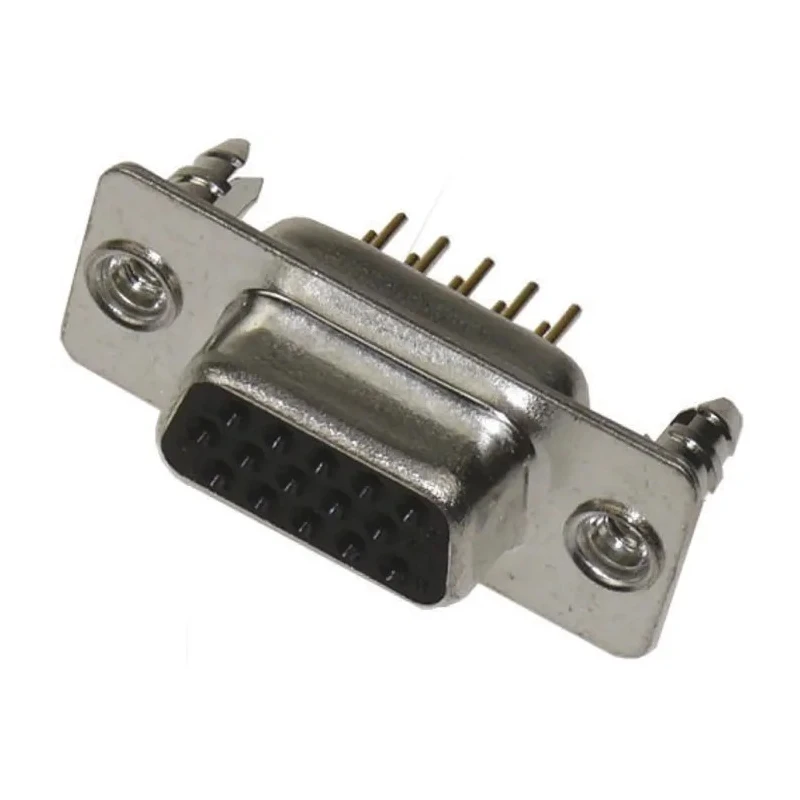

HARTING D-Sub 26 Way Straight 2.29 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Threaded Insert Female 09562517512

HARTING 09562517512 is a D-Sub 26 Way Straight Through Hole Connector featuring a 2.29 mm pitch, ideal for high-density electronic connections requiring reliable and secure mounting.

This female connector utilizes gold-plated copper alloy contacts housed within a robust steel shell that provides excellent mechanical strength and electromagnetic shielding. The shell size is DS-2, accommodating a compact form factor for space-limited designs.

Designed to mount via through-hole technique with 4 to 40 UNC threaded inserts, this connector is suitable for industrial, manufacturing, and electronic assembly applications where durability and precision matter.

The connector supports currents up to 2A and voltages up to 1kV, operating effectively in environments ranging from -55°C to 105°C. Its solder termination type ensures stable and long-lasting electrical connections.

This high-density connector increases contact capacity by approximately 70% over standard D-Sub connectors, making it advantageous for modern compact electronic devices and machinery.

The connector is manufactured in China, supplied new, and meets performance level 3 specifications, suitable for demanding industrial environments including laboratory instruments, manufacturing equipment, telecommunications, and computing hardware.

Features 26 contacts with 2.29 mm pitch for increased density. Steel housing for exceptional mechanical protection and shielding. Gold-plated copper alloy contacts for superior electrical conductivity and corrosion resistance.

Threaded 4 to 40 UNC inserts enhance mounting reliability. Designed for through hole solder termination ensuring durable connections. Operational temperature range from -55°C to 105°C for versatile environment tolerance.

Voltage rating of 1 kV and current rating of 2 A supports industrial power criteria. Female gender and straight orientation suited for board-level mounting. High density design offers 70% more contact capacity than standard D-Sub connectors.

New condition product manufactured in China adhering to industry standards. Explore a wide range of D-Sub Connectors and industrial electronic components at EnvMart to find the perfect fit for your electronic assemblies and manufacturing requirements.
