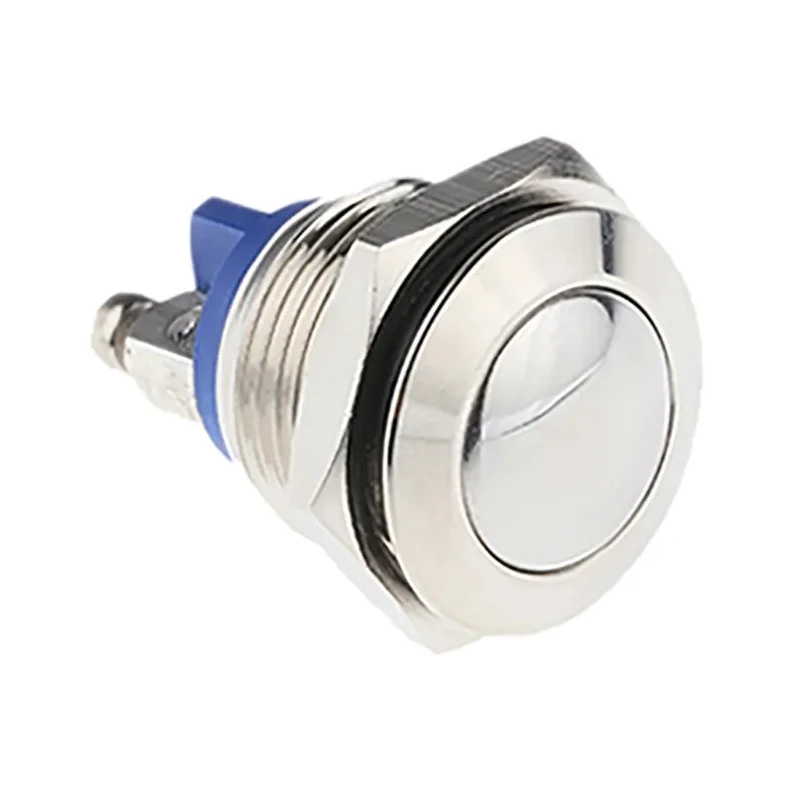

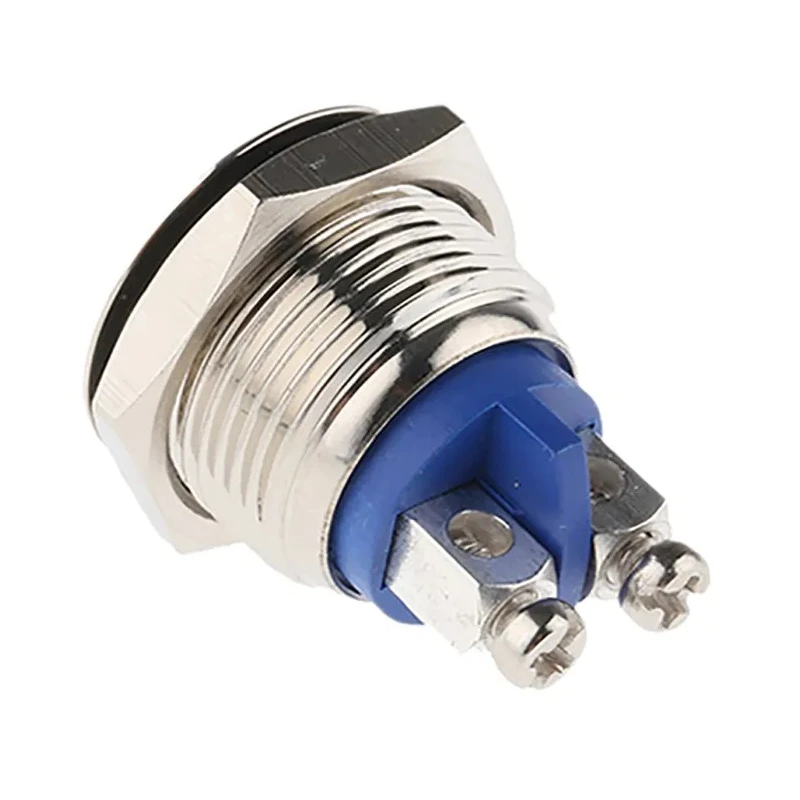

EOZ R Series Push Button Switch Momentary Panel Mount 16.2 mm Cutout SPST IP65 48 V dc 250 V ac R16DFNSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R16DFNSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver domed actuator button with a nickel-plated brass body for corrosion resistance.
- It operates momentarily, making contact only when pressed, and returns to the off position on release.
- The switch accommodates contact voltages up to 48 V dc and 250 V ac with a contact current rating of 2 A.
- It has screw terminal connections ensuring secure mounting and easy installation.
- Designed for high durability, it is shock resistant to IK08 standards and sealed to IP65 standards.
- The operating temperature range is from -20°C to 55°C, suitable for various industrial environments.
- This non-illuminated push button is anti-vandal, ideal for exposed or harsh usage conditions.
- Applications include access control systems, factory machinery, public kiosks, vending machines, and other industrial and commercial equipment.
Product Description
EOZ R16DFNSTAG is a high-quality push button switch from the R Series, designed for momentary operation in panel mounting with a 16.2 mm cutout. It features a silver domed button actuator and a nickel-plated brass construction that effectively prevents corrosion, enhancing longevity in challenging environments.
This push button switch is SPST configured and provides reliable electrical performance with contact voltage ratings of 48 V dc and 250 V ac, supporting a switch contact current of 2 A. The switch is momentary, making contact only while pressed, and returning automatically when released, ensuring precise control.
The robust design includes screw terminals for secure electrical connections and an IP65 rating, guaranteeing protection against dust ingress and low-pressure water jets. Its IK08 shock resistance rating certifies protection against mechanical impacts up to 5 joules, equivalent to a 1.7 kg mass dropped from about 300 mm, making it ideal for anti-vandal applications.
It operates reliably across an industrial temperature range from -20°C to 55°C, suitable for varied environments. The switch is non-illuminated and designed for long service life, supporting use in exposed public areas such as ticketing machines, kiosks, vending machines, as well as machinery and factory equipment.
The nickel-plated brass body offers enhanced corrosion resistance and durability. The silver dome-shaped actuator provides user-friendly tactile feedback. Panel mounting with a 16.2 mm cutout enables easy integration. Screw terminal connections allow for sturdy and dependable wiring.
IP65 and IK08 ratings provide excellent protection against dust, water, and physical impact. Momentary SPST configuration suits precise control applications. Wide operating temperature range supports industrial usage. Non-illuminated design ensures simplicity and reliability in control circuits.
This product is a reliable and durable solution for push button switching needs across industrial, commercial, and public service sectors. It fits applications requiring vandal resistance and environmental sealing, ensuring safety and longevity.
Explore more from EOZ and other high-quality Push Button Switches and related components in EnvMart's extensive catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports contact voltages of up to 48 V dc and 250 V ac.
The switch has a contact current rating of 2 A.
It is designed for panel mounting with a cutout size of 16.2 mm.
This switch has an IP65 rating, providing protection against dust and low-pressure water jets.
It operates reliably within a temperature range of -20°C to 55°C.
This unit features a momentary SPST (Single Pole Single Throw) configuration.
It features a nickel-plated brass body for corrosion resistance and a silver domed actuator button.
The switch has screw terminal connections for secure and easy installation.
It is rated IK08 for shock resistance, protecting against mechanical impacts up to 5 joules.
It is suitable for access control systems, factory machinery, public kiosks, vending machines, and other industrial equipment.
This model complies with RoHS standards for hazardous substances.
The country of origin for this switch is France.
