JST EL Series Female Crimp Terminal for EL Connector Housing 5A Current 26AWG to 20AWG LLF-01T-1.3E

Free Delivery in India | Lowest Global Shipping Charges

JST EL Series Female Crimp Terminal for EL Connector Housing 5A Current 26AWG to 20AWG LLF-01T-1.3E



Category Electronic Components Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Current	5A
Length	17.7mm
Model	LLF-01T-1.3E
Gender	Female
Contact Material	Phosphor Bronze
Series	EL
Termination Type	Crimp
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-25°C
For Use With	EL Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed with phosphor bronze and tin plating for reliable electrical contact.
Durable crimp termination ensuring secure and stable connections.
Operates effectively between -25°C and 90°C temperature range.
Compact 17.7mm length suitable for tight PCB connector assemblies.
Designed for easy insertion and durability with a locking arm mechanism.
Compatible with JST EL series connectors for consistent mating performance.

Product Description

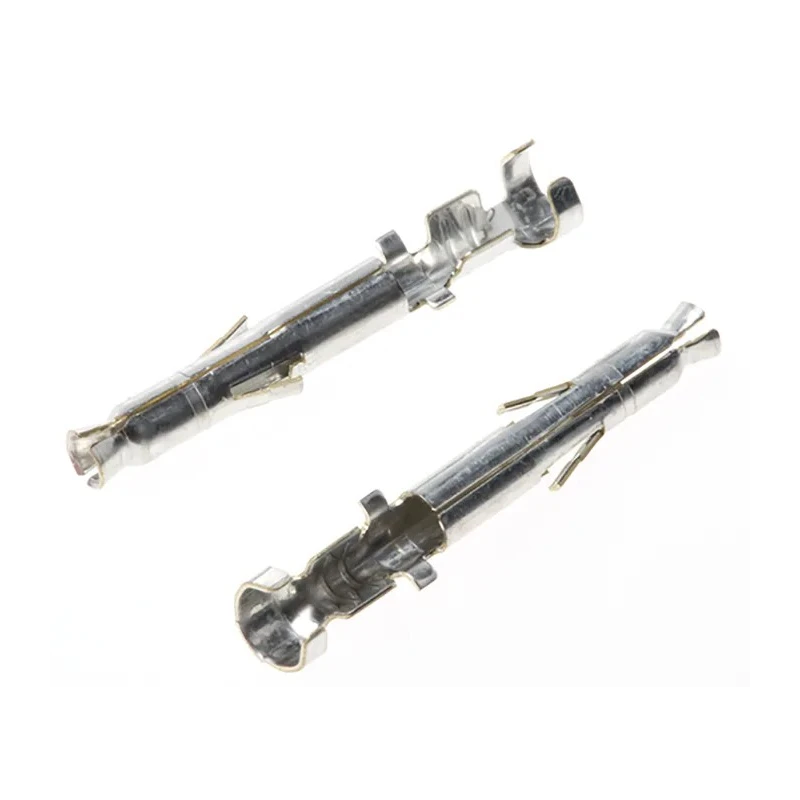

The JST LLF-01T-1.3E female crimp terminal from the EL series is engineered for use with EL connector housings, offering a secure and efficient crimping solution for a variety of electronic applications.

With a current rating of 5 amperes, this terminal supports wire gauges ranging from 26 AWG (0.1 mm² minimum) to 20 AWG (0.5 mm² maximum), accommodating a range of wiring requirements in electrical circuits.

Constructed of phosphor bronze with a tin plating, the terminal provides excellent conductivity coupled with corrosion resistance, ensuring longevity and stable connections over prolonged use.

The crimp termination type ensures a dependable mechanical and electrical bond, and the design incorporates a durable arm lock mechanism that maintains consistent contact even when the connectors are subject to mechanical stress during mating.

The terminal operates reliably within temperatures from -25°C up to 90°C, making it suitable for varied industrial and commercial environments including electronic manufacturing, industrial automation, and PCB assembly.

Measuring 17.7 mm in length, it fits compact and space-constrained connector housings commonly used in electronics and power connectors. Phosphor bronze material with tin plating enhances conductivity and corrosion resistance.

Supports wire sizes from 26 AWG to 20 AWG for versatile usage. Rated for 5A current suitable for numerous electronic applications. Robust crimp termination and locking arm mechanism ensure secure connections. Works under a temperature range spanning -25°C to 90°C.

This product is manufactured in Japan and conforms to JST’s high standards of quality and reliability.

Ideal for use in Electronic Components manufacturing, power connectors, industrial automation, and other sectors requiring precise and durable crimp contacts. Browse the Electronics Components category for similar JST connector solutions at EnvMart.
