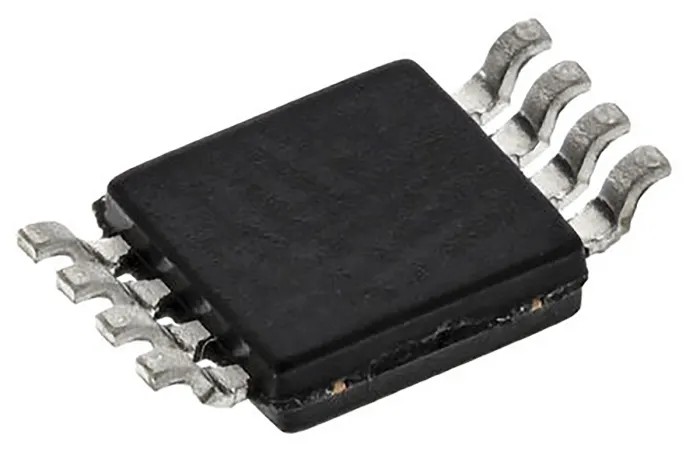

STMicroelectronics Digital Output Digital Temperature Sensor Surface Mount Serial-I2C SMBus ±3°C 8-Pin MSOP STLM75DS2F
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±3°C |
| Brand | STMicroelectronics |
| Height | 850μm |
| Length | 3mm |
| Model | STLM75DS2F |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Digital |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | Serial-I2C, SMBus |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features a temperature range from -55°C to +125°C for versatile industrial applications.
- Operates on a supply voltage between 2.7 V and 5.5 V for low power consumption.
- Provides ±3°C accuracy ensuring reliable temperature monitoring.
- Compact 8-pin MSOP package measuring 3 mm by 3 mm by 0.85 mm suitable for surface mount assembly.
- Includes a shutdown mode for power saving during inactive periods.
- Designed with CMOS technology integrating on-chip band gap temperature sensor and ADC.
- Typical applications include PCs, industrial controllers, electronic equipment, and thermal management systems.
- Operating current of 125 μA balances performance with low energy usage.
Product Description
STMicroelectronics STLM75DS2F is a digital temperature sensor designed to provide accurate temperature monitoring with digital output. It features an I²C serial interface compatible with SMBus, supporting precise temperature sensing between -55°C and +125°C. The device operates within a 2.7 V to 5.5 V voltage range drawing an operating current of 125 μA, with a low-power shutdown mode available to minimize power consumption when inactive.
The sensor integrates a CMOS band gap temperature sensor and ADC, converting temperature readings into digital signals for seamless integration with industrial and electronic control systems. Its compact 8-pin MSOP surface-mount package (3 mm by 3 mm by 0.85 mm) allows easy PCB integration in space-limited applications.
Typical uses span across personal computers, industrial controllers, electronic devices, and various thermal management applications requiring temperature accuracy within ±3°C. The sensor’s robust operating temperature range and low voltage supply demand make it suitable for demanding industrial environments.
Digital temperature sensing with I²C/SMBus interface. Wide temperature range from -55°C to +125°C. ±3°C accuracy over operating range. Low operating current of 125 μA with shutdown capabilities. Surface mount 8-pin MSOP package.
Applications include industrial, computing, and electronics thermal control.
This STMicroelectronics digital temperature sensor STLM75DS2F is an essential component for designers seeking reliable, low-power temperature monitoring solutions for industrial, laboratory, and commercial electronics. Explore more Temperature Sensor products and components in EnvMart’s comprehensive catalog for engineering and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STLM75DS2F sensor operates within a temperature range of -55°C to +125°C, making it suitable for various industrial applications.
This model provides an accuracy of ±3°C over its operating range, ensuring reliable temperature monitoring.
It features a digital output, which allows for easy integration with digital control systems.
The sensor operates on a supply voltage between 2.7 V and 5.5 V, allowing for low power consumption.
The operating current for this model is 125 μA, which balances performance with energy efficiency.
This temperature sensor is housed in a compact 8-pin MSOP package measuring 3 mm by 3 mm by 0.85 mm.
The STLM75DS2F supports a Serial-I2C interface and is compatible with SMBus, facilitating easy integration into existing systems.
Yes, it includes a shutdown mode that helps save power during inactive periods, enhancing energy efficiency.
Typical applications include personal computers, industrial controllers, electronic devices, and thermal management systems.
The sensor is designed for surface mount assembly, making it suitable for compact PCB designs.
The STLM75DS2F sensor is manufactured in India.
It integrates seamlessly with industrial and electronic control systems due to its digital output and I²C/SMBus interface.
