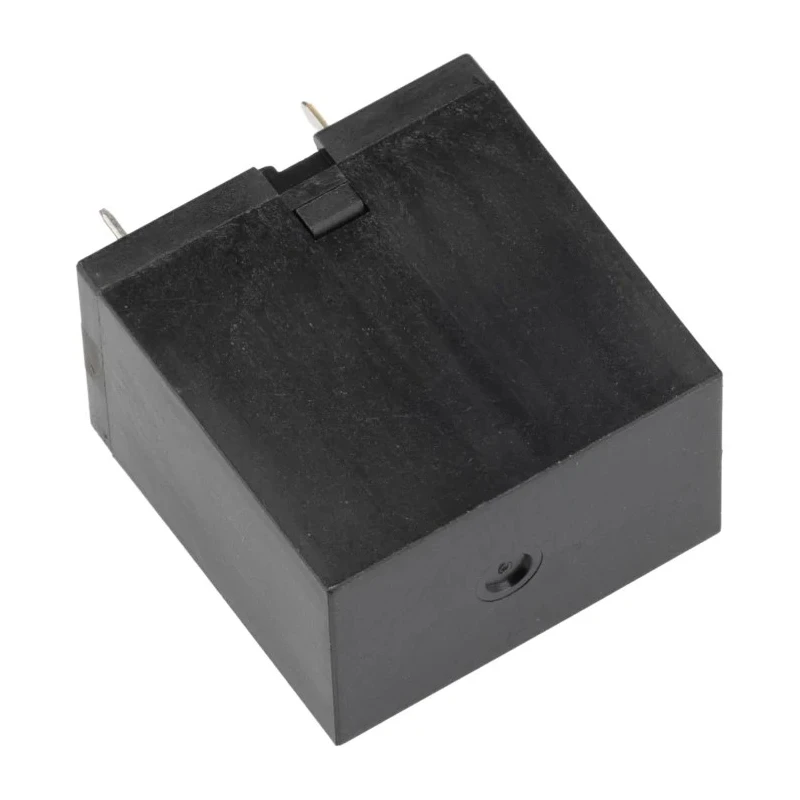

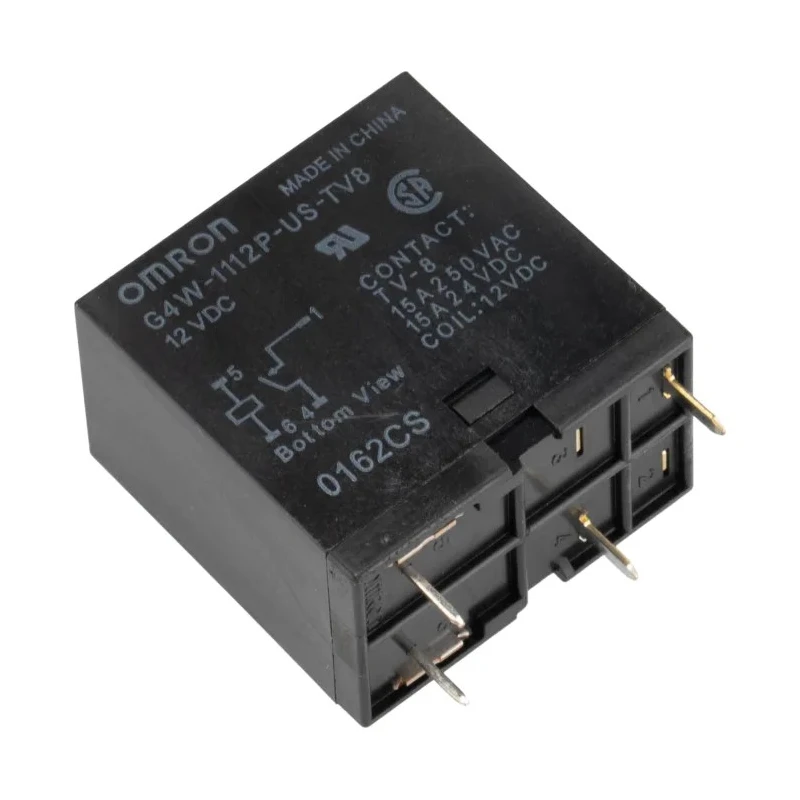

Omron PCB Power Relay 12V DC Coil 15A Switching Current SPST G4W-1112P-US-TV8 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 30.5mm |
| Length | 30.5mm |
| Model | G4W-1112P-US-TV8 DC12 |
| Width | 19.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4W |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | CSA, VDE, UL, RoHS |
| Coil Resistance | 180Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.8W |
Key Features
- Features SPST contact configuration suitable for single pole single throw switching.
- Operates efficiently with low coil power consumption of 0.8W.
- Capable of switching up to 250V AC or 24V DC voltages.
- Compact dimensions with 30.5mm height, length and 19.5mm width enabling easy PCB integration.
- Constructed with silver alloy contact material for durability.
- Designed to operate within temperature range -25°C to 55°C.
- Includes solder terminal type for secure electrical connections.
- Series G4W ensures impulse withstand voltage of 10,000V between coil and contact.
Product Description
Omron G4W-1112P-US-TV8 DC12 PCB Power Relay is a high-performance, compact relay designed for electronics and electrical applications requiring reliable switching with low power consumption.
Equipped with a 12V DC coil and capable of handling a switching current of 15A, this power relay features a single pole single throw (SPST) contact configuration ideal for simple on/off control in circuits.
The relay's construction utilizes silver alloy contact material ensuring long service life with stable electrical performance. Its dimensions of 30.5mm in height and length, and 19.5mm in width facilitate easy installation on printed circuit boards (PCBs).
Operating within a temperature range of -25°C to 55°C, it is suitable for a variety of industrial and commercial electronics, automation, and control systems including HVAC, manufacturing, and power management units.
With coil resistance of 180Ω and a coil power rating of just 0.8W, it is optimized for low power operation, reducing energy consumption in complex devices. The series G4W relay is robust with an impulse withstand voltage rating of 10,000V between coil and contact points ensuring reliability and safety in demanding environments.
This relay complies with international standards and holds approvals such as CSA, VDE, UL, and RoHS, confirming its quality and environmental compliance. Features SPST contact configuration suitable for single pole single throw switching.
Operates efficiently with low coil power consumption of 0.8W. Capable of switching up to 250V AC or 24V DC voltages. Compact dimensions with 30.5mm height, length and 19.5mm width enabling easy PCB integration. Constructed with silver alloy contact material for durability.
Designed to operate within temperature range -25°C to 55°C. Includes solder terminal type for secure electrical connections. Series G4W ensures impulse withstand voltage of 10,000V between coil and contact.
This Omron G4W-1112P-US-TV8 DC12 relay is ideal for applications in industrial control systems, automation, electrical panels, and PCB assemblies where precise, reliable switching is required.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 15A, making it suitable for various applications requiring reliable on/off control.
The relay operates with a coil voltage of 12V DC, which is essential for its activation.
It has compact dimensions of 30.5mm in height and length, and 19.5mm in width, allowing for easy integration into PCBs.
This model features a single pole single throw (SPST) contact configuration, ideal for simple switching applications.
It is designed to operate within a temperature range of -25°C to 55°C, making it versatile for various environments.
The relay can switch up to 250V AC and 24V DC, accommodating a wide range of electrical systems.
The contacts are constructed from silver alloy, which contributes to its reliability and performance.
It includes solder terminals, providing secure electrical connections during installation.
The coil resistance is 180Ω, which is relevant for understanding its power requirements.
It operates with a low coil power consumption of 0.8W, optimizing energy use in applications.
This relay holds approvals from CSA, VDE, UL, and RoHS, ensuring compliance with international safety and environmental standards.
The relay is part of the G4W series, which is known for its reliability and performance in various applications.
