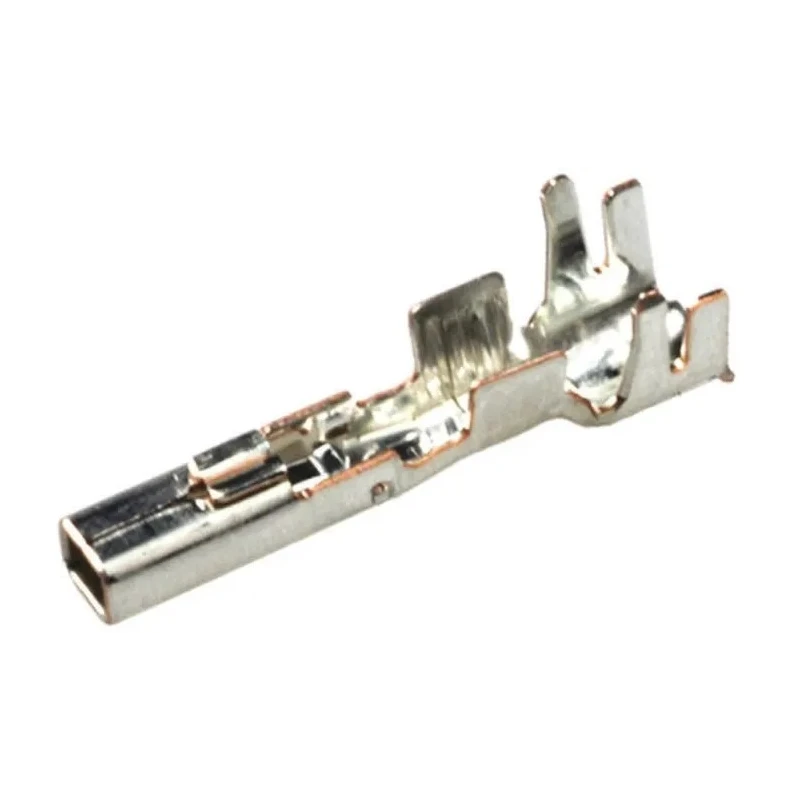

TE Connectivity Power Double Lock Series Female Crimp Terminal 14A, 20 AWG Min Crimp, 16 AWG Max 177915-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Model | 177915-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Power Double Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Power Double Lock Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- The terminal features tin plating over copper alloy contacts for durability.
- It supports a minimum wire size of 20 AWG (0.5 mm²) and a maximum wire size of 16 AWG (1.3 mm²).
- Maximum contact resistance is rated at 20 milliohms to ensure reliable connectivity.
- The operating temperature range is from -30°C minimum to 105°C maximum.
- Termination is by crimp, providing secure wire connection.
- Specifically designed to prevent half-way mating with a double lock plate.
- Suitable for use in power circuit applications including household appliances and automatic vending machines.
- Compact design ideal for wiring tasks in refrigerators, air conditioners, washing machines, and copying machines.
Product Description
TE Connectivity 177915-1 Power Double Lock Series Female Crimp Terminal is a high-quality connector component designed for power circuit applications. Rated at 14A current and suitable for wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.3 mm²), this terminal ensures reliable electrical connection in demanding industrial and commercial environments.
The contacts are made of copper alloy with tin plating, offering excellent conductivity and corrosion resistance. The reinforced double-lock mechanism prevents half-way contact engagement, enhancing connection security and durability.
This crimp terminal is engineered to operate safely within a broad temperature range from -30°C to 105°C, making it suitable for diverse applications including household appliances like refrigerators, air conditioners, washing machines, as well as vending machines and copying equipment. Its compact design facilitates easy installation and efficient wiring in constrained spaces.
The crimp termination ensures a robust connection with wires, improving production efficiency in automated assembly processes. This product is ideal for use in industrial, manufacturing, commercial electrical, and HVAC applications.
The terminal features tin-plated copper alloy contacts. Minimum wire size supported is 20 AWG (0.5 mm²), maximum is 16 AWG (1.3 mm²). Rated current is 14 amps with maximum contact resistance of 20 milliohms. Operating temperature range spans from -30°C up to 105°C.
Termination type is crimp for secure wire coupling. Double lock plate guards against incomplete mating of connectors. Compact form factor suits various electrical appliances and industrial equipment. Designed for use with Power Double Lock Connector Housing.
Explore the range of TE Connectivity Power Double Lock Series products for reliable electrical connections in multiple industrial and commercial sectors. Discover more solutions in Electronics Components on EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a current rating of 14A, making it suitable for various power circuit applications.
It supports a minimum wire size of 20 AWG (0.5 mm²) and a maximum wire size of 16 AWG (1.3 mm²).
The maximum contact resistance is rated at 20 milliohms, ensuring reliable connectivity.
The operating temperature range spans from -30°C to 105°C, allowing for use in diverse environments.
Termination is achieved by crimping, which provides a secure wire connection.
The contacts are made of copper alloy with tin plating, which offers excellent conductivity and corrosion resistance.
It is suitable for power circuit applications, including household appliances like refrigerators and air conditioners, as well as vending machines and copying machines.
This model features a reinforced double-lock mechanism that prevents half-way contact engagement, enhancing connection security.
Yes, it is designed for use with the Power Double Lock Connector Housing.
The terminal is manufactured in India.
The compact design facilitates easy installation and efficient wiring in constrained spaces, making it ideal for various electrical appliances.
This crimp terminal belongs to the Power Double Lock series from TE Connectivity.
