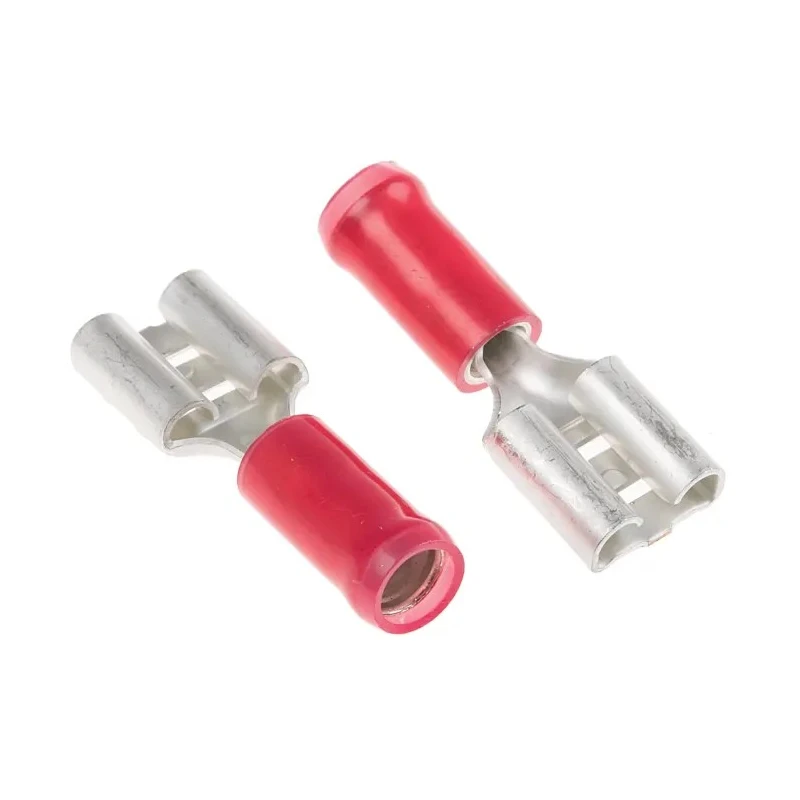

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 9-160583-5
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 22.2mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 15AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- High conductivity copper body for excellent electrical performance.
- Copper sleeve improves insulation support after crimping.
- Serrated wire barrel ensures maximum contact and tensile strength.
- Colour coded nylon insulation sleeve for easy wire size identification.
- Funnelled wire entry enables fast and easy wire insertion.
- Suitable for instruments, lighting, power supplies, panel boxes, and aerospace applications.
- Designed for uniform and reliable crimps with specialized tooling dies.
- Overall connector length of 22.2 mm for compact installation.
Product Description
TE Connectivity 9-160583-5 PIDG FASTON .250 Red Insulated Female Spade Connector is a crimp type terminal designed for reliable electrical connections in electronic and electrical systems. Featuring a 6.35 x 0.81 mm tab size, it supports wire sizes ranging from 22 AWG (0.3 mm²) up to 15 AWG (1.5 mm²). Manufactured with a phosphor bronze contact material plated with tin, and insulated with color-coded red nylon, this connector ensures durable and secure termination for wire harnesses, power supplies, control panels, and instrumentation.
The connector design incorporates a high conductivity copper body with a copper sleeve surrounding the barrel to provide enhanced insulation support after crimping. Serrations inside the wire barrel enhance electrical contact and mechanical strength, preventing wire strand fraying and conductor breakage. The funnelled wire entry aids quick wire insertion, making it suitable for high-speed automated production environments.
TE Connectivity's PIDG (Pre-Insulated Diamond Grip) FASTON receptacle terminals conform to rigorous industrial demands and are widely used in aerospace, automotive, control systems, lighting, motors, transportation, and appliance manufacturing. Although no formal approvals are listed, the terminals meet or exceed requirements for demanding applications.
Key design features include the color-coded nylon insulation for easy wiring identification and tooling compatibility, along with a straight orientation for simplified assembly. With an overall length of 22.2 mm, these red insulated female Spade Connectors offer a compact solution for reliable wire terminations.
Available from TE Connectivity with MPN 9-160583-5 and originating from Mexico, this terminal combines durability and performance for professional electrical assembly and maintenance needs.
High conductivity copper body for excellent electrical performance. Copper sleeve improves insulation support after crimping. Serrated wire barrel ensures maximum contact and tensile strength. Colour coded nylon insulation sleeve for easy wire size identification.
Funnelled wire entry enables fast and easy wire insertion. Suitable for instruments, lighting, power supplies, panel boxes, and aerospace applications. Designed for uniform and reliable crimps with specialized tooling dies.
Overall connector length of 22.2 mm for compact installation. Explore more quality electronic components and connectors from TE Connectivity and other leading brands at EnvMart to support your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 6.35 x 0.81 mm.
It supports wire sizes ranging from 22 AWG (0.3 mm²) up to 15 AWG (1.5 mm²).
The overall length of this connector is 22.2 mm.
The connector features a phosphor bronze contact material plated with tin and is insulated with color-coded red nylon.
This connector uses a crimp termination type.
Yes, the funnelled wire entry aids quick wire insertion, making it suitable for high-speed automated production environments.
The insulation material used is nylon.
It is suitable for instruments, lighting, power supplies, panel boxes, and aerospace applications.
This connector is a female type.
The orientation of this connector is straight.
This connector is manufactured in Mexico.
The serrated wire barrel ensures maximum contact and tensile strength, preventing wire strand fraying and conductor breakage.
