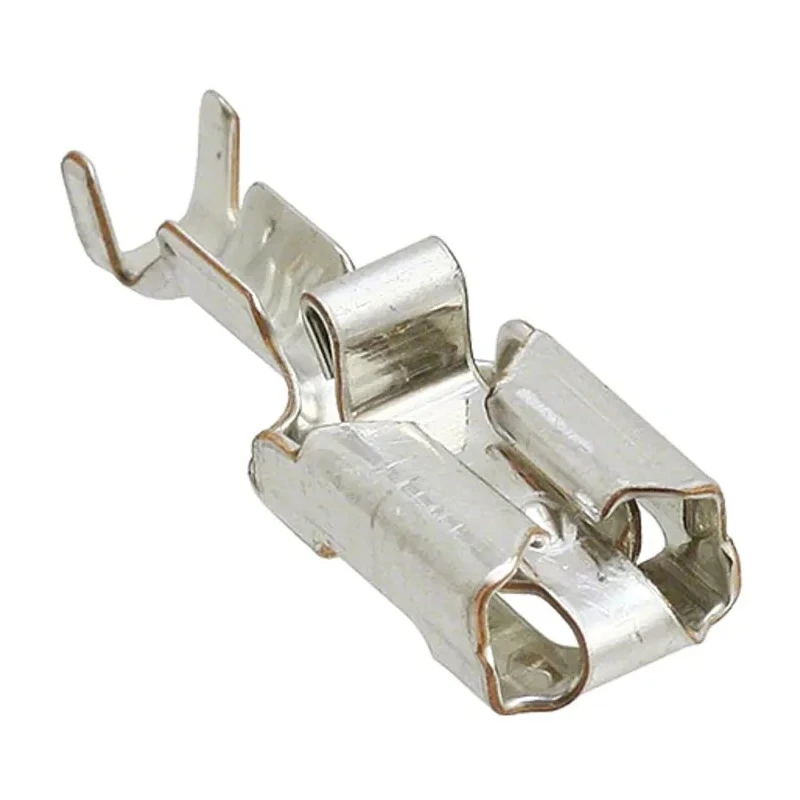

TE Connectivity Positive Lock .250 Mk I Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 160773-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 160773-6 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 22.9mm |
| Contact Material | Brass |
| Series | Positive Lock .250 Mk I |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 15AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Suitable for wire sizes ranging from 20 AWG to 15 AWG.
- Made with brass contact material plated with tin for enhanced conductivity and corrosion resistance.
- Uninsulated and straight orientation for versatile application.
- Overall length of 22.9 mm ensures easy handling and connection.
- Part of the Positive Lock .250 Mk I series for snap action locking and reduced insertion force.
- Designed for secure mechanical snap lock retention on mating tab terminals.
- Ideal for use in electronic components, power connections, and spade terminal applications.
- Color-coded black for easy identification and compatibility.
Product Description
TE Connectivity 160773-6 Positive Lock .250 Mk I Black Uninsulated Female Spade Connector features a crimp termination type with a tab size of 6.35 x 0.81 mm, making it suitable for wire sizes between 20 AWG and 15 AWG. This connector employs brass contact material plated with tin, ensuring excellent electrical conductivity and resistance to corrosion. The uninsulated straight design allows for versatile usage in various electronic and power connector applications.
Part of the Mk I 250 Series, this Positive Lock connector utilizes a reduced insertion force and snap action locking mechanism that securely locks onto mating tab terminals with holes or dimples, preventing accidental disconnections. The connector's overall length of 22.9 mm provides convenient handling and durable mechanical retention.
These connectors are widely used in industrial, electronic, power distribution, and wiring harness manufacturing environments where secure and reliable connections are critical. The black color coding helps with easy cable identification and application consistency.
Wire size compatibility ranges from 20 AWG to 15 AWG for flexibility. Brass contact material with tin plating enhances performance and durability. Uninsulated and straight orientation suitable for many electrical assemblies.
Positive Lock .250 Mk I series known for reduced insertion force and secure snap lock action. Compact overall length of 22.9 mm for ease of installation. Widely applicable in electronics, power connectors, and spade connector assemblies.
Black color for identification and industry standard conformity.
The TE Connectivity Positive Lock Spade Connector is a trusted component in electronic and electrical engineering, ensuring reliable terminations for wire-to-wire and wire-to-tab connections. Its robust design and advanced locking system contribute to safer and more dependable electrical installations.
Explore EnvMart's extensive range of TE Connectivity connectors and related accessories to support your electronic and industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 20 AWG to 15 AWG, allowing for flexibility in various applications.
The overall length of this connector is 22.9 mm, which facilitates easy handling and connection.
It features brass contact material plated with tin, enhancing electrical conductivity and corrosion resistance.
This unit employs a crimp termination type, suitable for secure connections in various applications.
The tab size for this model is 6.35 x 0.81 mm, designed for compatibility with corresponding tab terminals.
This connector is uninsulated, allowing for versatile usage in different electrical assemblies.
The orientation of this model is straight, which is suitable for various installation scenarios.
It is part of the Positive Lock .250 Mk I series, known for its snap action locking mechanism.
The connector is black in color, which aids in easy identification and application consistency in wiring.
This model is widely used in electronic components, power connections, and spade terminal applications.
This connector is a female type, designed to mate with corresponding male connectors.
The country of origin for this connector is India, indicating its manufacturing location.
