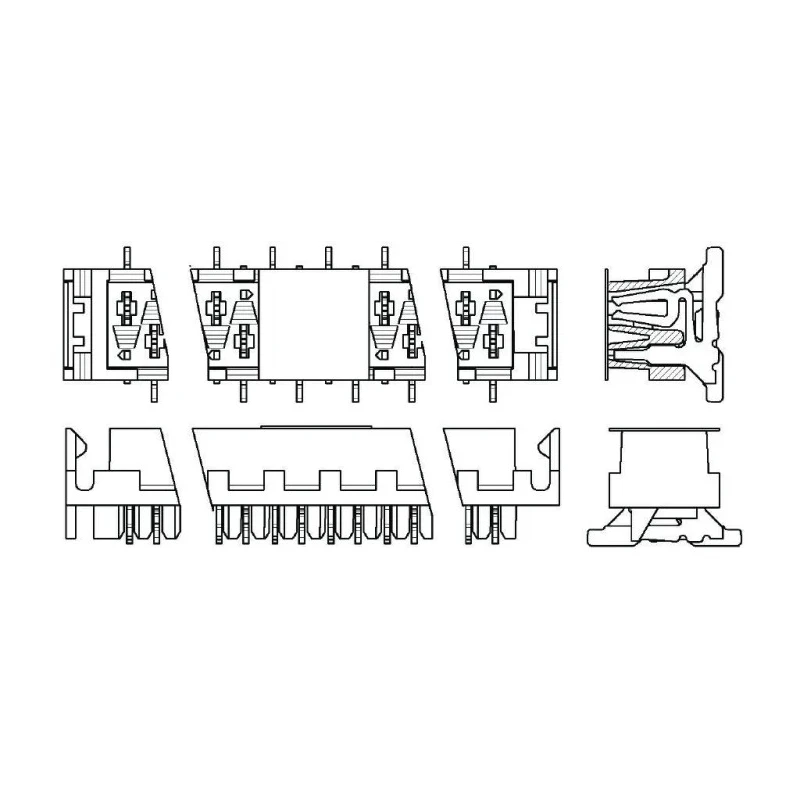

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch Solder 7-338069-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch Solder 7-338069-4

Name: TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch Solder 7-338069-4
Brand: TE Connectivity
SKU: 126184
Price: 1.26 USD
Availability: InStock



Category PCB Socket Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Bronze
Series	Micro-MaTch
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Female-On-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Female
Connector System	Board-to-Board

Key Features

The connector features a compact, space-saving design suitable for high-density PCB applications.
Contacts are fully tin plated and made of bronze for enhanced durability and conductivity.
The spring contact system prevents fretting corrosion and ensures gas-tight connections.
The socket is polarized to prevent mismating and features locking latches for secure mating.
Supports a rated current of 1.5 A and voltage of 100 V with a temperature range from -40°C to 105°C.
Housing is made from polyamide, designed for surface mount applications with a straight orientation.
Uses solder termination type ensuring reliable mechanical and electrical connections.
Ideal for use in industrial electronic equipment, robots, control units, audio equipment, and communication systems.

Product Description

TE Connectivity 7-338069-4 Micro-MaTch Series Straight Surface PCB Socket is a precision-engineered female-on-board SMT socket designed for board-to-board and wire-to-board interconnections. Featuring 4 contacts arranged in 2 rows with a 2.54 mm pitch, this connector ensures a compact and space-efficient solution for modern electronic assemblies.

The connector’s bronze contact material with tin plating provides excellent conductivity and mechanical strength. The innovative contact spring system prevents fretting corrosion by maintaining a gas-tight connection even under vibration and thermal expansion, enhancing long-term reliability. The polarized design prevents incorrect mating, while locking latches offer secure and stable mechanical engagement.

Rated at 1.5 A current and 100 V voltage, with operating temperatures from -40°C to 105°C, this PCB Socket is suitable for demanding industrial, laboratory, and commercial applications including production machinery, robots, control and dashboard units, navigation systems, audio devices, and base stations.

The polyamide housing material ensures durability and performance on surface mount boards, making it highly suitable for automated assembly processes. The connector supports tight pitch spacing and high contact reliability for miniature PCB designs.

Its robust design resists vibration and thermal cycling common in industrial environments. Locking latches secure mating in high-vibration applications to prevent disconnections. The socket’s design facilitates easy assembly and maintenance.

Applications span across automotive electronics, communication equipment, and consumer electronics. For comprehensive solutions in PCB connectivity, explore the TE Connectivity range on EnvMart for reliable and industry proven components.
