| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170360-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

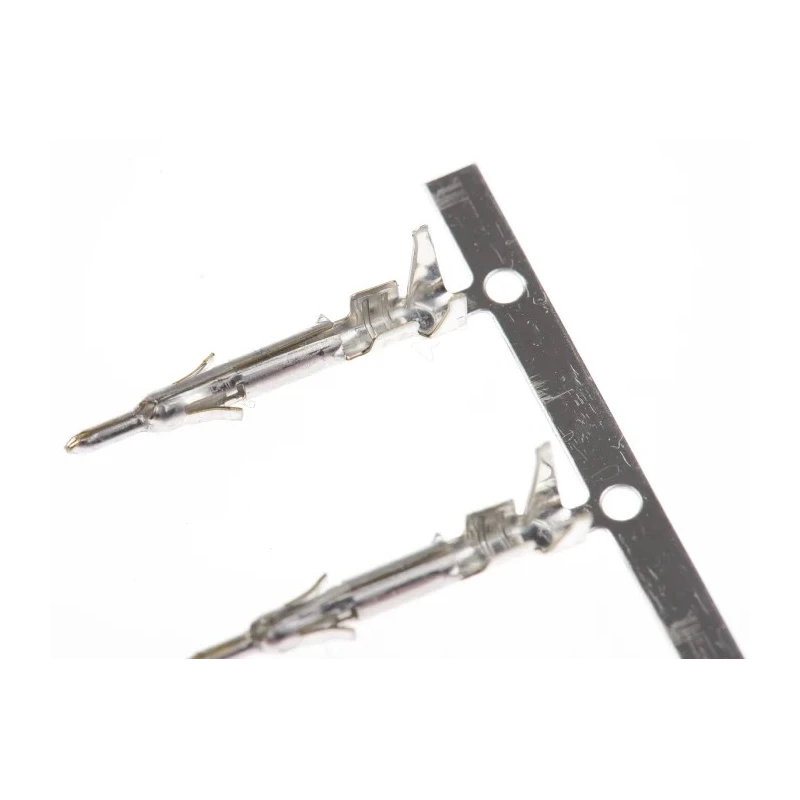

TE Connectivity 170360-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a precision engineered connector component designed for robust and reliable electronic connections. It supports a current rating of 7 amperes and accommodates wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.8 mm²). The connector comprises brass contact material with tin plating to provide excellent conductivity and corrosion resistance, making it an ideal choice in demanding electrical applications.
This male crimp terminal is intended for use with Mini-Universal MATE-N-LOK connector housings, simplifying wiring tasks and ensuring secure contact retention. The termination type is crimp, facilitating a reliable mechanical and electrical connection fit for various industrial, commercial, and electronic assembly applications.
The connector maintains operational integrity across a temperature range from -20°C to 105°C, suitable for typical ambient and harsh environments. It features a maximum contact resistance of 10 milliohms, underpinning its efficiency for signal and power transmission. The terminal does not carry any specific standards or certifications but is designed to meet rigorous performance requirements.
These crimp terminals are well-suited for industrial machinery control systems, electronic equipment assemblies, and power connectors in commercial electrical panels. They contribute to enhanced production efficiency by being supplied on reels, ready for automated insertion processes in manufacturing environments.
Constructed with brass contact material for durability. Contact plating is tin to ensure reliable conductivity. Suitable for Mini-Universal MATE-N-LOK connector housing use. Designed for crimp termination ensuring secure connections.
Operates reliably between -20°C and 105°C temperature range. Maximum contact resistance of 10 milliohms for efficient signal transmission. Supports wire sizes from 0.3 mm² (22 AWG) to 0.8 mm² (18 AWG).
Explore the extensive range of TE Connectivity products for electronic components and Connectors on EnvMart to optimize your industrial assembly and electrical system requirements.
