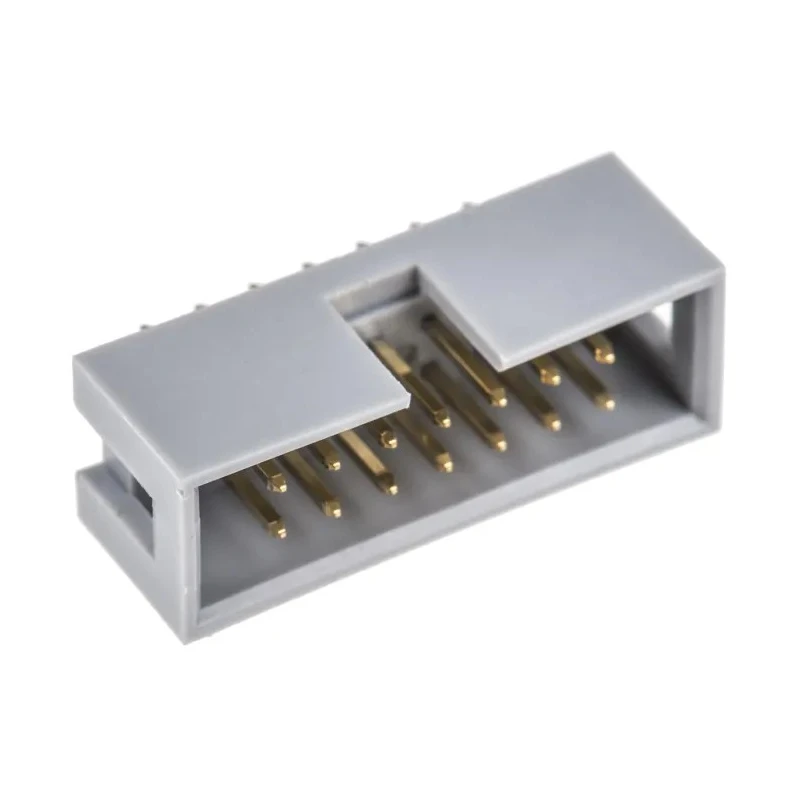

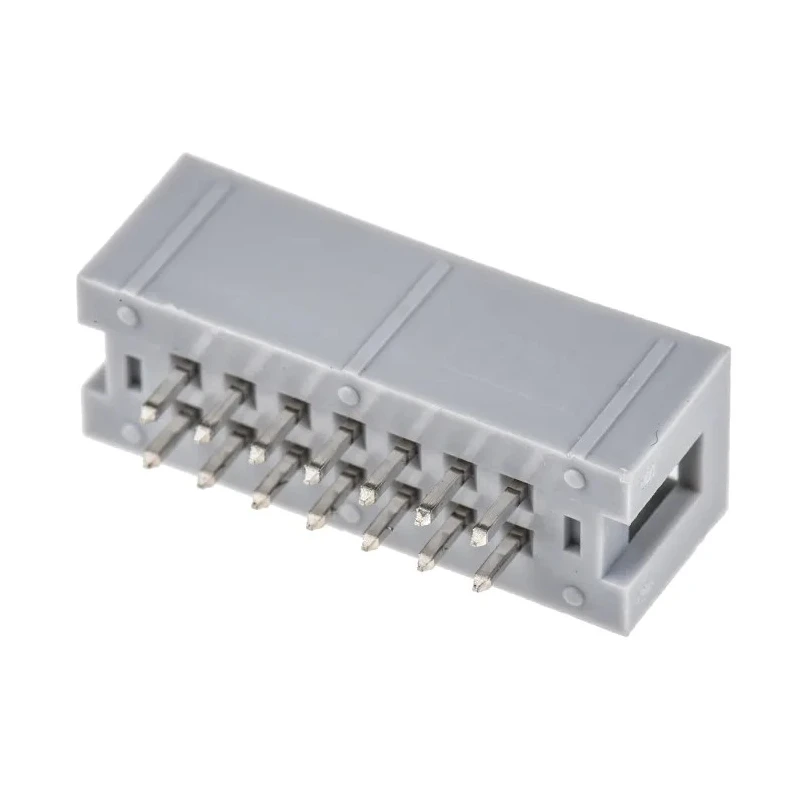

ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded AWHW 14G-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AWHW 14G-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWHW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Offers reliable wire-to-board connection with through hole mount type.
- Constructed with brass contact material for excellent conductivity.
- Contact plating includes gold and nickel for corrosion resistance.
- Supports 3A current and 250V voltage for robust PCB connectivity.
- Housing made of durable Polybutylene Terephthalate for thermal stability.
- Operates safely between -40°C and 105°C temperature range.
- Features a male contact gender with solder termination type for secure assembly.
- Complies with RoHS standards ensuring environmental safety.
Product Description
ASSMANN WSW AWHW 14G-0202-T is a high-quality straight through hole PCB header designed with 14 contacts arranged in 2 rows. It features a 2.54 mm pitch and a shrouded housing, optimized for wire-to-board connections in electronic assemblies.
The header is constructed with brass contacts plated with gold and nickel to ensure reliable electrical performance and resistance to corrosion. The housing is made from Polybutylene Terephthalate, providing mechanical strength and stability over a wide temperature range from -40°C to 105°C.
This PCB header supports a maximum current of 3A and voltage rating of 250V, making it suitable for a variety of electronic and industrial applications. Its solder termination and male contact gender facilitate secure mounting and stable circuit board integration.
Compliant with RoHS directives, this connector promotes environmentally friendly manufacturing processes. Typical applications include industrial electronics, communication devices, and control systems, where dependable and precise PCB connections are critical.
Reliable wire-to-board connection with through hole mounting. Brass contact material ensures excellent conductivity. Gold and nickel plating resist corrosion and enhance durability. Supports up to 3A current and 250V operating voltage.
Durable Polybutylene Terephthalate housing for thermal stability. Wide operating temperature range from -40°C to 105°C. Male gender contacts with solder termination for secure assembly. Complies with RoHS for environmental safety.
Explore our extensive range of PCB Headers and related components on EnvMart for reliable electronics manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A and a voltage rating of 250V, making it suitable for various electronic applications.
The header features a 2.54 mm pitch with 14 contacts arranged in 2 rows, optimized for wire-to-board connections.
It is constructed with brass contact material for excellent conductivity, and the housing is made from Polybutylene Terephthalate for thermal stability.
This unit features a solder termination type, which facilitates secure assembly on the PCB.
It operates safely within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing processes.
This model features male contacts, which are designed for secure connections in electronic assemblies.
The orientation of this header is straight, designed for through hole mounting.
The contacts are plated with gold and nickel, which provide corrosion resistance and enhance the durability of the connections.
It utilizes a wire-to-board connector system, which is essential for establishing reliable connections in electronic circuits.
The country of origin for this model is China.
Typical applications include industrial electronics, communication devices, and control systems where dependable PCB connections are critical.
