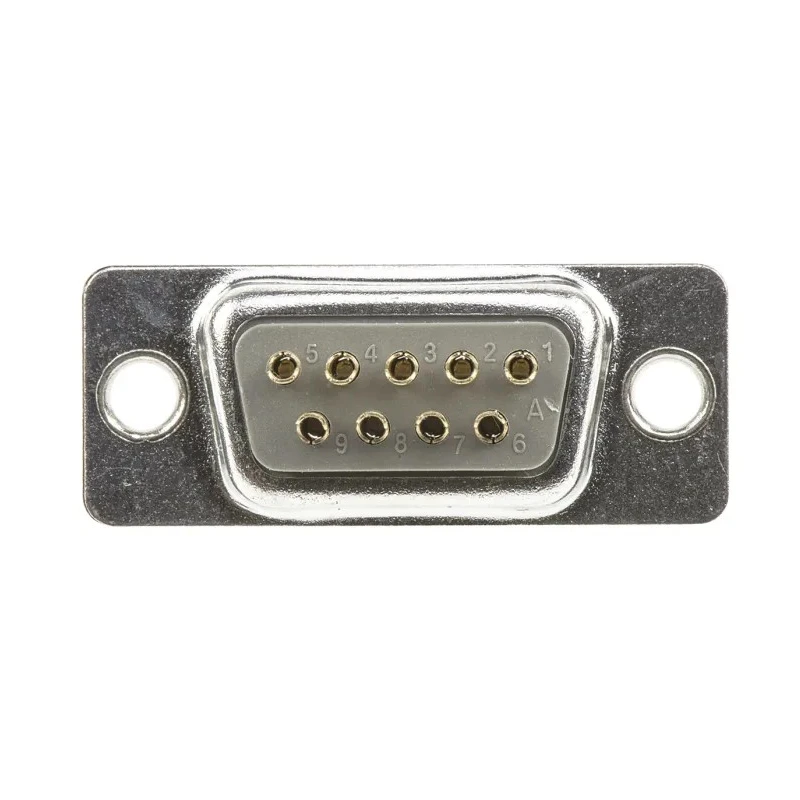

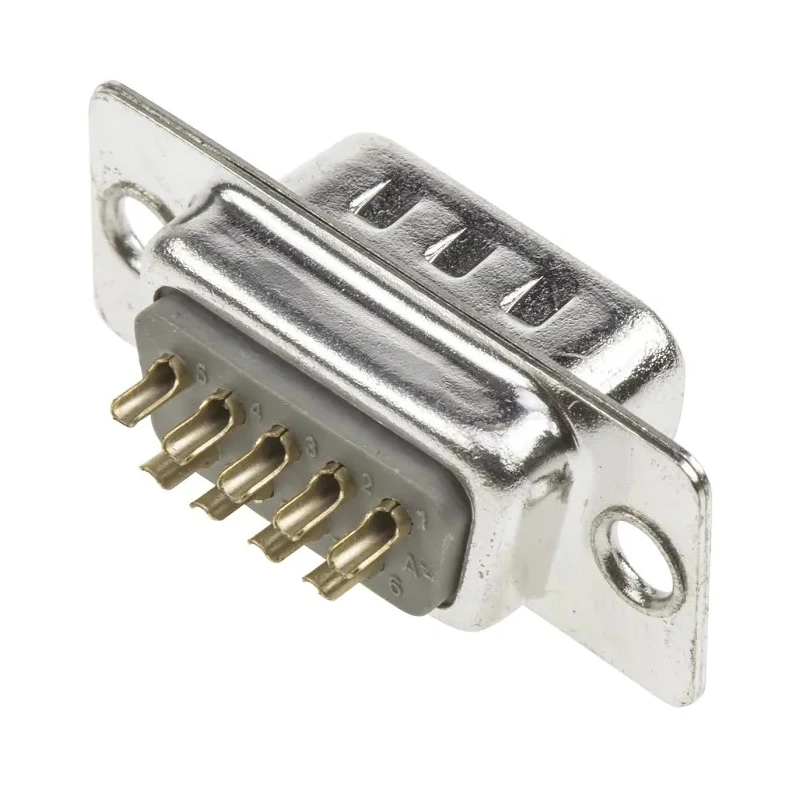

ASSMANN WSW 9 Way Straight Panel Mount D-Sub Connector Metal Housing Brass Contact Gold Plating 500V 3A A-DS 09 LL/G
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | A-DS 09 LL/G |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | A-DS |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Features a straight orientation suitable for panel mounting.
- Constructed with durable metal housing and brass contacts for reliable electrical connection.
- Contact plating includes high-quality gold for enhanced conductivity and corrosion resistance.
- Supports a rated voltage of 500V and current of 3 amperes.
- Operates reliably in extreme temperatures from -55°C to 105°C.
- Termination type is solder for robust and secure connections.
- Compliant with the A-DS series specifications ensuring standard performance.
- Designed with 9 contacts to accommodate multiple circuit connections.
Product Description
ASSMANN WSW A-DS 09 LL/G is a 9 Way Straight Panel Mount D-Sub Connector designed for electronic and power connector applications. It features a robust metal housing paired with brass contacts that are plated with gold to provide excellent conductivity and resistance to wear and corrosion. This connector supports a voltage rating up to 500V and a current rating of 3A, making it suitable for reliable signal and power transmission in demanding environments.
The connector is designed with a straight orientation for panel mount installation, featuring mounting flanges with 3.05mm holes for secure attachment. Its contact gender is male, and the termination type is solder, providing stable and durable connections in electronic assemblies. The connector is part of the A-DS series, complying with series standards for quality and compatibility.
Operating temperature ranges from a minimum of -55°C to a maximum of 105°C, ensuring reliable performance across varied industrial and electronic applications. The D-Sub shell size is E, a common size for compact and efficient connector configurations.
Constructed with a glass-filled thermoplastic PBT UL94V-0 insulator, the connector exhibits excellent insulation properties and flame retardance. Typical use cases include industrial machinery, laboratory equipment, telecommunications, computer interfaces, and power distribution equipment.
Features a straight orientation suitable for panel mounting. Constructed with durable metal housing and brass contacts for reliable electrical connection. Contact plating includes high-quality gold for enhanced conductivity and corrosion resistance.
Supports a rated voltage of 500V and current of 3 amperes. Operates reliably in extreme temperatures from -55°C to 105°C. Termination type is solder for robust and secure connections. Compliant with the A-DS series specifications ensuring standard performance.
Designed with 9 contacts to accommodate multiple circuit connections.
This ASSMANN WSW D-Sub Connector offers dependable performance for various industrial, electronic, and power connector applications requiring a 9-contact panel mount interface. Browse our Electronics & Electricals Connectors category for related parts and compatible accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a voltage rating of 500V and a current rating of 3A.
The termination type for this connector is solder, providing stable and durable connections.
It operates reliably in temperatures ranging from -55°C to 105°C.
This model is designed with 9 contacts to accommodate multiple circuit connections.
The connector features a metal housing and brass contacts, with gold plating for enhanced conductivity and corrosion resistance.
It has a straight orientation suitable for panel mounting.
The D-Sub shell size for this connector is E, which is common for compact connector configurations.
The contact gender of this model is male.
Yes, it is compliant with the A-DS series specifications, ensuring standard performance and compatibility.
Typical use cases include industrial machinery, laboratory equipment, telecommunications, computer interfaces, and power distribution equipment.
The country of origin for this connector is China.
It provides reliable electrical connections suitable for signal and power transmission in demanding environments.
