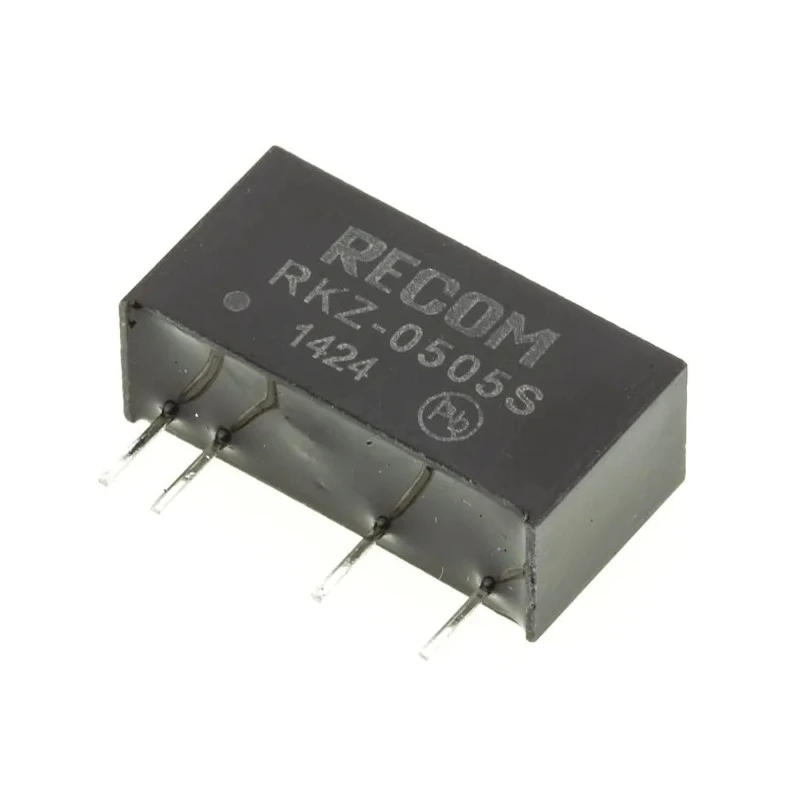

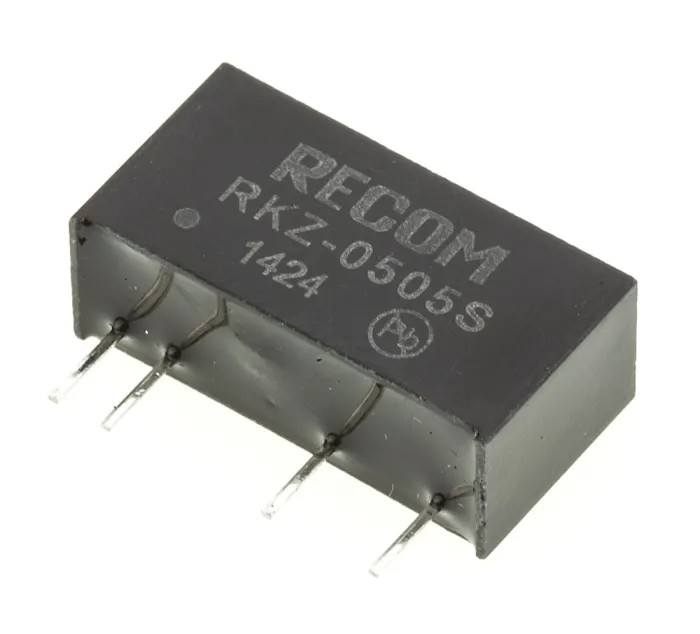

Recom DC/DC Converter 5V DC Output 400 mA 5V DC Input 4.5V Input 2W Through Hole RKZ-0505S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RKZ DC/DC Converter, 5V dc/ 400 mA, 5V dc In |
| Brand | Recom |
| Efficiency | 84% |

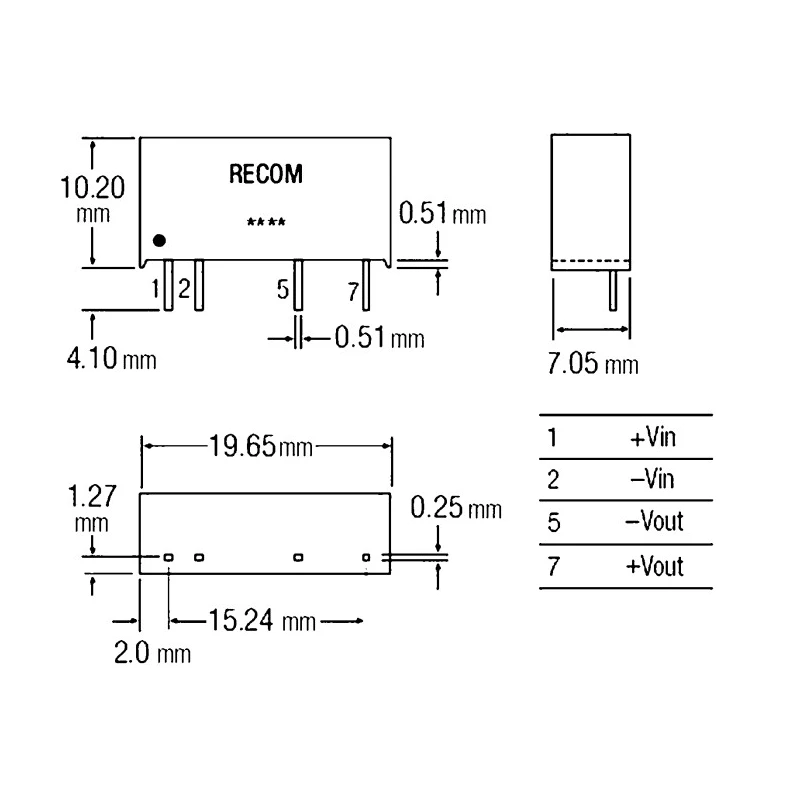

| Length | 19.65mm |
| Model | RKZ-0505S |
| Depth | 10.2mm |
| Gross Weight | 2.8g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | RKZ |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 135000h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | UL, IEC, CSA |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 3kV dc |
Key Features
- High isolation voltage of 3kV DC ensures reliable operation.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- Efficiency of approximately 84% optimizes energy usage.
- Compact SIP package with 4 pins and 10.2mm dimensions facilitates PCB integration.
- Ripple and noise max 150mV peak-to-peak for stable output signal.
- Certified to EN 60950-1 and medical standard EN-60601-1 for industrial and medical use.
- Suitable for IGBT driver applications requiring isolated 2W power supply.
- Mean Time Between Failures (MTBF) rated at 135000 hours ensures durability.
Product Description
The Recom RKZ-0505S is a high-quality, medical-approved DC/DC converter designed for industrial and medical applications requiring isolated and reliable power conversion.
This 2W SIP single output converter delivers regulated 5V DC output at a continuous current of 400 mA, with an input voltage range from 4.5V to 5V DC, making it well suited for sensitive electronic equipment.
Its compact through-hole SIP package measures 19.65mm in length by 10.2mm in width and depth, with only 4 pins for easy through-hole PCB mounting. The product offers an efficiency of 84% and generates low ripple noise of 150 mV peak-to-peak, important for noise-sensitive electronics.
Operating temperatures ranging from -40°C to 85°C without derating ensure it can be utilized in demanding environmental conditions. High isolation voltage of 3kV DC provides excellent protection against voltage spikes and enhances safety in industrial and healthcare systems.
High isolation voltage of 3kV DC for increased safety. Compact SIP7 through-hole package with 4 pins. Medical and industrial certifications for EN 60950-1 and EN 60601-1. 85°C max operating temperature suitable for harsh environments.
Suitable for IGBT driver circuitry applications. 1400 mA and 2400 mA outputs available in series (RKZ series compatibility). Mean Time Between Failures of 135000h ensuring high reliability. UL, IEC, and CSA standards compliance.
Recom’s RKZ series enhances upgrade options with pin-compatible models for seamless integration and improved power supply performance across medical and industrial fields. This product is designed and manufactured in Taiwan, Province Of China, assuring robust build quality and performance.
Explore more DC/DC Converters and power supply solutions at EnvMart to fit your industrial, medical, and electronic development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
The input voltage range for the RKZ-0505S is from 4.5V to 5V DC.
This unit has dimensions of 19.65mm in length, 10.2mm in width, and 10.2mm in depth.
The efficiency of this model is approximately 84%.
The operating temperature range for the RKZ-0505S is from -40°C to 85°C.
This model features a high isolation voltage of 3kV DC.
The converter is certified to EN 60950-1 and medical standard EN-60601-1, along with compliance to UL, IEC, and CSA standards.
This unit has one output with a voltage of 5V DC and a current of 400 mA.
The ripple and noise for this model is a maximum of 150mV peak-to-peak.
This model uses a through-hole mounting type.
The MTBF for this converter is rated at 135,000 hours.
The RKZ-0505S is manufactured in Taiwan, Province of China.
