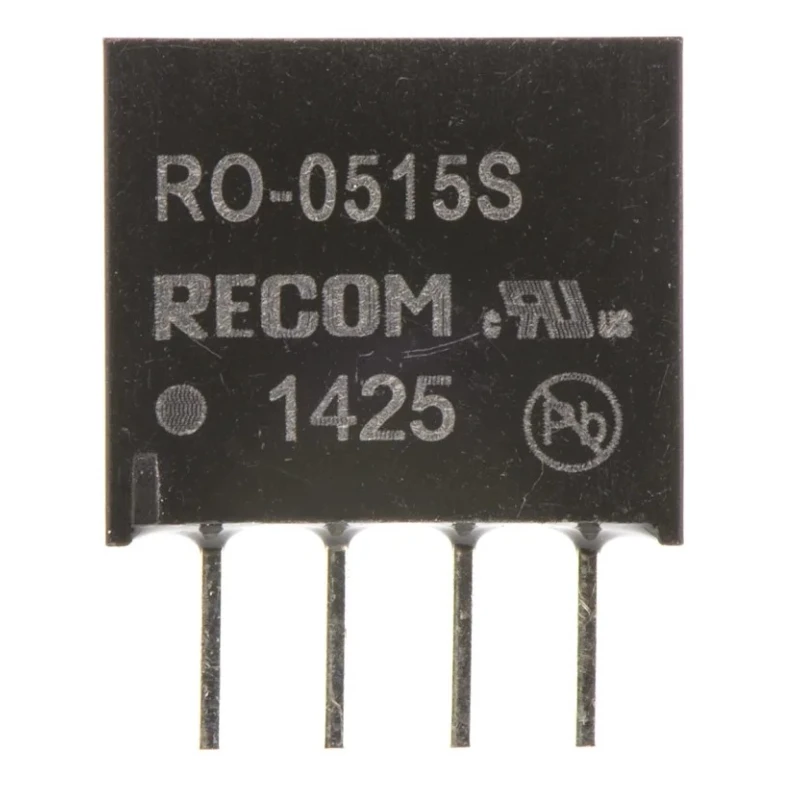

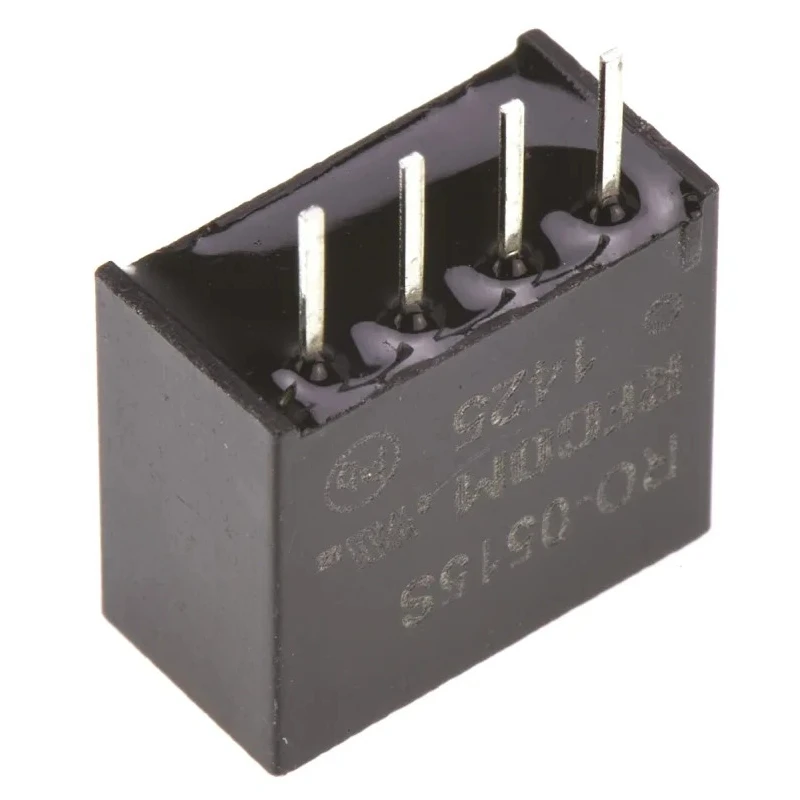

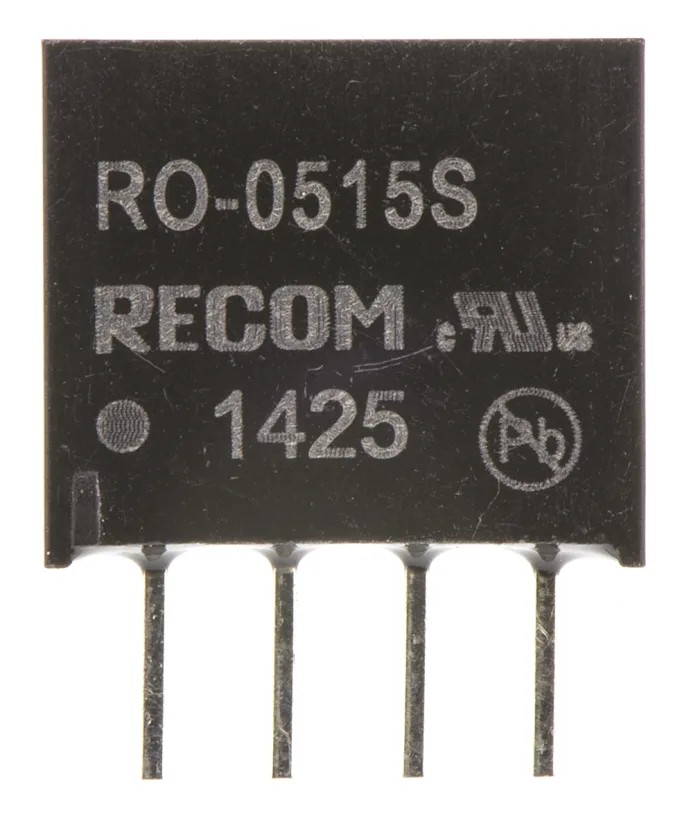

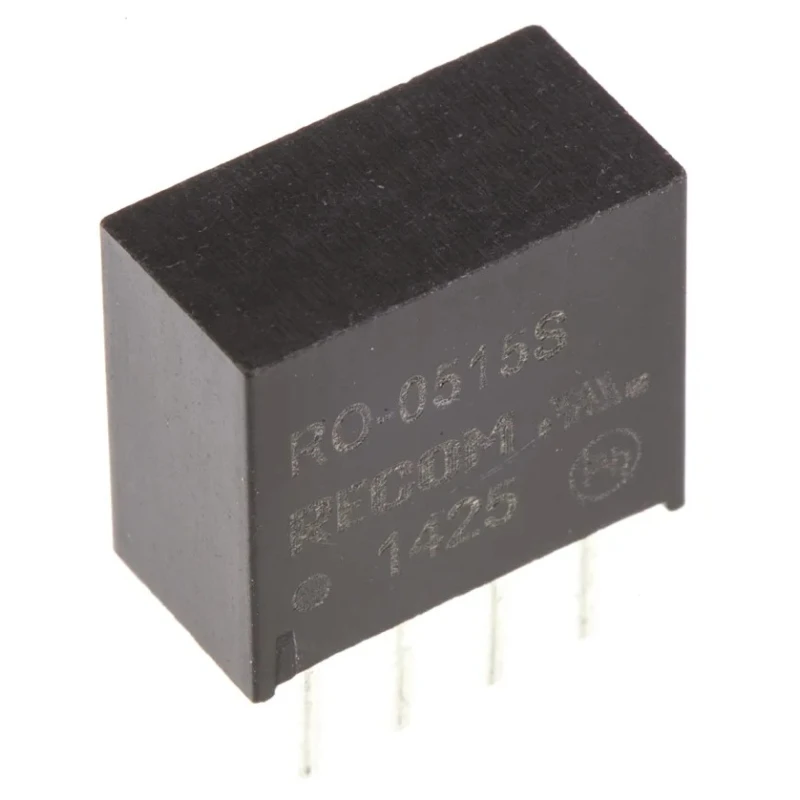

Recom DC/DC Converter 15V dc Output, 66 mA, 5V dc Input, 1W Through Hole RO-0515S

Recom RO-0515S is a high-performance DC/DC converter offering a 15V DC output at 66 mA current and a maximum power output of 1W. It operates with an input voltage range from 4.5V to 5V DC and comes in a compact SIP through-hole package for easy PCB mounting.

This converter ensures electrical isolation between input and output, enhancing safety in industrial and medical equipment applications. Its wide operating temperature range from -40°C to +85°C allows it to function reliably in challenging environments such as industrial automation, military systems, and electronics assembly.

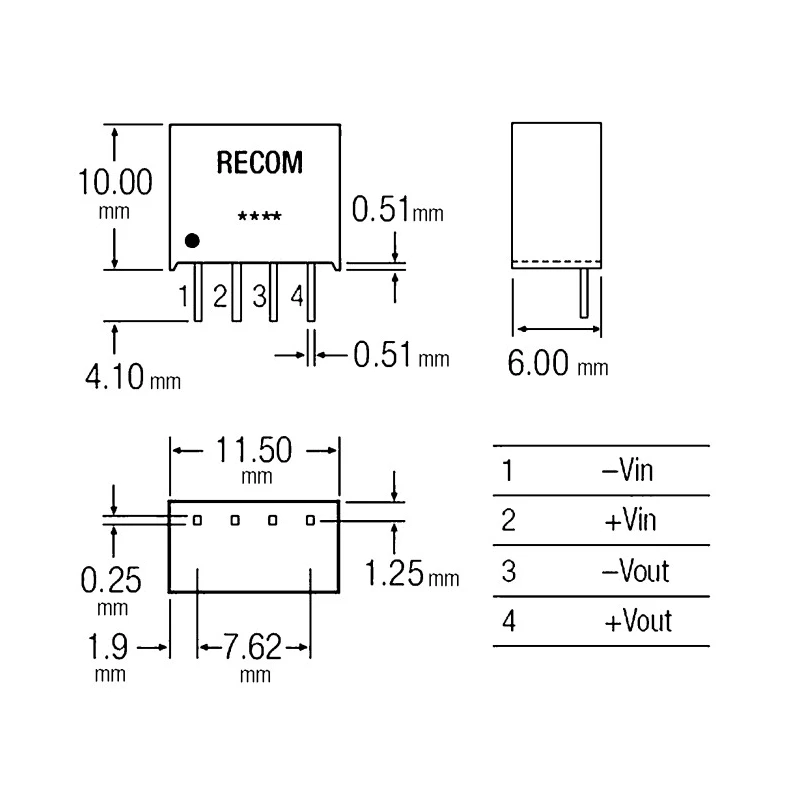

The unit’s compact size of 11.5 mm length, 6 mm width, and 10 mm depth maximizes packing efficiency on the PCB while maintaining a lightweight profile at just 1.4 g. Its robust design complies with UL, IEC, and CSA standards, offering dependable power conversion with an efficiency up to 84%, effectively minimizing energy loss.

Additional features include a low ripple and noise specification of 100 mV peak-to-peak and a secure isolation voltage of 1 kV DC, providing smooth and clean power output. The converter’s mean time between failures (MTBF) is rated at 200,000 hours, highlighting its durability and suitability for mission-critical applications.

Applications for the Recom RO-0515S include military and defense electronics, industrial automation equipment, medical instrumentation, and other electronic assemblies requiring stable and efficient voltage conversion.

The device offers isolated input and output for enhanced electrical safety. Operating temperature ranges from -40°C to +85°C, suitable for harsh industrial environments. Compact dimensions of 11.5 x 6 x 10 mm optimize PCB space usage.

High efficiency of up to 84% minimizes power loss during operation. Designed for through-hole mounting to facilitate easy PCB integration. Features a low ripple and noise level of 100 mV peak-to-peak. The converter provides a stable output voltage adjustment range of 4.5 to 5.5V.

MTBF of 200,000 hours ensures long operational reliability. Isolation voltage rating of 1 kV DC assures robust isolation performance. Lightweight design at 1.4 grams reduces mechanical strain on PCB assembly. Explore more power supply and transformer solutions in the DC/DC Converter category at EnvMart for robust and reliable voltage conversion products.
