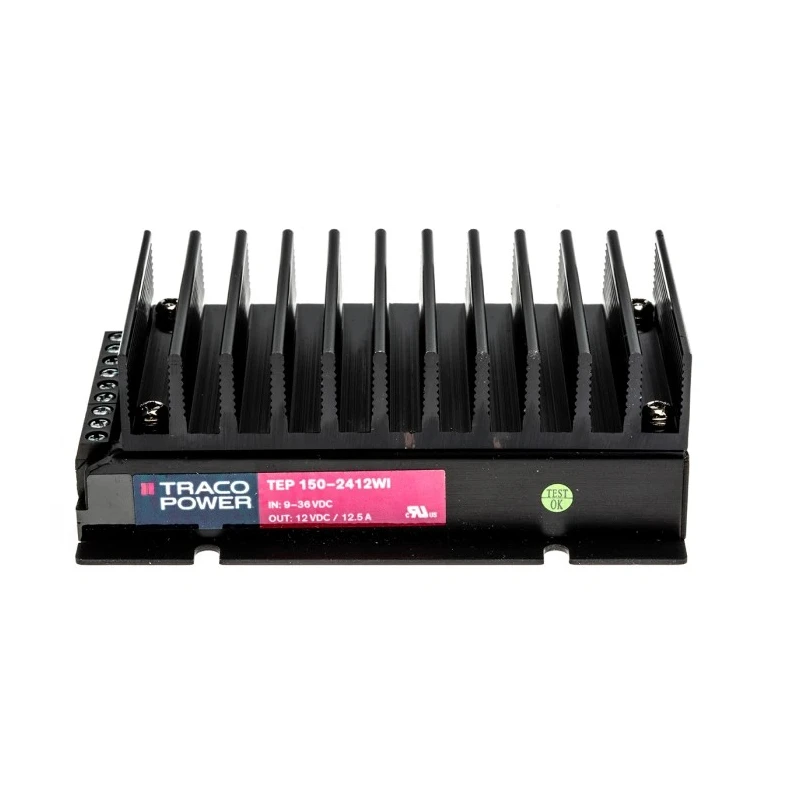

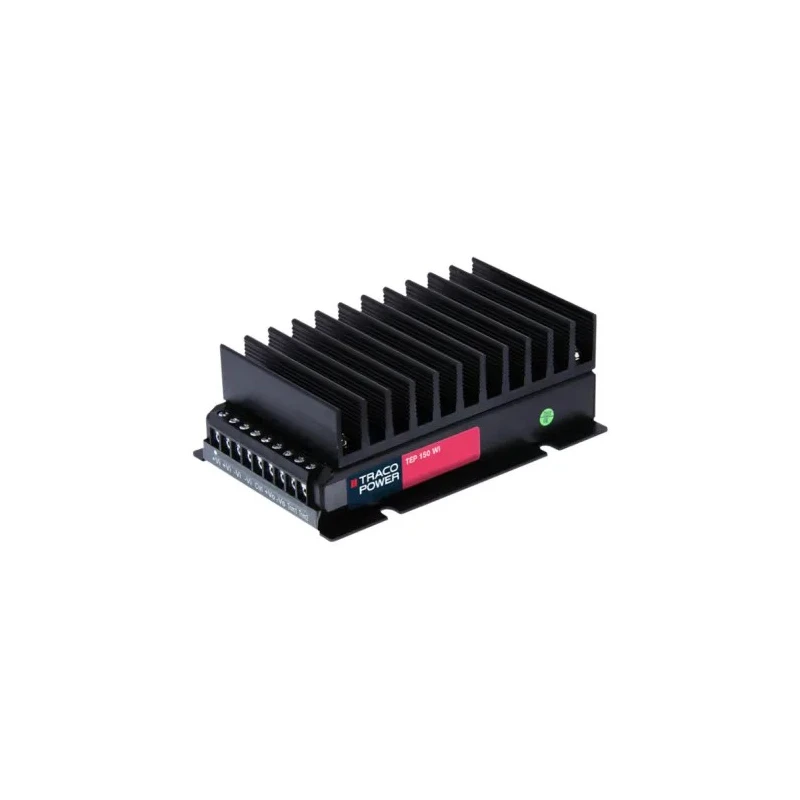

TRACOPOWER DC/DC Converter 12V DC Output, 36V DC Input, 12.5A Output Current, 150W Power, Chassis and Wall TEP 150-2412WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEP 150WI DC/DC Converter, 12V dc/, 36V |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 98mm |
| Model | TEP 150-2412WI |
| Depth | 35.7mm |
| Width | 65mm |
| Mount Type | Chassis Mount, Wall Mount |
| Series | TEP 150WI |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 495000h |
| Number of outputs | 1 |
| Maximum Output Power | 150W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 12.5A |
| Output Voltage Adjustment Range | 12/14.4 V dc |
| Isolation Voltage | 2.25kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | 14.4V dc |
| Input Ratio 4 | 1 |
Key Features
- Provides reliable DC/DC conversion with 2.25kV DC isolation voltage.
- Operates efficiently at 86% efficiency, suitable for demanding electrical applications.
- Capable of input voltage from 9V minimum up to 36V maximum for flexible power supply.
- Designed for robust industrial use with MTBF of 495000 hours and wide temperature range from -40°C to 75°C.
- Includes adjustable output voltage setting range between 12V and 14.4V DC for versatility.
- Convenient mounting options include chassis and wall mount for flexible installation.
- Compact dimensions (98mm length × 65mm width × 35.7mm depth) fit tight spaces.
- Meets industry safety standards and protects equipment from electrical faults.
Product Description
TRACOPOWER TEP 150-2412WI is a high-performance DC/DC Converter designed to provide a stable 12V DC output at 12.5A current with a maximum power rating of 150W. It is engineered for industrial and commercial applications where reliable, regulated power supply is critical.
This converter supports a wide input voltage range from 9V to 36V DC, making it suitable for battery-powered equipment, railway systems, and automotive manufacturing where variable voltage sources are common. Its built-in 2.25kV DC isolation voltage ensures robust protection against electrical interference and enhances system safety.
With an efficiency rating of 86%, it minimizes energy loss and heat generation, contributing to overall system effectiveness. The device endures harsh environmental conditions with an operating temperature range of -40°C to 75°C and a mean time between failure (MTBF) of 495000 hours, signifying excellent reliability for long-term use.
The converter features adjustable output voltage settings between 12V and 14.4V DC, providing users flexibility to optimize for different devices or systems. It supports both chassis and wall mounting, simplifying integration into various installation environments.
Its compact physical size, measuring 98 mm in length, 65 mm in width, and 35.7 mm in depth, enables space-saving deployment in electrical panels and control cabinets.
Applications include industrial automation, power supply for embedded systems, railway industry, automotive manufacturing, and battery-powered devices requiring clean, stable DC power.
Reliable isolated power conversion for industrial electronics. Wide input voltage range for versatile deployment. High efficiency reduces thermal and energy losses. Robust design withstands thermal shock and vibration. Flexible mounting options for varied installation.
Adjustable output voltage to meet assorted load requirements. Compact footprint for space-limited applications. Explore similar power supply solutions and converters at EnvMart for your precise industrial and laboratory power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
It supports an input voltage range from 9V to 36V DC.
This model operates with an efficiency of 86%.
The dimensions are 98mm in length, 65mm in width, and 35.7mm in depth.
The output voltage can be adjusted between 12V and 14.4V DC.
It features an isolation voltage of 2.25kV DC.
The operating temperature range is from -40°C to 75°C.
This unit has one output.
It supports both chassis and wall mounting options for installation.
The MTBF is rated at 495,000 hours.
The country of origin for this model is Taiwan.
