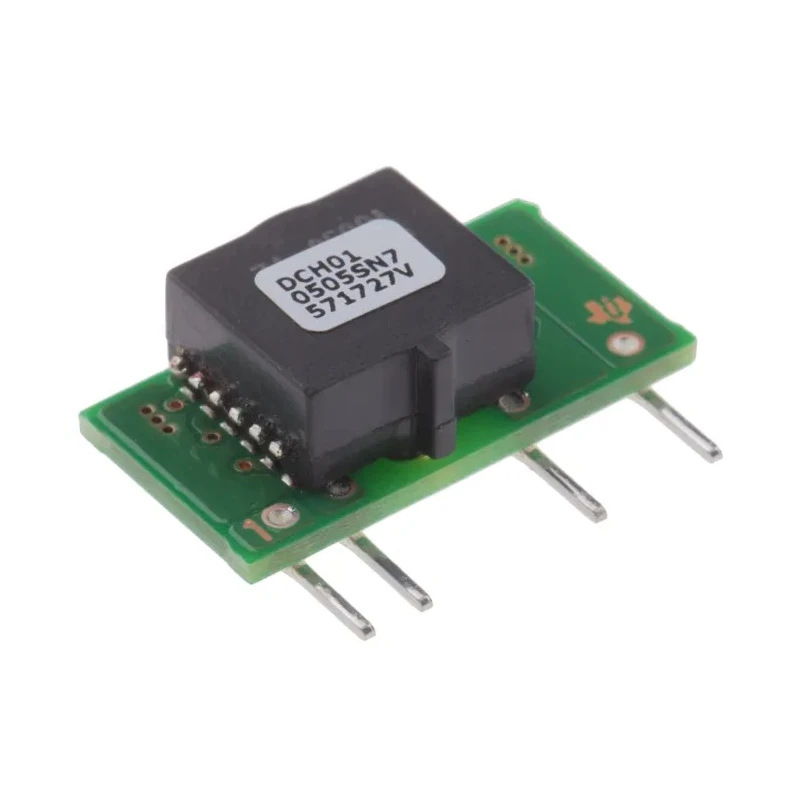

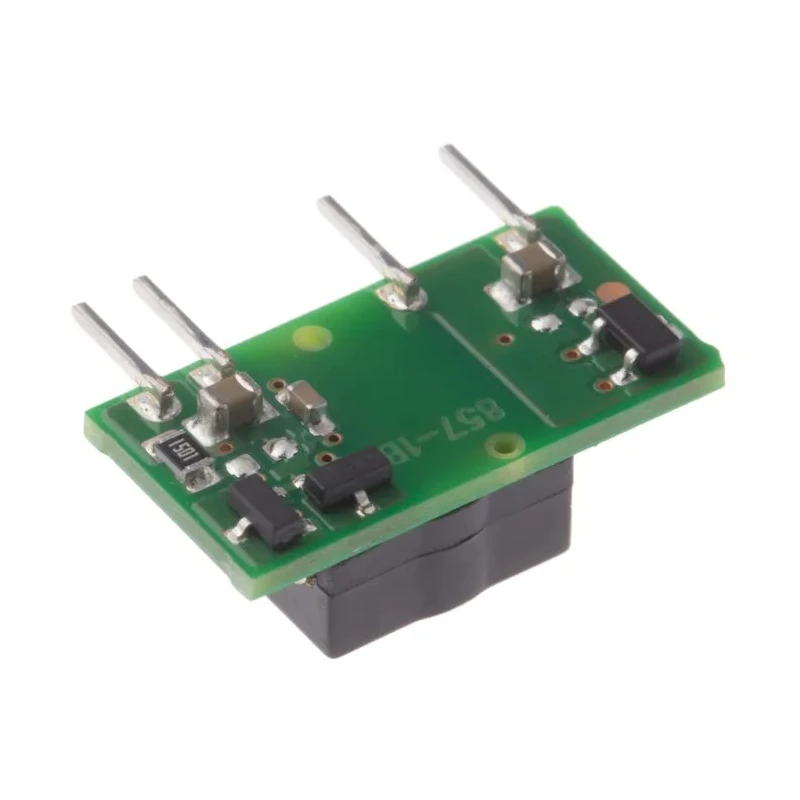

Texas Instruments 5-Channel DC/DC Power Supply Module Fixed 5V 200mA Through Hole SIP 4-Pin DCH010505SN7

Texas Instruments DCH010505SN7 5-Channel DC/DC Power Supply Module is designed for industrial and commercial electronic applications requiring stable fixed 5V DC output with a maximum current capacity of 200mA. The module features an isolated topology in a compact 4-pin SIP through-hole package measuring 19.56mm length, 7.62mm width, and 10.15mm height, suitable for PCB mounting and space-constrained designs.

It supports an input voltage range from 4.5V to 5.5V, ensuring compatibility with standard 5V supply rails. Operating temperature ranges from -40°C to 85°C, making it ideal for harsh industrial environments. The module's maximum switching frequency is 70kHz, supporting efficient power conversion with minimal noise and heat generation.

Incorporating an integrated shielded inductor provides superior EMI protection and thermal performance, fulfilling stringent regulatory standards including EN55022 Class B. Pin-to-pin compatibility between modules facilitates design flexibility and easy substitution in different load current specifications.

This DC/DC power supply module includes precision enable, soft-start, and tracking for power sequencing, enhancing system reliability. It is used extensively in industrial machines, instrumentation, HVAC systems, manufacturing equipment, and other applications requiring efficient power management.

Provides reliable fixed 5V output voltage for stable power supply needs. Supports input voltage range from 4.5V to 5.5V for flexibility. Compact SIP package with through-hole mount suitable for PCB integration. Isolated topology ensures EMI protection and superior thermal performance.

Maximum switching frequency of 70kHz enables efficient power conversion. Operates reliably between -40°C to 85°C for industrial environments. Features integrated shielded inductor for improved electromagnetic interference reduction.

Pin-to-pin compatibility allows easy replacement in various load current applications. Complies with EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard. Easy to use with precision enable, soft-start, and tracking features for power sequencing.

This product is suitable for use in industrial, laboratory, manufacturing, and HVAC power management systems where stable and efficient DC power supply is critical. EnvMart customers can browse more Power Management ICs and power modules to find complementary components for their electronic designs.
