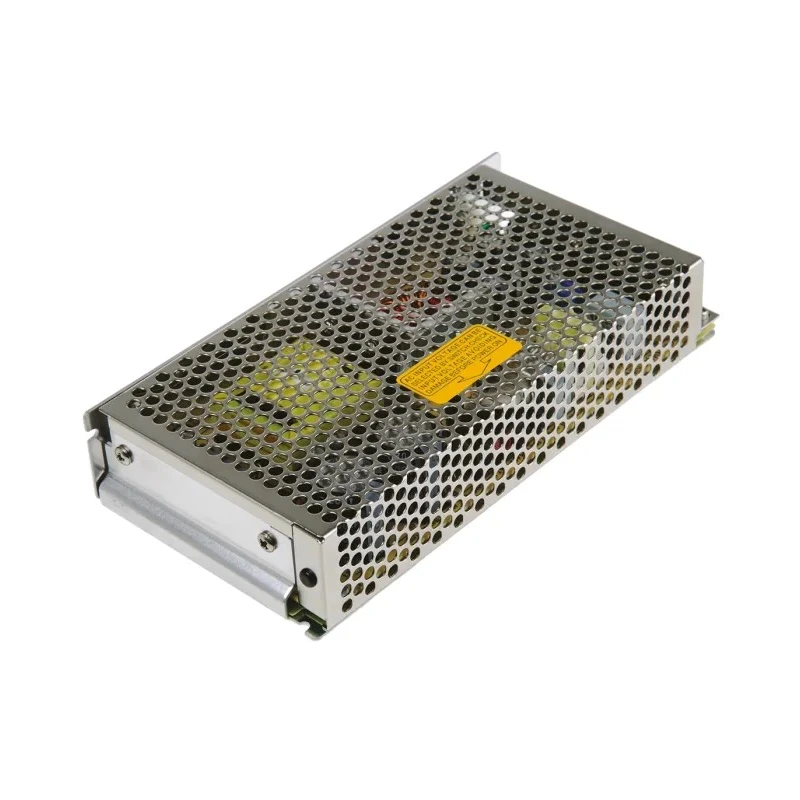

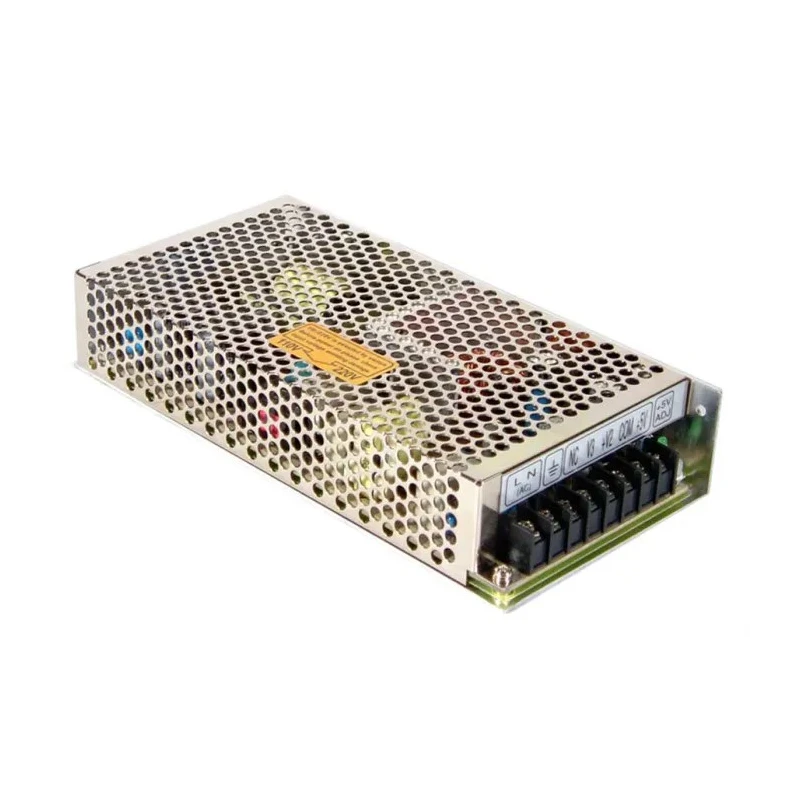

MEAN WELL RD-125A Dual Output Switching Power Supply 2 Outputs 12V DC 130.9W Chassis Mount RD-125A

MEAN WELL RD-125A dual output switching power supply offers robust 130.9W power delivery with a chassis mounting type and dual 12V DC outputs. Designed for industrial and commercial applications requiring reliable and efficient power conversion, it supports universal AC input voltages and withstands DC inputs with surge protection. Its compact size and high power density facilitate easy integration into control panels and power systems.

This power supply features high operating temperature tolerance up to 70°C and long-life electrolytic capacitors rated at 105°C to ensure stability and longevity. Safety features include overload, overvoltage, and short circuit protections, enhancing operational reliability. The unit supports an output current of 7.7A per output, making it suitable for a range of electronic devices and industrial equipment.

Mounting using the chassis type simplifies installation in various power distribution and automation systems. With efficiency up to 82%, it helps minimize energy waste and heat generation. The product complies with several international certifications such as UL 62368-1, TUV EN 62368-1, CSA C22.2, and CCC standards, affirming its quality and safety compliance.

The compact dimensions (199mm x 38mm x 38mm) and lightweight (700g) design enable space-saving and ease of handling. Typical use cases include industrial machinery, control systems, telecommunications, and testing equipment requiring stable dual output power sources.

The unit provides a maximum power output of 130.9 watts with 2 DC outputs. Supports output currents of 7.7A per output for 5V and 12V supply. Universal input voltage range from 88VAC to 264VAC, with DC input option of 248V to 373V.

Chassis mounting type design for secure installation in electrical applications. High efficiency of 82% ensures reduced energy loss during operation. Operates reliably within a temperature range of -25°C to 70°C. Equipped with overload, overvoltage, and short circuit protections for safety.

Compact dimensions: 199mm length, 38mm width, and 38mm depth, ideal for space-saving enclosures. Long life electrolytic capacitors rated for 105°C enhance durability and reliability. Certified and approved by multiple standards including UL, TUV, CSA, and CE.

The MEAN WELL RD series is known for reliable performance in industrial and laboratory environments requiring stable Switching Power Supplies. Browse more power supply solutions and accessories on EnvMart.
