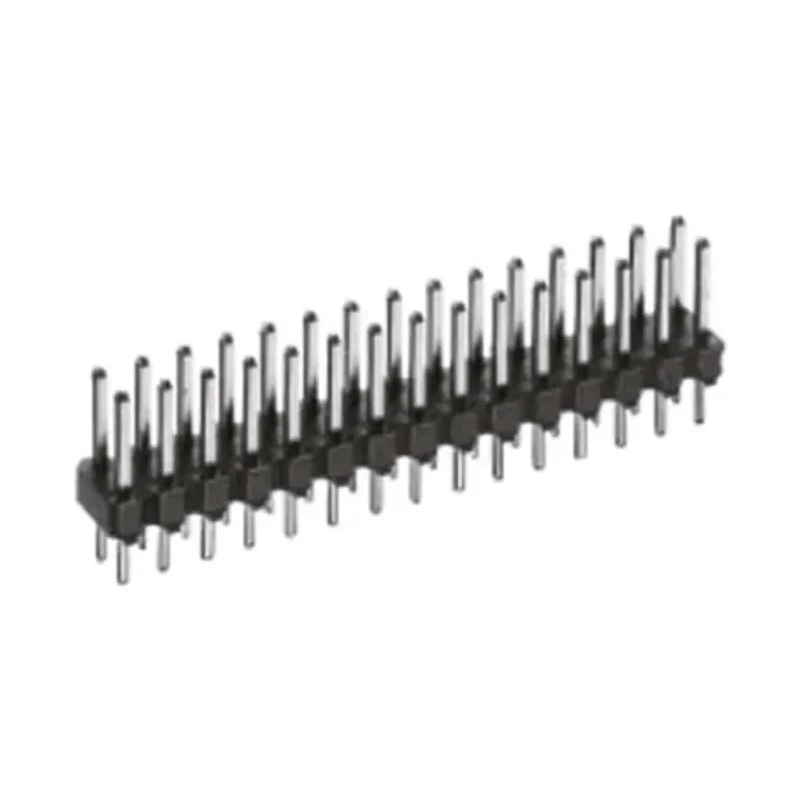

Hirose A1 Series 16 Contact Straight Through Hole Pin Header 2.54 mm Pitch 2 Row Unshrouded A1-16PA-2.54DSA(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | A1-16PA-2.54DSA(71) |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | A1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Supports up to 3A current rating ensuring reliable electrical performance.
- Constructed with brass contacts plated in gold for durability and corrosion resistance.
- Operates within temperature range of -55°C to 85°C for versatile environments.
- Designed for through hole mounting providing strong mechanical connection.
- Features male contact gender compatible with corresponding crimp connector housings.
- Unshrouded design facilitates easy inspection and soldering.
- Mates with Hirose A1 and A2 series 2.54 mm crimp connector housings.
Product Description
Hirose A1-16PA-2.54DSA(71) is a high-quality PCB Pin Header connector designed for electronic assemblies requiring reliable board-to-board and wire-to-board connections. This model features 16 gold-plated brass contacts arranged in two straight rows with a 2.54 mm pitch, providing a compact and space-saving solution.The connector supports a current rating of 3A and voltage rating of up to 200V, making it suitable for various electronic and electrical applications in industrial, manufacturing, and commercial electronics sectors. The operating temperature range between -55°C and 85°C ensures robust performance even in extreme conditions.
The through hole mounting type offers enhanced mechanical stability for PCB assembly. The unshrouded male contacts facilitate straightforward soldering and inspection during manufacturing. This pin header mates seamlessly with Hirose's A1 and A2 series crimp connector housings, enabling flexibility in connector configurations.
This connector series is ideal for compact PCB designs and high-density interconnections where reliable signal and power transmission are critical. Its brass contacts with gold plating maximize conductivity and resistance against corrosion, extending the connector’s operational lifespan.
Supports up to 3A current rating ensuring reliable electrical performance. Constructed with brass contacts plated in gold for durability and corrosion resistance. Operates within temperature range of -55°C to 85°C for versatile environments.
Designed for through hole mounting providing strong mechanical connection. Features male contact gender compatible with corresponding crimp connector housings. Unshrouded design facilitates easy inspection and soldering.
Mates with Hirose A1 and A2 series 2.54 mm crimp connector housings. Available in packs suitable for prototyping, PCB manufacturing, and repair works. Enjoy assured quality manufactured in Japan, adhering to premium material standards.
Browse our Electronics Components category for more connectors and headers from Hirose and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 3A, ensuring reliable electrical performance in various applications.
The voltage rating for the Hirose A1-16PA-2.54DSA(71) is up to 200V, making it suitable for a range of electronic applications.
It operates within a temperature range of -55°C to 85°C, allowing for versatile use in different environments.
The Hirose A1-16PA-2.54DSA(71) features 16 contacts arranged in two rows, providing a compact connection solution.
This connector is designed for through hole mounting, which provides a strong mechanical connection for PCB assembly.
The contacts are constructed from brass and are plated in gold, enhancing conductivity and corrosion resistance.
The pitch size for this pin header is 2.54 mm, which is standard for many PCB applications.
This model features an unshrouded design, which facilitates easy inspection and soldering during assembly.
The termination type for the Hirose A1-16PA-2.54DSA(71) is solder, suitable for secure connections on PCBs.
It is designed for board-to-board and wire-to-board connections, mating with Hirose's A1 and A2 series crimp connector housings.
The orientation of the Hirose A1-16PA-2.54DSA(71) is straight, allowing for straightforward installation on PCBs.
This model is manufactured in Japan, adhering to premium material standards for electronic components.
