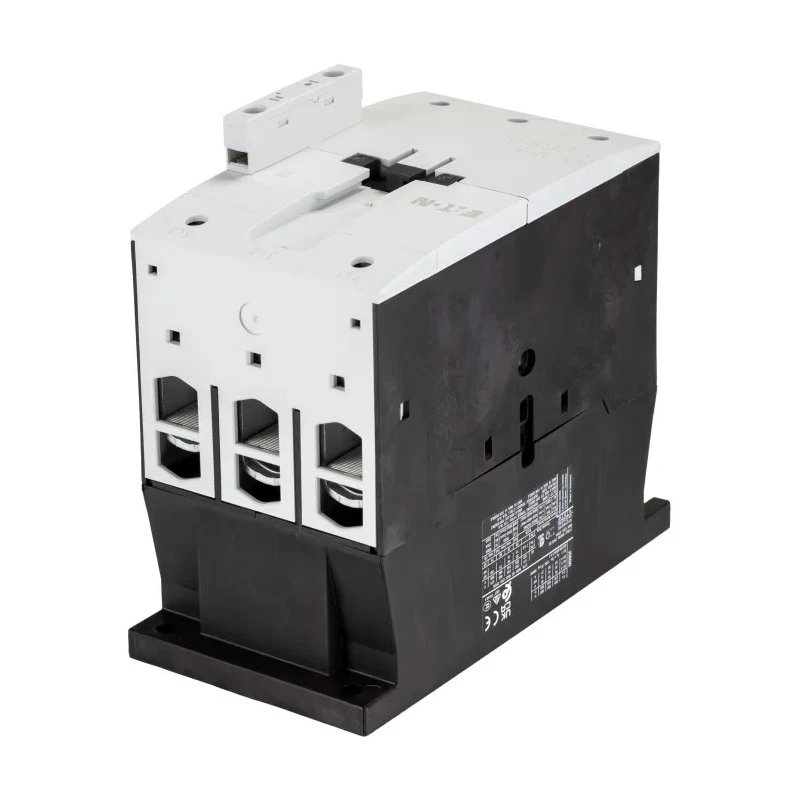

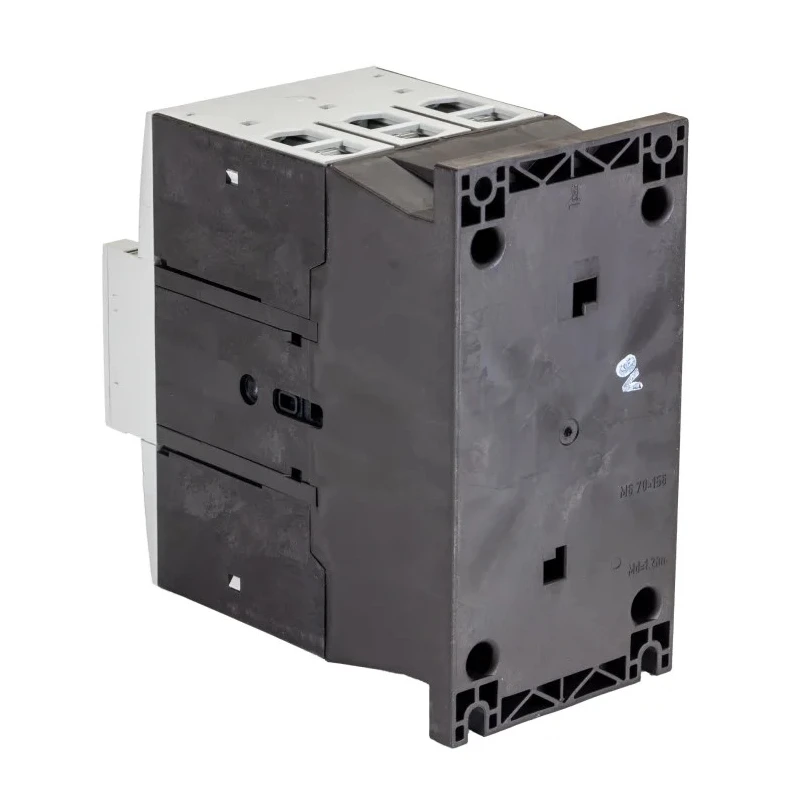

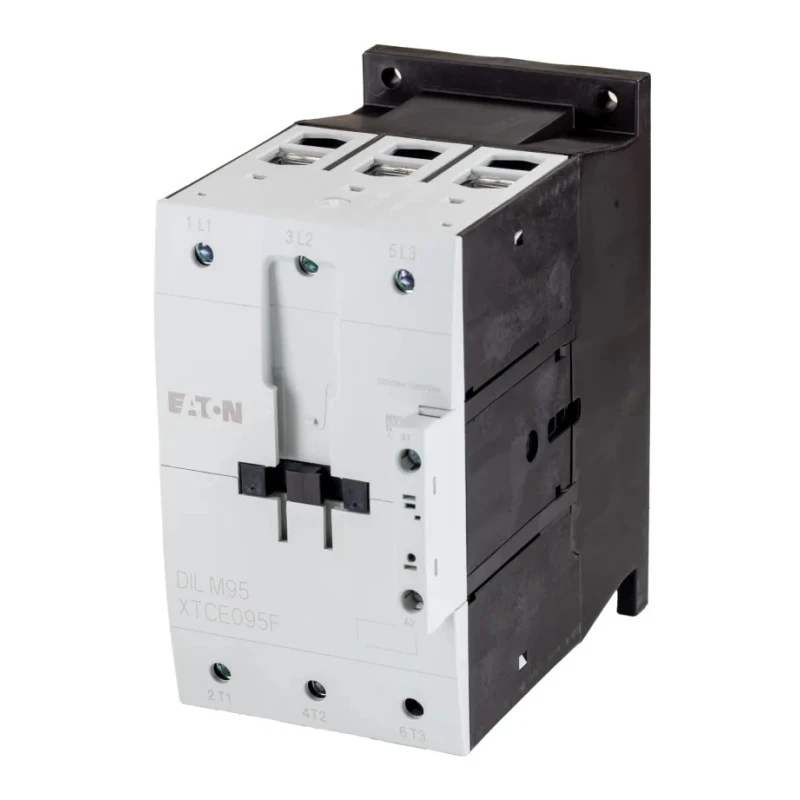

Eaton DILM Contactor 3-Pole 95A 45kW 230V AC Coil 400V AC Contact Voltage 239480 DILM95(230V50HZ,240V60HZ)

Eaton 239480 DILM95(230V50HZ,240V60HZ) 3-Pole Contactor is engineered for robust motor control and resistive load applications requiring reliable switching and high endurance. Featuring a 230V AC coil and handling contact currents up to 95A, this contactor operates effectively at a contact voltage of 400V AC with a power rating of 45 kW, making it ideal for industrial and manufacturing environments.

The unit is designed with a compact surface mount form factor measuring 111mm width, 170mm length, and 117mm depth, allowing it to fit snugly into cabinets where space is limited. Its screw clamp terminals provide straightforward and rapid installation using a screwdriver, reducing setup time on site.

Rated to withstand operating temperatures from -25°C to 40°C, the contactor can be deployed in demanding environments without compromising performance. It complies with major international standards including CSA, IEC/EN 60947, UL, and VDE 0660, ensuring safety and reliability in industrial automation systems.

This DILM series contactor features three normally open (3 NO) contacts and no auxiliary contacts, offering a clean, direct switching interface. It supports a mechanical lifespan of up to 10 million operations, affording long-term durability and reducing maintenance requirements in heavy-duty motor control applications such as jogging and starting of three-phase motors.

Compatible with IE3 energy-efficient motors, the contactor also allows expansion via auxiliary contactors (such as the DILM150-XHI(V) unit) for increased power needs. Its capacity to handle high-frequency switching up to 3600 operations per hour underscores its suitability for intensive commercial and industrial usages including manufacturing plants and HVAC motor control.

Rated coil voltage: 230V AC. Contact current rating: 95A. Power rating: 45 kW at 230V AC coil voltage. Number of poles: 3. Contact configuration: 3 normally open (NO). Mount type: Surface mount. Terminal type: Screw clamp.

Operational temperature range: -25°C to 40°C. Compliance: CSA, IEC/EN 60947, UL, VDE 0660. Mechanical lifespan: 10 million operations.
