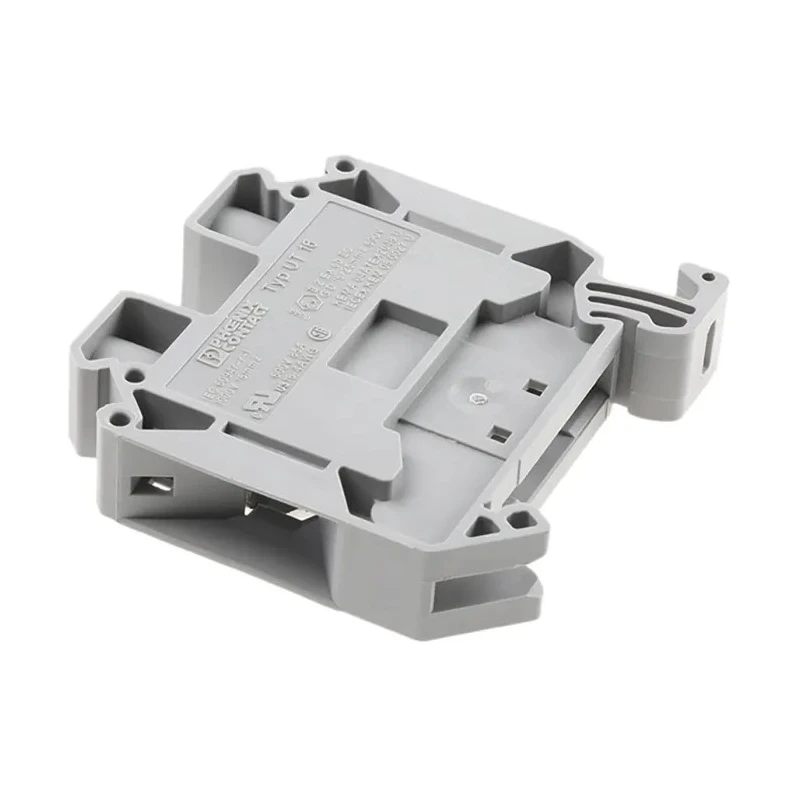

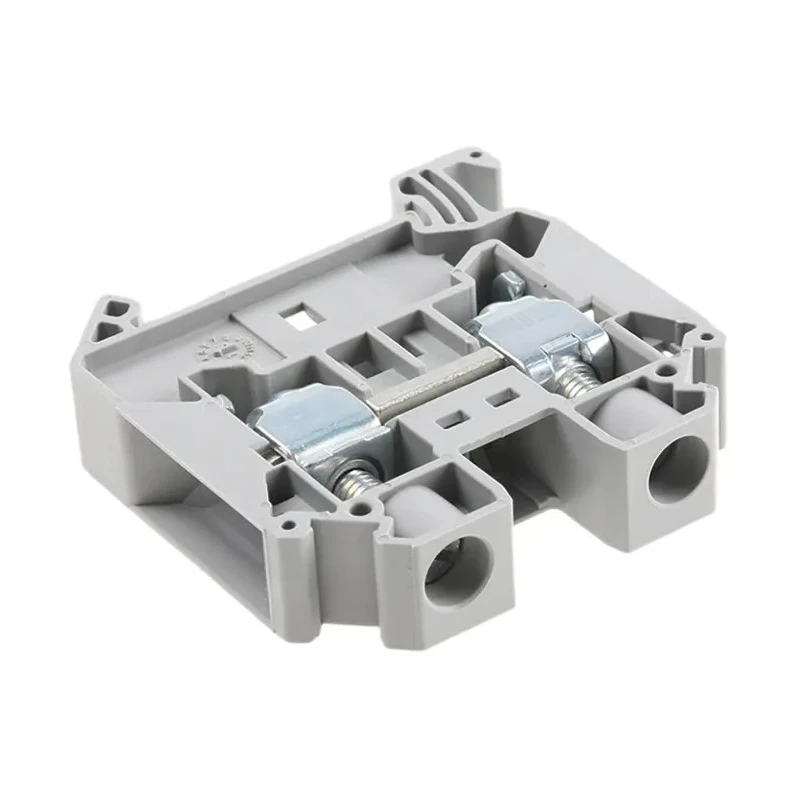

Phoenix Contact Feed Through Terminal Block UT 16 Series, Grey, 1-Level, Screw Termination, 1kV, 76A, ATEX Certified 3044199
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3044199 |
| Series | UT 16 |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 4AWG |
| Cable CSA | 1.5, 25mm² |
| Terminal Block Current | 76A |
| Phoenix Contact 3006179 Blue, Green, Yellow, 2-Level, Screw TerminationBrand | Phoenix Contact |
| RS PRO Feed Through Terminal Block Grey, 16mm², 1-Level, Screw, ATEXBrand | RS PRO |
Key Features
- Constructed with durable grey PA plastic, resistant to corrosion and abrasion.
- Supports conductor sizes from 1.5 mm² to 25 mm² compatible with 16 AWG to 4 AWG wires.
- Compact design measuring 55.5 mm (L) x 12.2 mm (W) x 54.4 mm (D) for space-saving installation.
- Rated surge voltage of 8 kV provides protection against power spikes and overcurrent.
- Screw terminals secure wires firmly to withstand vibrations, minimizing maintenance.
- Flame-retardant material ensures enhanced safety during potential fire incidents.
- Certified for hazardous locations with ATEX compliance and multiple global standards.
- Operates reliably under extreme temperatures ranging from -60°C to 110°C.
Product Description
Phoenix Contact 3044199 feed through terminal block from the UT 16 series features robust screw termination designed for secure, reliable electrical connections rated up to 1kV and 76A. Manufactured in Turkey from hard-wearing PA plastic, this grey terminal block resists corrosion and abrasion to provide extended service life even in harsh environments.
Compatible with conductor sizes ranging from 16 AWG to 4 AWG (1.5 mm² to 25 mm² cable cross sections), it supports typical industrial wiring requirements. The terminal block is compact with dimensions 55.5 mm length, 12.2 mm width, and 54.4 mm depth, making it suitable for space-critical DIN rail assemblies.
The device boasts a high rated surge voltage of 8 kV, making it effective at protecting electrical systems from damaging transient voltage spikes and overcurrent situations. Screw terminals ensure a firm, vibration-resistant wire hold, reducing maintenance frequency.
The terminal block is constructed to be flame-retardant, burning briefly only under fire conditions to improve safety. It is certified to meet ATEX standards for hazardous area applications as well as global approvals including CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IECEE CB, IEC/EN 60079-7, IECEX, PRS, RS, UL, and VDE standards.
Designed for use in challenging industrial sectors such as machine building, plant engineering, and railway networks, it operates effectively from -60°C to 110°C ambient conditions.
Constructed with durable grey PA plastic, resistant to corrosion and abrasion. Supports conductor sizes from 1.5 mm² to 25 mm² compatible with 16 AWG to 4 AWG wires. Compact design measuring 55.5 mm (L) x 12.2 mm (W) x 54.4 mm (D) for space-saving installation.
Rated surge voltage of 8 kV provides protection against power spikes and overcurrent. Screw terminals secure wires firmly to withstand vibrations, minimizing maintenance. Flame-retardant material ensures enhanced safety during potential fire incidents.
Certified for hazardous locations with ATEX compliance and multiple global standards. Operates reliably under extreme temperatures ranging from -60°C to 110°C. Ideal for industrial applications such as machine building, plant engineering, and railway systems.
Explore our extensive range of Terminal Blocks and industrial electrical components to support your engineering and manufacturing projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this terminal block is 1 kV.
It supports conductor sizes from 1.5 mm² to 25 mm², compatible with 16 AWG to 4 AWG wires.
This terminal block has a current rating of 76A.
The dimensions are 55.5 mm in length, 12.2 mm in width, and 54.4 mm in depth.
It operates reliably in ambient temperatures ranging from -60°C to 110°C.
It uses screw termination for secure wire connections.
Yes, it is certified for hazardous locations with ATEX compliance.
It is constructed from durable grey PA plastic, resistant to corrosion and abrasion.
It is flame-retardant, improving safety during potential fire incidents, and has a rated surge voltage of 8 kV.
It is designed for use in industrial sectors such as machine building, plant engineering, and railway networks.
This terminal block is manufactured in Turkey.
It meets multiple global standards including CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, and others.
