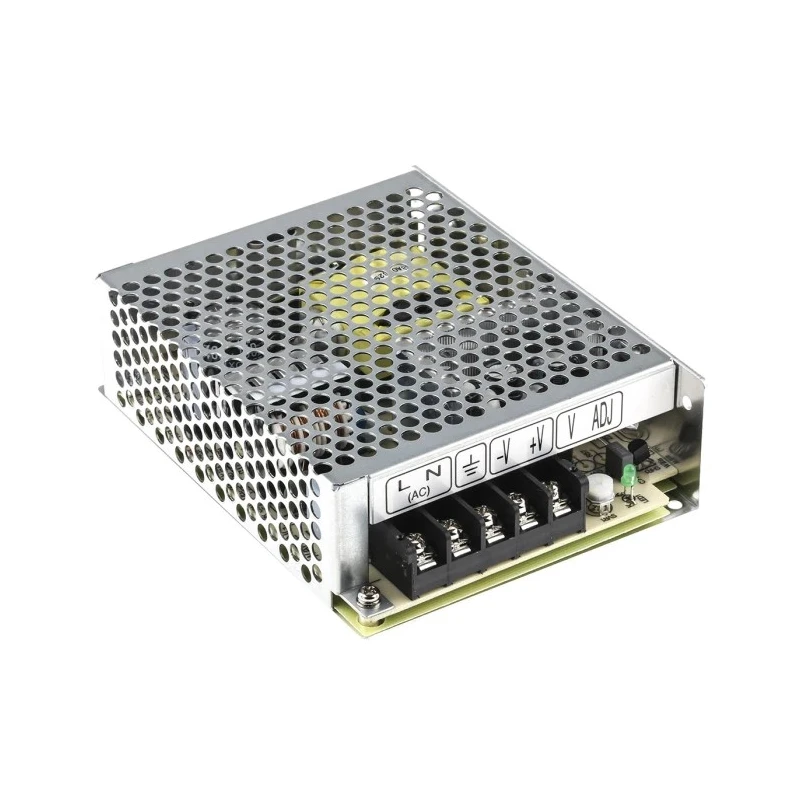

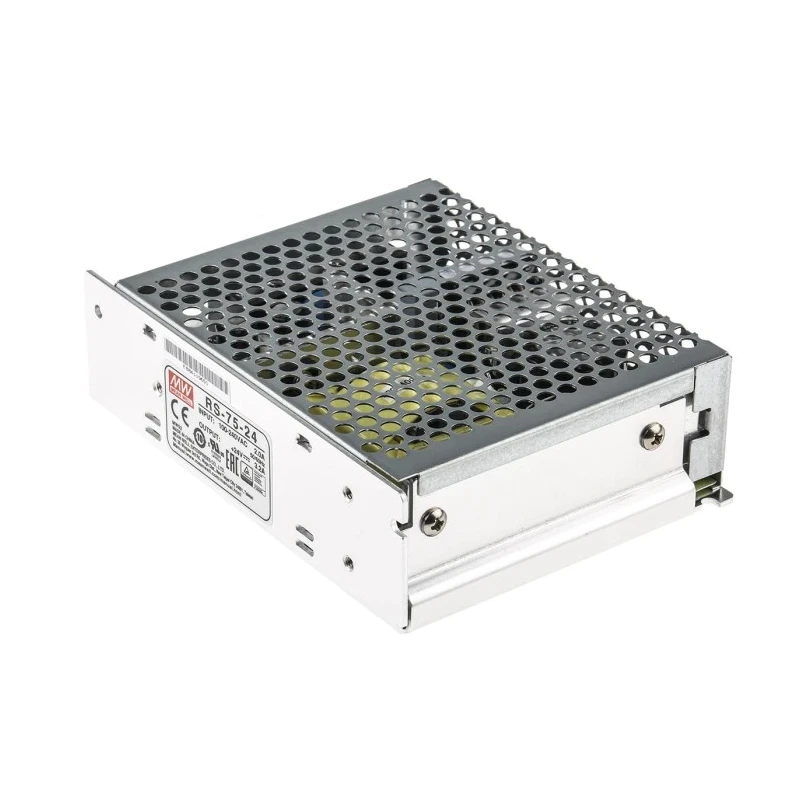

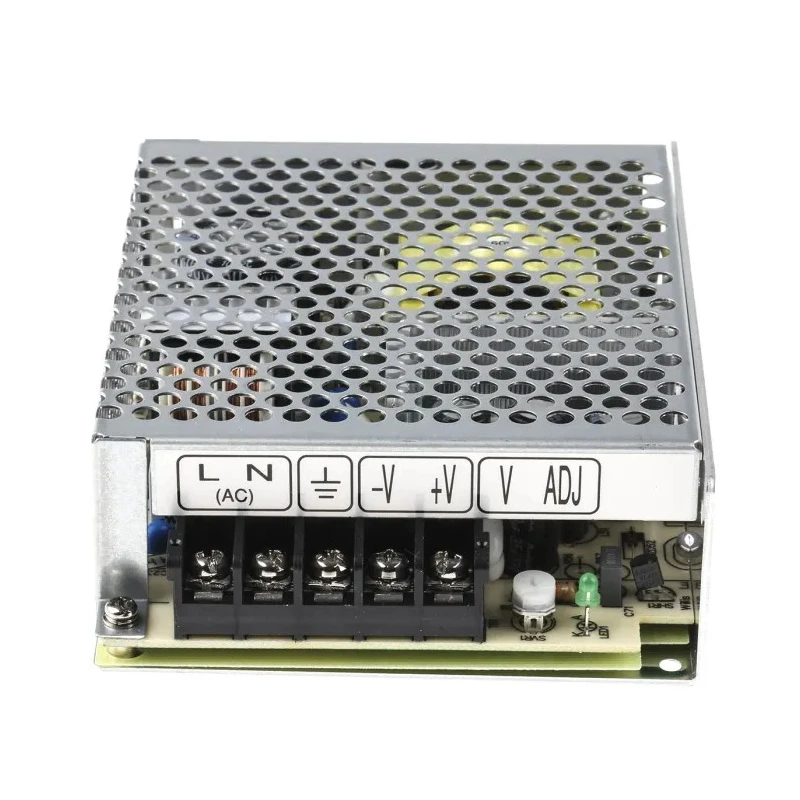

MEAN WELL 76.8W 24V DC 3.2A Switching Power Supply, Universal Input 88-264V AC, Chassis Mount RS-75-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 76.8W |
| Efficiency | 88.5% |
| Length | 129mm |
| Model | RS-75-24 |
| Depth | 38mm |
| Gross Weight | 410g |
| Width | 38mm |
| Mount Type | Chassis |
| Series | RS-75 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 3.2A |
| Minimum Input Voltage | 88V ac |
Key Features
- Universal input voltage range from 88V AC to 264V AC and 125V DC to 373V DC.
- High power output of 76.8W with 24V DC at 3.2A output current.
- Compact chassis mount design measuring 129x38x38 mm.
- Wide operating temperature range from -25°C to 70°C.
- High efficiency up to 88.5% for energy-saving performance.
- Built-in overload and overvoltage protection for safety.
- Cooling by free air convection for noise-free operation.
- Long life electrolytic capacitors rated at 105°C.
Product Description
MEAN WELL RS-75-24 switching power supply is a high-performance 76.8W single output AC to DC power module engineered for reliable electronic component operation. It delivers 24V DC output voltage with a current rating of 3.2A, suitable for industrial, commercial, and manufacturing applications.
This power supply supports a wide input voltage range from 88V AC to 264V AC and from 125V DC up to 373V DC, enabling universal compatibility with various power sources. The chassis mounting design features compact dimensions of 129mm in length, 38mm in width, and 38mm in depth, making it ideal for integration into confined equipment.
The device is capable of operating in temperature ranges from -25°C up to 70°C, supported by long-life electrolytic capacitors rated at 105°C that ensure durability and reliability. Its high efficiency rating of 88.5% minimizes energy loss for cost-effective power conversion.
MEAN WELL RS-75-24 incorporates comprehensive safety features including overload and overvoltage protection, along with protection against vibration through a 5G test, providing stable performance in demanding industrial environments. Cooling is passively managed by free air convection, resulting in quiet operation without the need for fans.
This power supply complies with multiple global safety and EMC standards such as UL 62368-1, TUV BS EN/EN 62368-1, CSA C22.2, and others, ensuring adherence to stringent quality requirements.
Universal input voltage range from 88V AC to 264V AC and 125V DC to 373V DC. High power output of 76.8W with 24V DC at 3.2A output current. Compact chassis mount with dimensions 129x38x38 mm. Operating temperature from -25°C to 70°C for wide environmental adaptability.
High efficiency up to 88.5% for energy-saving operation. Overload and overvoltage protection enhances operational safety. Cooling by free air convection for silent operation. Long life electrolytic capacitors rated at 105°C ensure reliability.
Meets international safety and EMC standards including UL, TUV, CSA, and more. Weighs 410g, facilitating easy installation in various industrial setups.
This MEAN WELL RS-75-24 power supply is ideal for use in industrial machines, manufacturing electronics, laboratory equipment, and other commercial applications requiring stable and reliable DC power. It combines durability, safety, and efficiency for effective power management solutions.
Explore comprehensive options in Switching Power Supplies on EnvMart for tailored industrial and electronic power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can operate in a wide temperature range from -25°C to 70°C, making it suitable for various environments.
Cooling is achieved through free air convection, allowing for silent operation without fans.
It has a high efficiency rating of up to 88.5%, minimizing energy loss during operation.
This unit is designed for chassis mounting, making it easy to integrate into confined spaces.
It complies with multiple global safety and EMC standards, including UL 62368-1, TUV BS EN/EN 62368-1, and CSA C22.2.
The maximum output voltage is 24V DC, which is suitable for various electronic applications.
