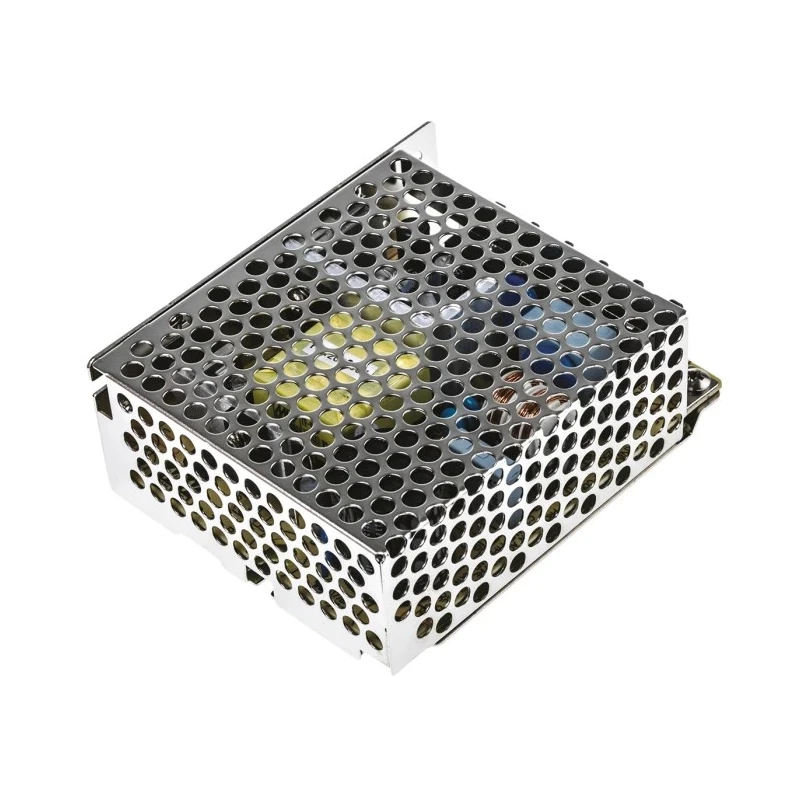

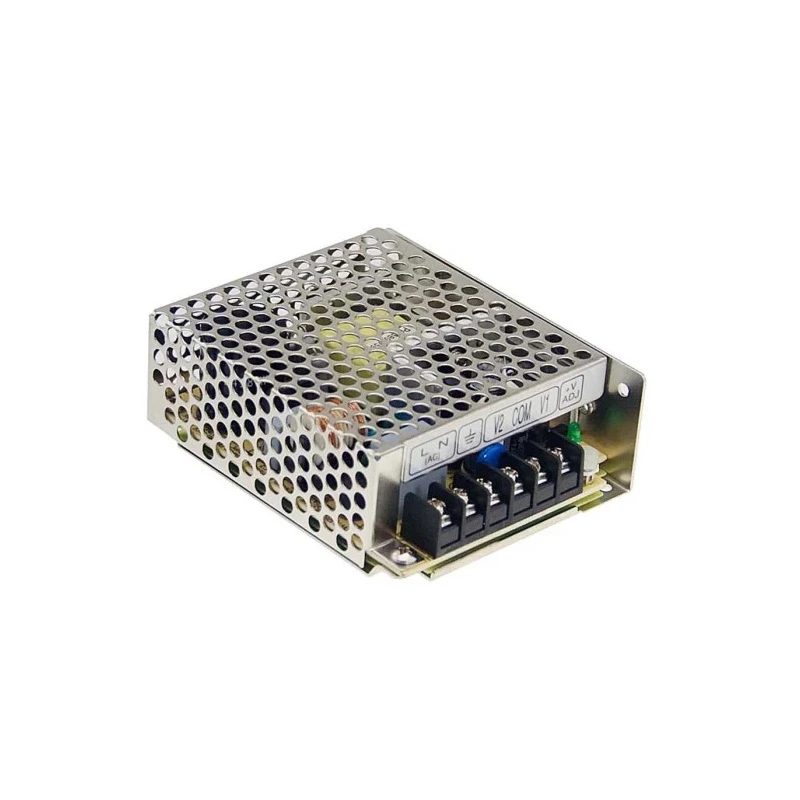

MEAN WELL RS-35-12 Switching Power Supply 12V DC 36W Universal Input 88-264VAC 3A Output RS-35-12

MEAN WELL RS-35-12 switching power supply is a high-reliability embedded AC to DC converter offering 36 watts of power at a fixed 12V DC output with 3 ampere current output. Designed for universal input voltage compatibility, it supports AC inputs from 88V to 264V and DC inputs up to 370V, suitable for a wide range of industrial and commercial electronic applications.

The compact chassis mount form factor measures 99mm in length, 36mm in width, and 36mm in depth, making it ideal for space-constrained installations. The robust design allows operation in harsh environments with temperatures ranging from -25°C to 70°C. High efficiency of 84.5% reduces energy consumption and heat generation, further enhancing system reliability.

Its features include overload and overvoltage protection to safeguard connected equipment, adjustable output voltage for fine-tuning, and cooling via free air convection, certified to withstand mechanical vibration up to 5G. The power supply has passed international safety and EMC standards such as UL 62368-1, TUV EN 62368-1, CSA C22.2, and others. This ensures dependable performance in industrial machinery, control systems, communication devices, and laboratory instruments.

Applications include use in industrial machines, communication systems, automation controls, and embedded power modules where stable and reliable DC power sources are essential. High-efficiency up to 84.5% reduces energy loss.

Universal input voltage range (88 - 264VAC, 125 - 373VDC) supports worldwide operation. Compact chassis mount design for easy installation in confined spaces. Wide operating temperature range (-25°C to 70°C) fits diverse environments.

Overload and overvoltage protection enhances safety and reliability. Adjustable output voltage from 10.8V to 13.2V allows precise control. Cooling by free air convection and vibration resistance up to 5G. Certified to international safety and EMC standards (UL, TUV, CSA, BSMI, CCC, EAC).

Lightweight and compact, weighing approximately 300 grams.

Environmentally compliant and RoHS certified, the MEAN WELL RS-35-12 power supply is an excellent choice for industrial, laboratory, construction, and commercial power distribution needs. Browse the Electronics & Electricals category for more power supply solutions on EnvMart.
