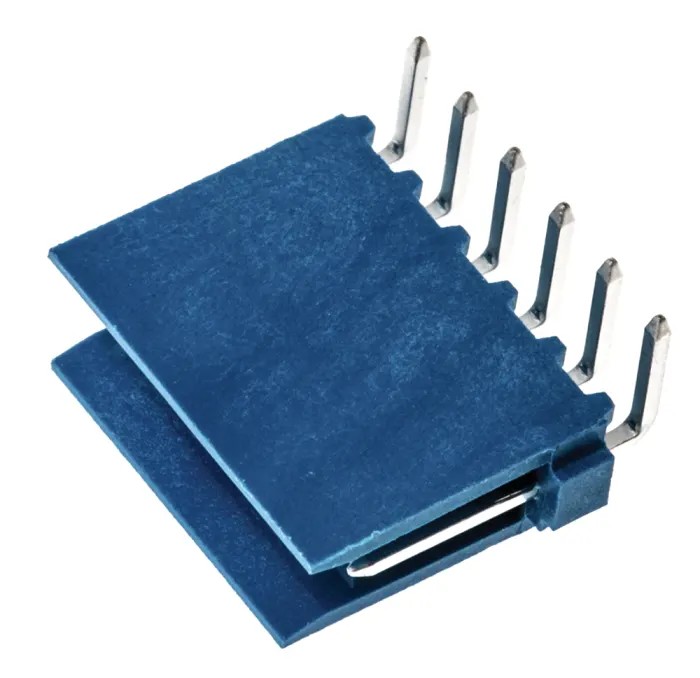

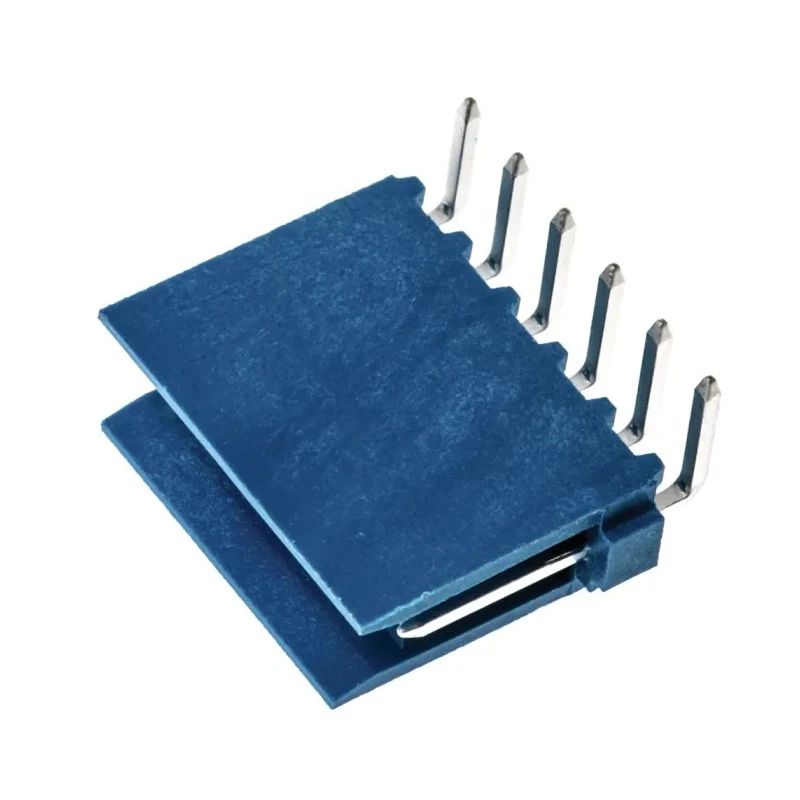

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, Shrouded HE14

TE Connectivity HE14 is a shrouded right angle through hole PCB header from the AMPMODU HE14 series designed for industrial and electronic applications.

The header features 6 male contacts in a single row with a standard 2.54 mm pitch, enabling consistent and reliable wire-to-board connections. The high temperature thermoplastic housing is UL 94V-0 rated, ensuring flame retardance and durability in harsh environments. The shrouded design protects the pins from mechanical damage and provides polarization to prevent incorrect mating. An integrated friction lock mechanism further secures the connection.

Constructed with phosphor bronze contacts plated with tin, the contacts offer excellent conductivity and corrosion resistance. This connector is rated for currents up to 3A and voltages up to 500V, making it suitable for a wide range of industrial, automotive, telecommunications, medical instruments, and computing applications.

The operating temperature range of -40°C to 105°C supports usage in both low temperature and high heat conditions. The right angle orientation and through hole mounting style allow easy integration on printed circuit boards, supporting automated manufacturing processes.

AMPMODU HE14 interconnect system components such as IDC receptacle assemblies, housings, and crimp contacts can be combined with this header to create versatile and reliable wiring solutions for automation and control systems.

High temperature thermoplastic housing rated UL 94V-0. Shrouded and polarized for pin protection and correct mating. 6 male contacts, 2.54 mm pitch, single row configuration. Phosphor bronze contacts with tin plating for durability.

Rated for 3A current and 500V voltage applications. Operating temperature range: -40°C to 105°C. Right angle orientation, through hole mount type. Integrated friction lock for secure connections. Compatible with AMPMODU HE14 IDC receptacles and accessories.

This product is ideal for industrial controls, automotive electronics, telecommunications, computing, medical devices, storage equipment, and test instrumentation requiring dependable PCB connector solutions.
