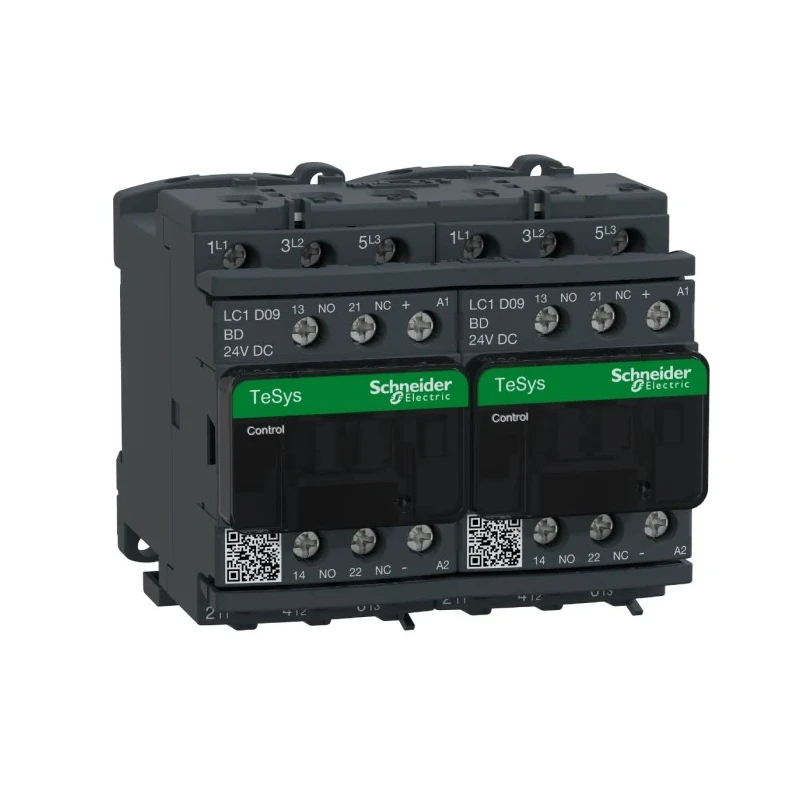

Schneider Electric Motor Control Contactor LC2D09BD, 24V DC Coil, 3-Pole, 9A, 4 kW, 690V AC LC2D09BD

Schneider Electric LC2D09BD is a high-reliability motor control contactor featuring a 24V DC coil and a 3-pole configuration suitable for both motor and resistive load control applications. It is rated for 9A operational current and supports power ratings up to 4 kW at 690V AC, making it ideal for industrial automation and manufacturing environments.

This contactor incorporates fast-acting contacts with a response time under one second, significantly reducing arcing and protecting connected equipment. The built-in bidirectional peak limiting diode suppressor offers enhanced short circuit protection. It supports various operational conditions with a minimum temperature of -25°C and maximum of 50°C, accommodating a wide range of environmental requirements.

Mounting options include convenient DIN rail installation with IP20 finger-safe screw clamp terminals that support both North American and International terminal markings, ensuring secure and shock-resistant electrical connections. With 2 auxiliary contacts (1 NO and 1 NC) for expanded control capacity and a pre-installed interlock for safety, the LC2D09BD is optimized for versatile industrial use.

Constructed from flame-retardant materials and supplied with a protective cover, this contactor is designed for durability and environmental resistance. It achieves impressive mechanical endurance rated for 30 million cycles, assuring longevity in demanding settings such as pharmaceutical manufacturing, aerospace technology, warehouses, and automated production lines.

The LC2D series reversing contactors from Schneider Electric integrate long mechanical and electrical life with easy, quick setup while complying with a wide range of international standards including CCC, CSA, EAC, IEC, RoHS, and UL. This makes it an excellent choice for industrial control applications requiring dependable switching for motors and resistive loads.

Features a 3-pole design with a 9A contact current capacity. Rated for 4 kW power at 690V AC contact voltage for reliable performance. Includes 3 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 NC.

Mountable on DIN rail with screw clamp terminals for secure and vibration-resistant wiring. Operational temperature range from -25°C to 50°C for versatile industrial use. Built-in bidirectional peak limiting diode suppressor enhances protection against short circuits.

Designed with flame-retardant materials and supplied with a protective cover to minimize environmental damage. Mechanical durability rated for up to 30 million operating cycles, ensuring long service life. Complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.

This contactor is suitable for diverse industrial applications including pharmaceutical manufacturing, industrial automation, aerospace technology, warehouses, and packaging facilities. It can be mounted on panels or DIN rails for installation flexibility.
