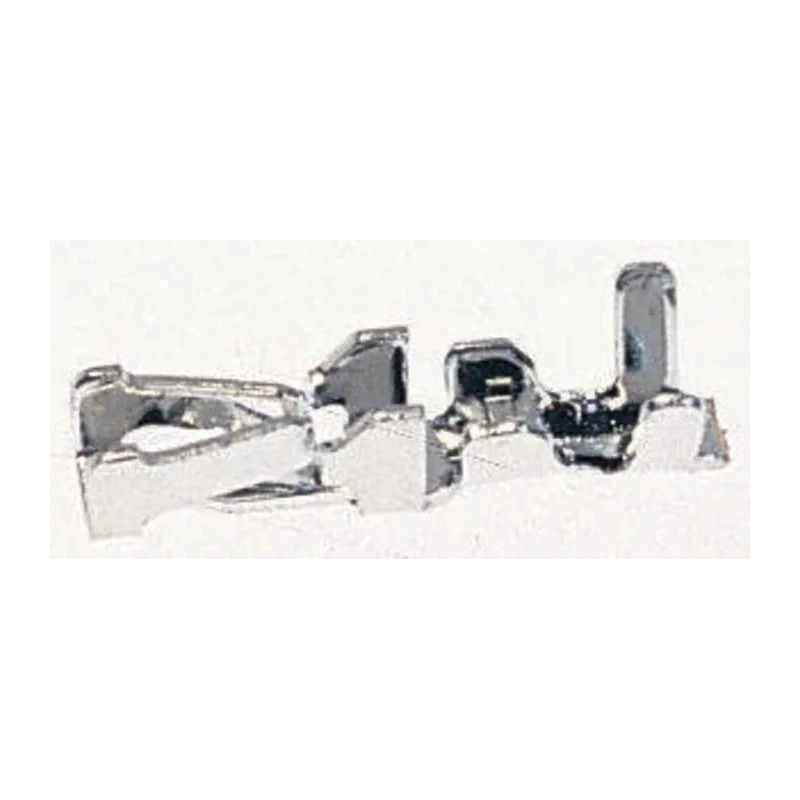

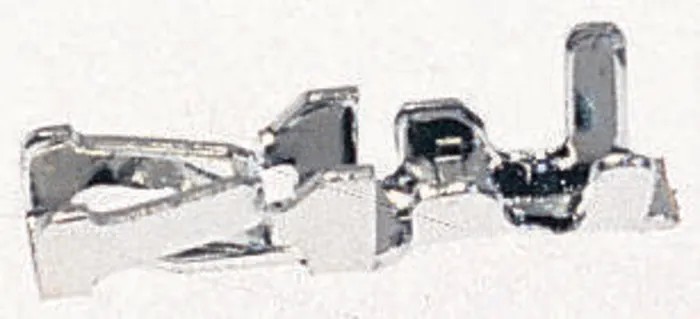

HARWIN M22 Series Female Crimp Terminal, 30 AWG Min Crimp, 24 AWG Max, Tin Plated Phosphor Bronze M22-3050046

HARWIN M22-3050046 Female Crimp Terminal is a precision-engineered connector contact designed to provide reliable electrical connections in electronic components and PCB wiring assemblies. Featuring phosphor bronze contact material with tin plating, this terminal offers excellent conductivity and corrosion resistance for long-term durability in industrial and commercial environments.

The terminal supports a wire gauge range from 30 AWG minimum to 24 AWG maximum, enabling compatibility with a variety of wire sizes commonly used in low current electrical connections. The crimp termination type ensures robust mechanical retention and stable electrical contact when used with M22 series connector housings.

Rated for 1 ampere current capacity, this female crimp terminal safely handles typical signal and low-power electrical loads. Designed to operate within a temperature range of -25°C up to 85°C, it is suitable for use in diverse electronic and electrical applications including industrial automation, control systems, instrumentation, and general electronics manufacturing.

The contact's maximum resistance is limited to 20 milliohms, maintaining effective signal integrity and power transmission. These specifications make it well-suited for precise industrial and laboratory electronic connector assemblies where dependable performance is critical.

The product is manufactured in Taiwan, reflecting adherence to established quality standards and consistent manufacturing excellence. Its compatibility with HARWIN M22 connector housings allows easy integration into existing wiring and PCB connector systems.

The terminal is made of phosphor bronze with tin plating for excellent conductivity and corrosion resistance. It operates safely at a current rating of 1A, suitable for low power electronic assemblies. The crimp termination ensures secure mechanical and electrical bonds with the wire.

Supports operating temperatures from -25°C to 85°C, providing wide application versatility. Compatible specifically with M22 connector housing systems, optimizing connector assembly performance. The maximum contact resistance is maintained below 20 milliohms for efficient signal transmission.

Manufactured in Taiwan, ensuring product quality and reliability.

This female crimp terminal is ideal for use in the electronics and electrical industries including manufacturing, assembly, repair, and maintenance of PCB mounted connectors. It supports applications in industrial control, automation, instrumentation, and other commercial electronic equipment requiring secure wire-to-board connections.
