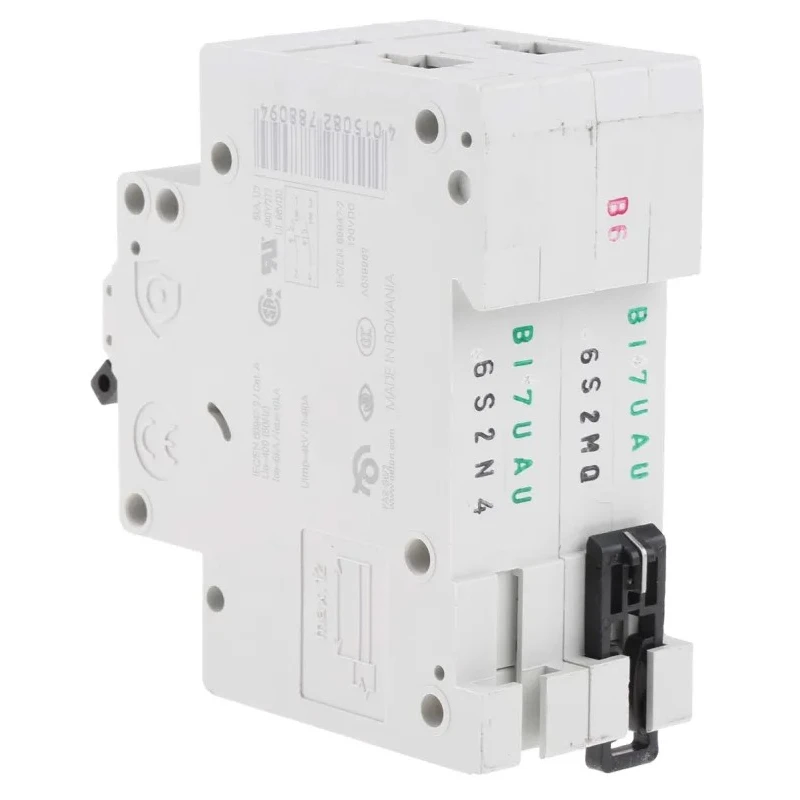

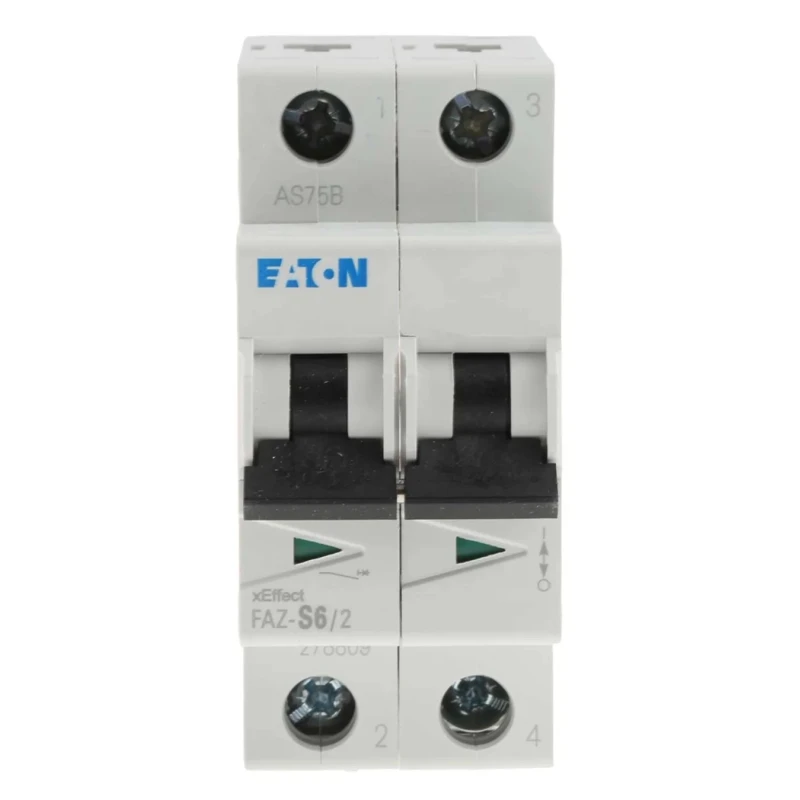

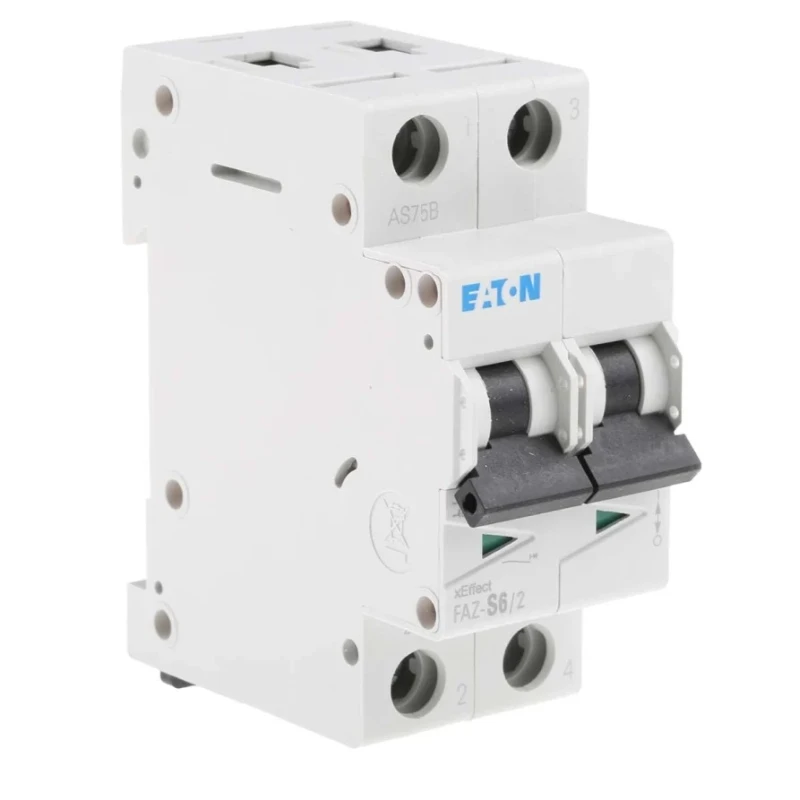

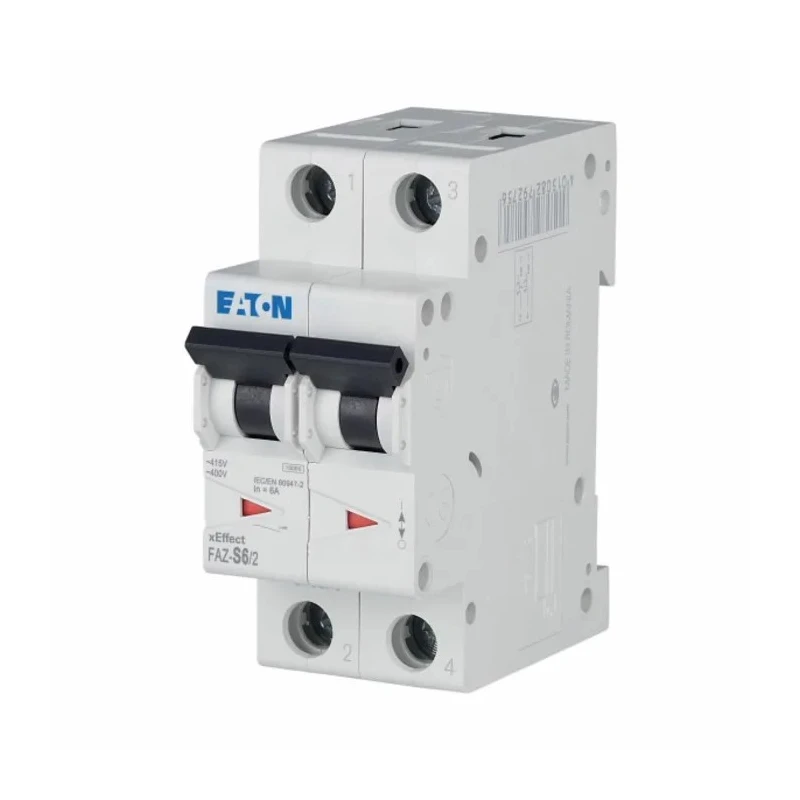

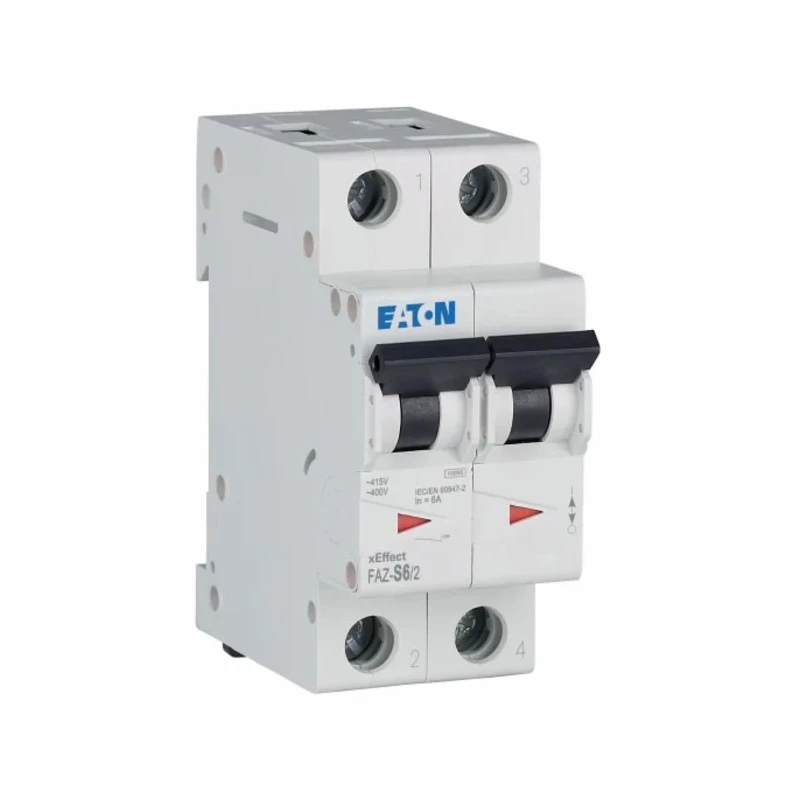

Eaton xEffect Miniature Circuit Breaker, 2-Pole, 6A, Type S, 230V AC, 60V DC, 10 kA Breaking Capacity 278809 FAZ-S6/2

Eaton 278809 FAZ-S6/2 Miniature Circuit Breaker (MCB) is a high-quality electrical protection device designed for industrial, commercial, and residential applications where reliable overcurrent protection is critical. This 2-pole MCB is rated at 6A with a Type S tripping characteristic, making it ideal for circuits requiring a robust breaking capacity of up to 10 kA.

The MCB mounts easily on standardized DIN rails, allowing for fast installation and integration into existing electrical panels. It supports alternating current (AC) at 230V and direct current (DC) up to 60V, offering versatility across various power supply types.

Equipped with a thermal magnetic trip mechanism, the breaker responds instantly to dangerous current spikes, protecting connected machinery and wiring against damage. The twin-purpose terminal simplifies wiring, enhancing connection security and reducing installation time.

This device features a compact form factor with width of 35mm and depth of 74mm, suitable for space-constrained electrical enclosures. Its low power dissipation of just 4.4W results in minimal heat generation, promoting energy efficiency during operation.

The front-mounted toggle switch provides convenient reset functionality, allowing operators to quickly restore power after fault conditions without replacing components. The IP20 rating protects internal parts from solid objects while maintaining accessibility for routine maintenance.

Designed to operate reliably in extreme environments, the breaker performs within a temperature range from -40°C to +75°C, ensuring dependable operation across a wide variety of industrial and commercial settings.

Features a type S tripping characteristic allowing interruption at 13 to 17 times the rated current. Designed for DIN rail mounting, enabling quick and easy installation. Supports AC voltages up to 230V and DC voltages up to 60V.

Thermal magnetic tripping mechanism ensures rapid response and protection. Compact 35mm width and 74mm depth dimensions fit standard electrical enclosures. Twin-purpose terminal design simplifies wiring and connection. Energy-efficient design with low heat loss of 4.4W.

Durable toggle switch reset actuator allows quick reactivation after faults. IP20 rated enclosure offers protection against solid particle intrusion. Wide operating temperature range from -40°C to +75°C suitable for harsh conditions.

This Eaton Miniature Circuit Breaker is suitable for protection of electrical circuits in industrial automation, power supply distribution, manufacturing plants, and commercial buildings. It helps prevent equipment damage caused by overloads and short circuits, ensuring safety and continuity of operations.
