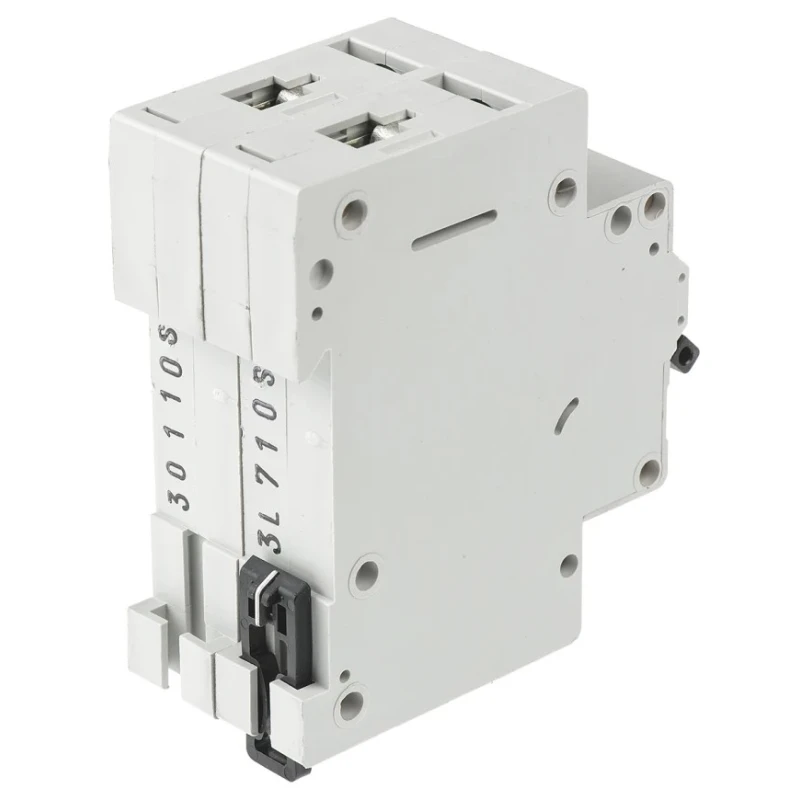

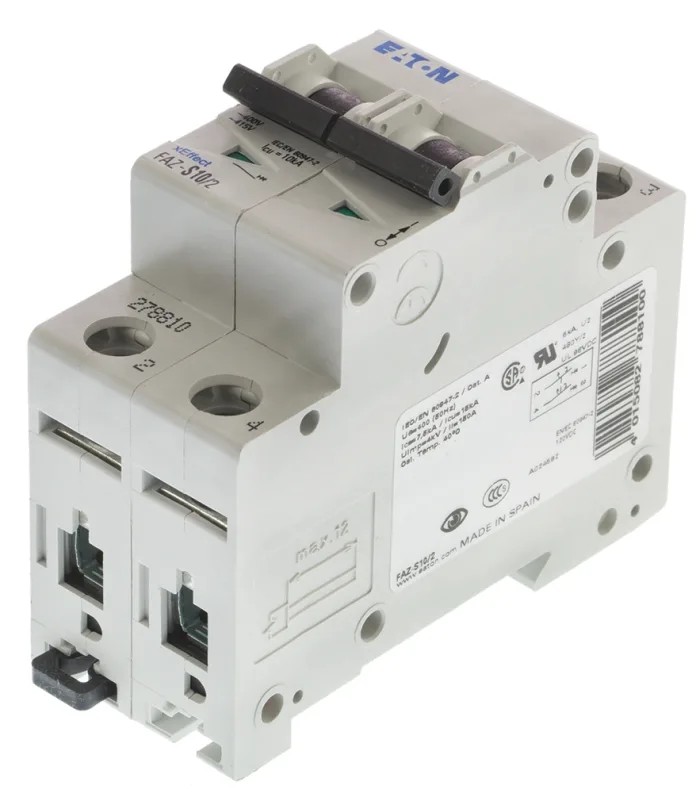

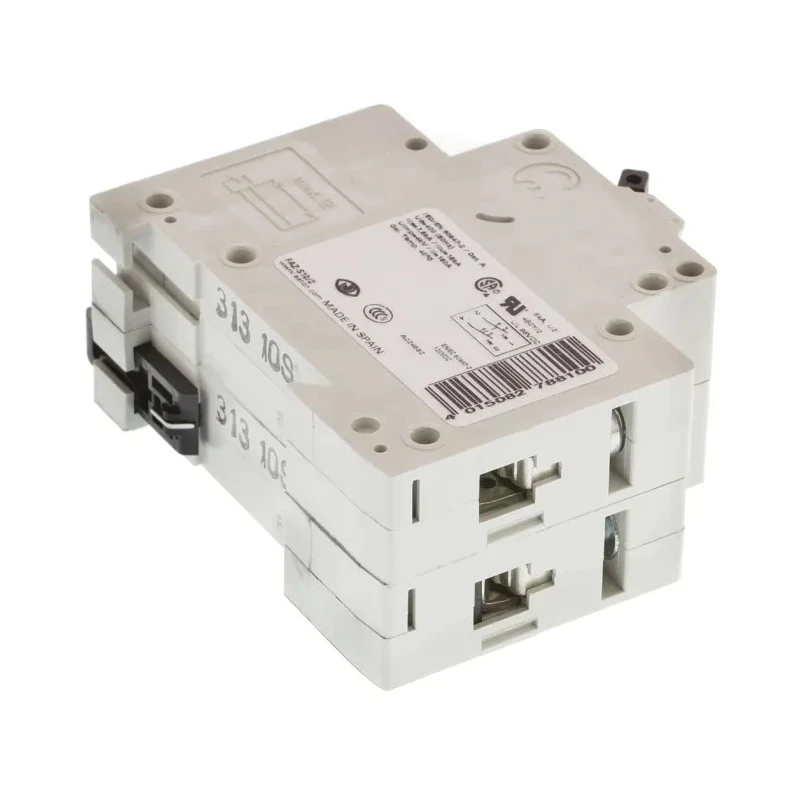

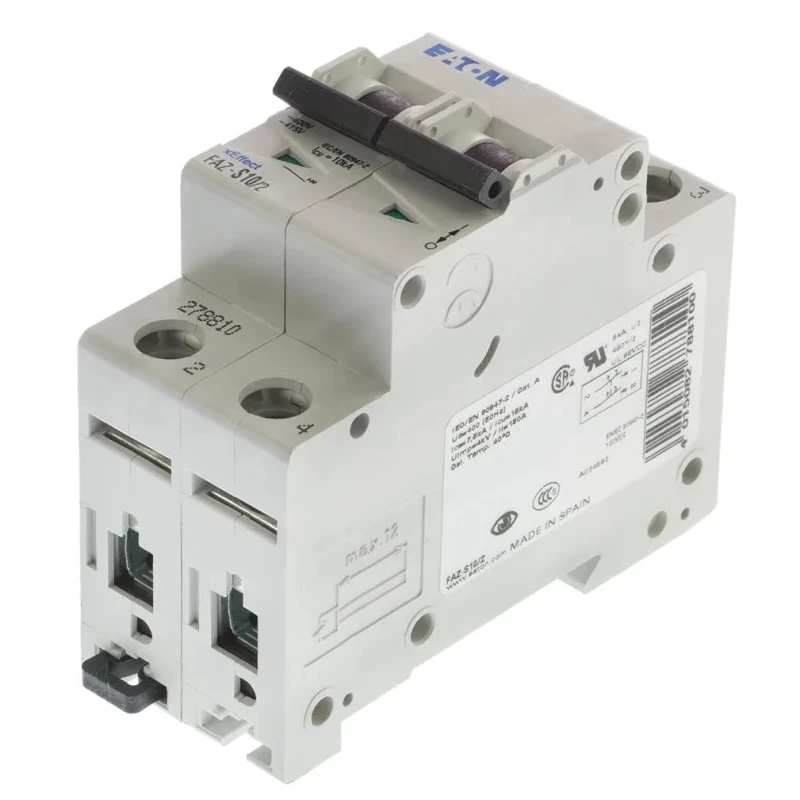

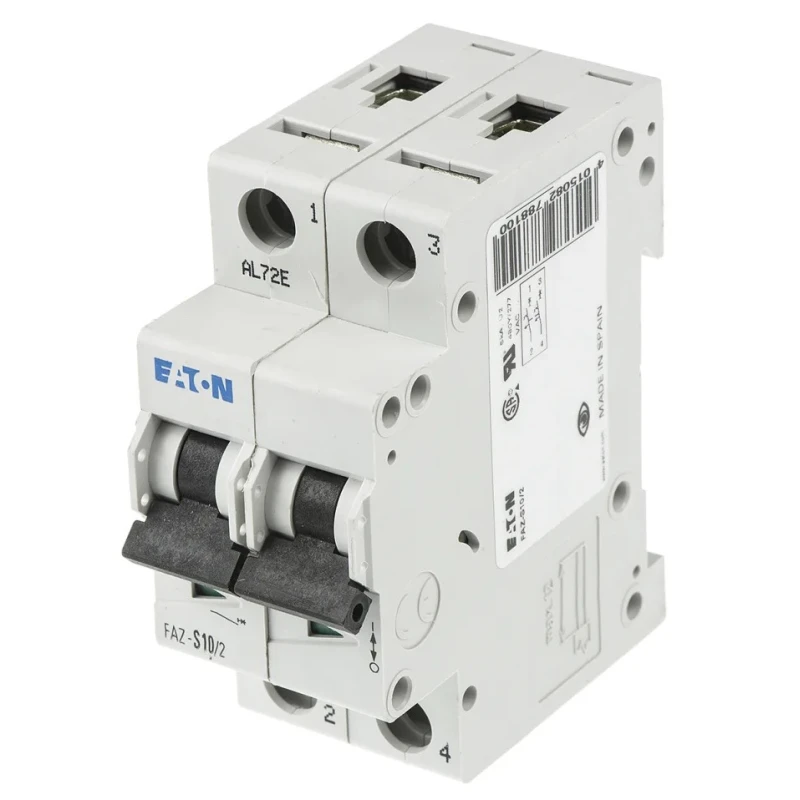

Eaton xEffect Miniature Circuit Breaker 2-Pole 10A Type S 230V AC 10 kA Breaking Capacity 278810 FAZ-S10/2

Eaton 278810 FAZ-S10/2 Miniature Circuit Breaker is a 2-pole device rated at 10 amperes with type S tripping characteristics, operating at 230 volts AC and providing a breaking capacity of 10 kA. It belongs to the xEffect FAZ series designed for fast short-circuit current interruption with current limiting technology to reduce damage to downstream equipment and ensure safe electrical distribution.

This miniature circuit breaker (MCB) is ideally suited for use in electrical distribution boards and control circuits in industrial, commercial, and residential installations. It offers robust protection by combining thermal and electromagnetic trip releases to safeguard circuits against overloads and short-circuits effectively.

The device features a compact and space-saving design with a width of 35 mm and depth of 74 mm, facilitating easy installation on standard DIN rails with twin-purpose terminals that allow wiring flexibility from line or load sides.

Additional safety features include an IP20 finger-safe rating, a toggle switch with clear front contact position indication, and a trip-free mechanism preventing manual override of the tripping function. The breaking capacity rating of 10 kA ensures reliable interruption of fault currents up to this value, protecting connected equipment.

The FAZ series supports modularity with available single pole, two pole, and three pole widths, aiding efficient panel design. Eaton's xEffect range assures compliance with industrial standards like IEC 60947-2, providing peace of mind in demanding electrical applications.

Two pole configuration with 10A current rating ensures circuit reliability. Type S tripping characteristics provide selective protection for specific applications. High breaking capacity of 10 kA for effective fault current interruption.

DIN rail mountable with twin-purpose terminal connections for ease of installation. IP20 protection rating offers finger safety to operators. Compact dimensions optimize space within electrical panels. Thermal-magnetic tripping mechanism combines overload and short-circuit protection.

Toggle switch with clear contact position indication improves user interface. Compliant with IEC 60947-2 standards for low voltage circuit breakers.

This Eaton Miniature Circuit Breaker is suitable for electrical installers, maintenance engineers, and system designers requiring dependable protective devices for electrical distribution and control systems in industrial, commercial, and residential environments. Browse further Eaton products and circuit breakers on EnvMart to meet your full electrical protection needs.
