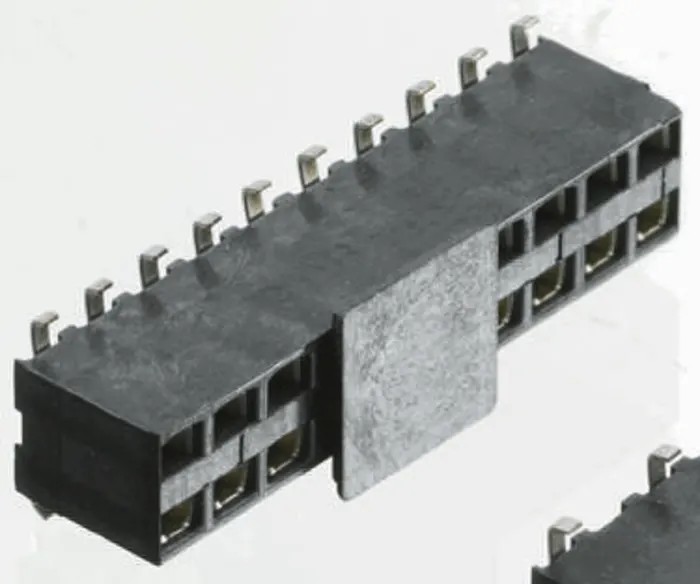

TE Connectivity AMPMODU HV100 Series 12-Contact 2 Row Straight Surface PCB Socket, 2.54 mm Pitch HV100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a total of 12 female contacts arranged in 2 rows.
- It is designed for surface mounting on PCBs with a straight orientation.
- Operating voltage is rated at 250V with a maximum current of 12A per contact.
- The housing is made from durable polyamide material for long-term reliability.
- The contact pins are bronze plated with tin for corrosion resistance.
- Suitable for operating temperatures ranging from -65°C to 125°C.
- Connector system supports board-to-board connections with end stackable design.
- Ideal for various industrial, electronic component assembly, and manufacturing applications.
Product Description
TE Connectivity HV100 series 12-contact 2 row straight surface PCB socket (model HV100) is engineered for reliable and precise board-to-board connections in demanding electronic assembly environments. It features a 2.54 mm pitch with a solder termination style, making it ideal for surface PCB mounting applications.
The socket has 12 female contacts arranged in two rows, constructed with bronze contacts plated with tin to ensure excellent conductivity and resistance to corrosion under operating conditions between -65°C and 125°C. The polyamide housing delivers durable insulation and mechanical strength.
This connector supports a maximum current rating of 12A and a voltage rating of 250V, making it suitable for a wide range of industrial, electronics manufacturing, and telecommunications applications that require dependable and compact connector solutions.
The straight orientation and end stackable configuration optimize PCB space and allow flexible assembly options. The connector system conforms to the AMPMODU HV100 series, widely respected for its modularity and reliability in various industrial sectors.
The socket contains 12 female contacts in 2 rows. Pitch spacing of 2.54 mm supports standard PCB layouts. Solder termination provides secure mounting and electrical contact. Polyamide housing ensures long-term durability and insulation.
Contact plating with tin prevents corrosion and maintains conductivity. Voltage rating up to 250V and current carrying capacity of 12A. Operating temperature range from -65°C to 125°C accommodates harsh environments. End stackable design optimizes PCB footprint and assembly.
Ideal for industrial electronics, telecommunications, and manufacturing. New product condition ensures uncompromised quality and performance.
Discover the comprehensive TE Connectivity AMPMODU HV100 series and related PCB Sockets and connectors on EnvMart to meet your high-reliability industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB socket is 12A per contact.
The voltage rating for this socket is 250V.
This model operates within a temperature range of -65°C to 125°C.
The socket features a total of 12 female contacts arranged in 2 rows.
The housing of this PCB socket is made from polyamide, providing insulation and mechanical strength.
This socket uses a solder termination style for secure mounting and electrical contact.
The pitch spacing of the contacts in this socket is 2.54 mm.
Yes, this connector system supports board-to-board connections with an end stackable design.
This socket is suitable for various industrial, electronics manufacturing, and telecommunications applications.
The contact pins are made of bronze and plated with tin to enhance conductivity and corrosion resistance.
The orientation of this socket is straight, designed for surface mounting on PCBs.
The country of origin for this product is India.
