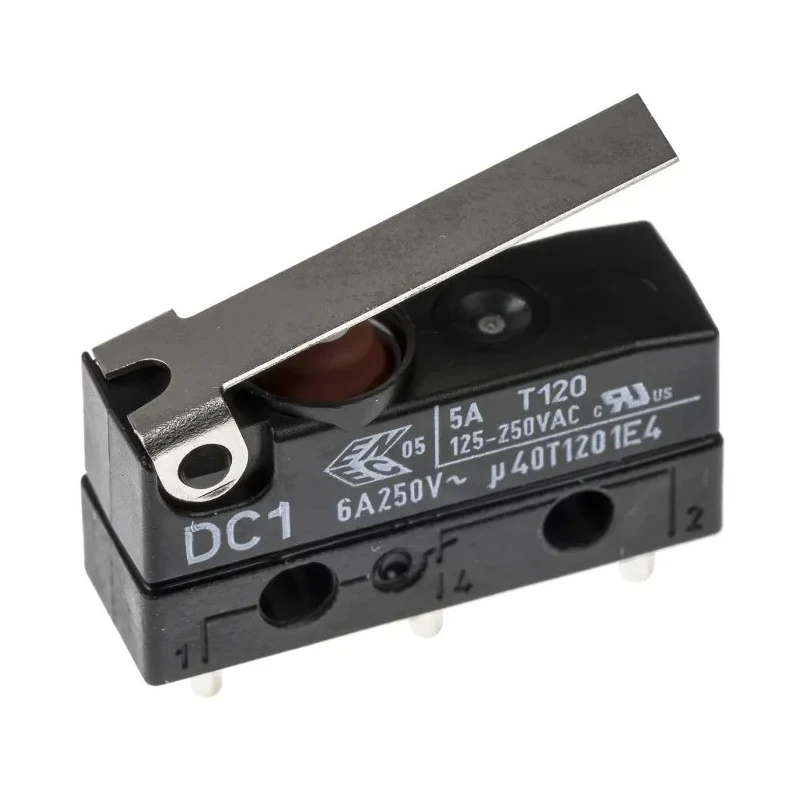

ZF Short Lever Micro Switch Solder Terminal 6A 250V AC SPDT IP6K7 DC1C-A1LB

Free Delivery in India | Lowest Global Shipping Charges

ZF Short Lever Micro Switch Solder Terminal 6A 250V AC SPDT IP6K7 DC1C-A1LB



Category Micro Switches Brand ZF Condition New

Specifications

Country of Origin	Germany
Brand	ZF
Model	DC1C-A1LB
IP Rating	IP6K7
Housing Material	Polybutylene Terephthalate, Polyethylene Terephthalate
Series	DC
Maximum Operating Temperature	120°C
Contact Configuration	SPDT
Actuator Type	Short Lever
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Contact Current	6A
Operating Force	0.78N
Mechanical Life	1000000Operations
Contact AC Voltage	250V ac
Microswitch Type	DC Subminiature
ZF Short Lever Micro Switch, Solder Terminal, 6A, 250 V ac, SPDT, IP50Brand	ZF

Key Features

The switch utilizes a short lever actuator with solder terminal connections for reliable mounting.
Constructed with polybutylene terephthalate and polyethylene terephthalate housing materials ensuring durability and UL 94V-0 flame resistance.
Features a robust mechanical life rating of 1,000,000 operations suitable for demanding industrial applications.
Operating force is low at 0.78 N to allow precise actuation in automation systems.
Rated to operate continuously within -40°C to 120°C temperature range for versatile environmental compatibility.

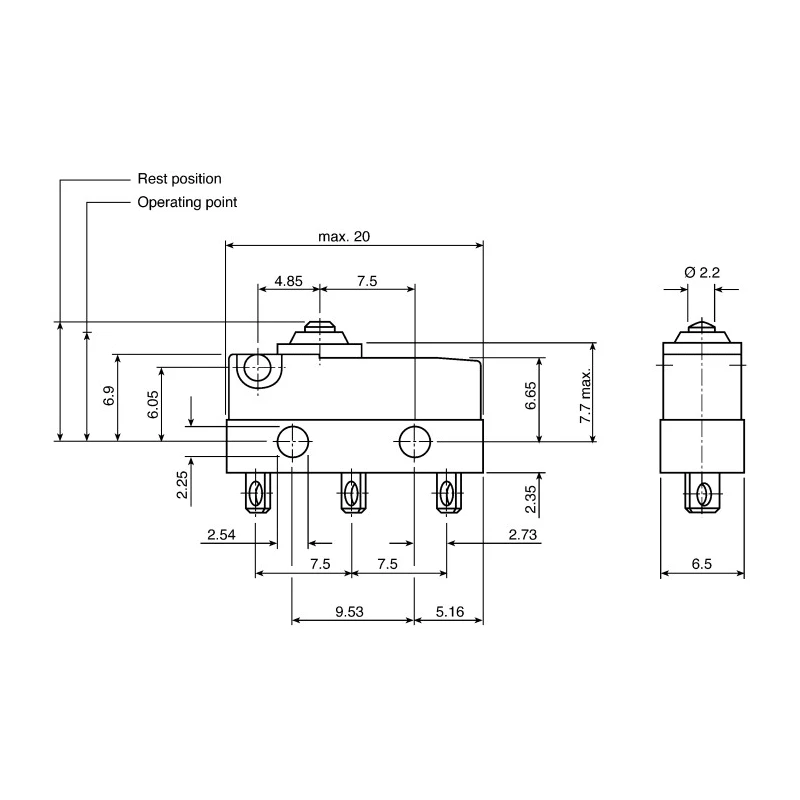

Compact form factor with dimensions approximately 11.65mm height, 20mm width, and 6.5mm depth.
Designed and manufactured in Germany with RoHS compliance and approvals including ENEC and UL certifications.
IP6K7 rated sealed construction ensures resistance to dust and jetting water ingress protection.

Product Description

The ZF DC1C-A1LB Short Lever Micro Switch is engineered for precise electrical switching operations in industrial, automation, and control systems. This micro switch is designed with a short lever actuator and solder terminal type connections, offering a contact current rating of 6A at an alternating current voltage of 250 V AC. The switch’s SPDT (Single Pole Double Throw) contact configuration allows for versatile circuit control applications.

Constructed with high-quality materials including polybutylene terephthalate (PBT) and polyethylene terephthalate (PET) for housing, and POM and PBT for the actuator, the device exhibits strong mechanical and thermal resilience. The materials used meet UL 94V-0 flame retardancy standards enhancing safety in electrical installations.

The mechanical life expectancy of this switch is rated at one million operations, demonstrating excellent durability and reliability for long-term usage in manufacturing and automation equipment. Operating force of just 0.78 N ensures responsive actuation suitable for precise control systems.

Rated IP6K7, this micro switch is sealed against dust ingress and powerful water jets, ideal for harsh industrial environments or outdoor installation. It performs reliably over a temperature range from -40°C to 120°C, supporting broad application scopes including HVAC, machinery controls, and process automation.

Its compact dimensions of approximately 11.65mm height, 20mm width, and 6.5mm depth allow easy integration into equipment panels and control assemblies where space is limited. Certified to international standards including RoHS, ENEC, and UL, and manufactured in Germany, this micro switch meets rigorous quality benchmarks.

The switch utilizes a short lever actuator with solder terminals for dependable electrical contacts. Housing made of PET/PBT ensures flame retardancy and mechanical toughness. Sealed to IP6K7 standards providing high ingress protection in demanding environments.

Compact size fits into tight electrical control assemblies. Suitable for industrial automation, HVAC systems, and general electrical controls. RoHS compliant and certified with ENEC and UL approvals. Mechanical life rated at one million operations for extended durability.

Explore ZF Micro Switches and related electrical components at EnvMart for reliable industrial automation and control solutions.
