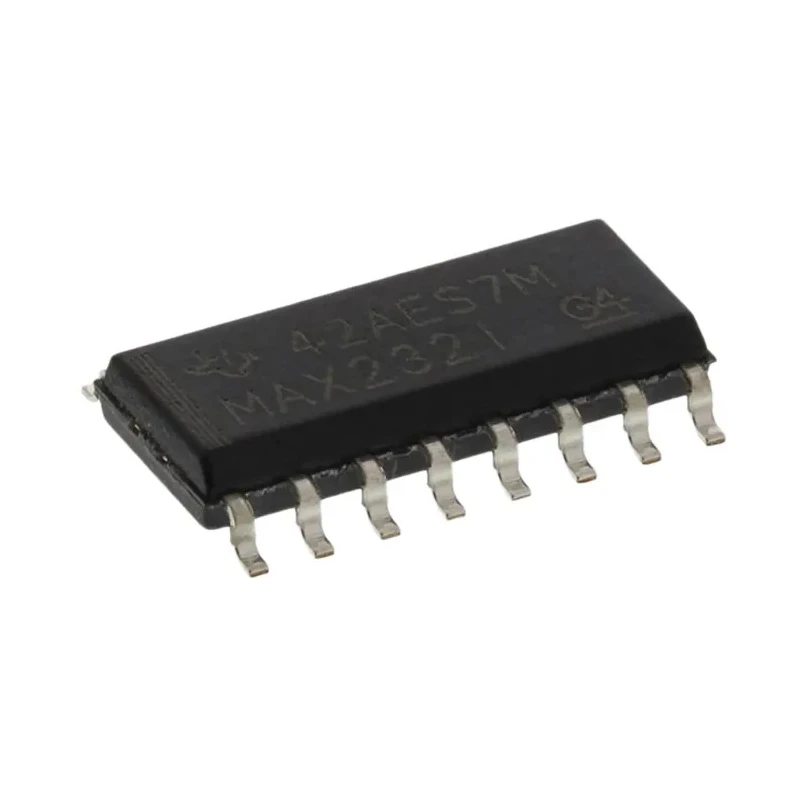

Texas Instruments 2-Channel Line Transceiver CMOS Inverting 16-Pin SOIC MAX232ID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 32mm |
| Length | 340.5mm |
| Model | MAX232ID |
| Width | 336.1mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | MAX232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Driver, Driver, Converter |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 10mA |
| Maximum Propagation Delay Time @ CL | 500ns |
| Supply Current | 10mA |
| Maximum Low Level Output Current | -10mA |
Key Features
- Suitable for RS-232 line transceiver applications with dual line drivers and receivers.
- Constructed with CMOS technology supporting TTL logic family.
- Supports single ended input and CMOS output signals with inverting polarity.
- Operates within supply voltage range from -0.3V to 6V for versatile use.
- Surface mount type packaged in SOIC with 16 pins for easy PCB integration.
- Designed to operate between temperatures of -40°C to 85°C for industrial reliability.
- Maximum high-level output current is 10mA and low-level output current is -10mA.
- Maximum propagation delay time under load is 500ns ensuring fast signal response.
Product Description
Texas Instruments MAX232ID Line Transceiver is a CMOS based dual channel IC designed for RS-232 communication line interface. The device features an inverting logic function providing both line driver and receiver capabilities. Housed in a 16-pin SOIC surface mount package, this component integrates easily into modern PCB designs requiring standards compliance to TIA/EIA-232-F and ITU v.28.
This line transceiver supports single-ended inputs and CMOS outputs and operates over a supply voltage range from -0.3V to 6V. It offers a maximum high-level output current of 10mA and a low-level output current of -10mA, with typical supply current of 10mA, facilitating reliable signal integrity and low power consumption solutions.
The transceiver is capable of functioning within extended temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial applications. Additionally, it supports fast signal timing with a maximum propagation delay time of 500 nanoseconds, ensuring responsive communication interfaces.
Designed to meet or exceed the RS-232 standards, these dual transceivers include internal ESD protection mechanisms, enabling robust performance in electrically noisy environments.
Supports dual RS-232 compliant line drivers and receivers in one package. CMOS/TTL logic compatible for flexible digital system integration. 16-pin SOIC package designed for surface mounting. Wide operating temperature range suitable for industrial applications.
Compliant with TIA/EIA-232-F and ITU v.28 standards for serial communication. Low power consumption with 10mA supply current. Fast switching speed with 500ns maximum propagation delay. Includes ESD protection up to ±15 kV Human-Body Model and ±8 kV Contact Discharge.
Ideal for use in communication equipment, computer interfaces, and embedded systems.
This Texas Instruments MAX232ID 2-channel line transceiver is part of the widely used MAX232 series, recognized for dependable serial data communication in electronics and industrial instrumentation.
Explore the wide range of semiconductor interface ICs at EnvMart for integrating robust and efficient communication solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 6V.
It operates within a temperature range of -40°C to 85°C.
This unit supports 2 channels, providing both line driver and receiver capabilities.
The output type is CMOS, compatible with TTL logic family.
The maximum propagation delay time under load is 500 nanoseconds.
The package has a pin count of 16.
It is housed in a 16-pin SOIC surface mount package for easy PCB integration.
The maximum high-level output current is 10mA.
This model supports single-ended input signals.
Yes, it is compliant with TIA/EIA-232-F and ITU v.28 standards for serial communication.
It performs inverting logic functions as a line driver and receiver.
The typical supply current is 10mA, facilitating low power consumption.
