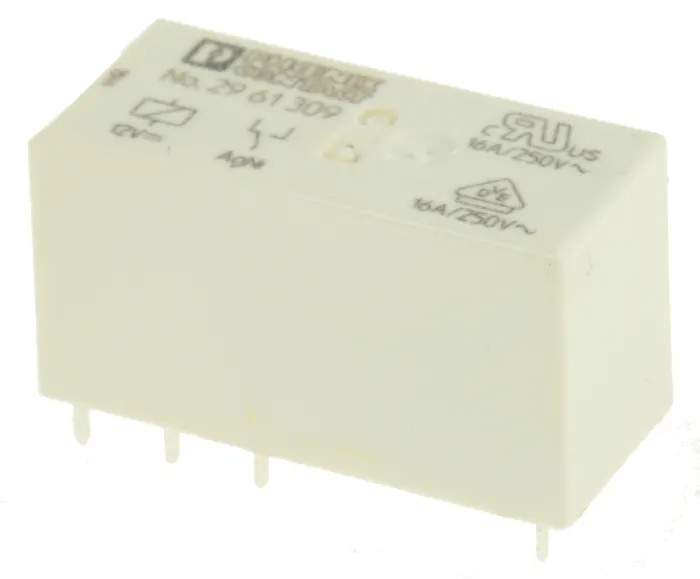

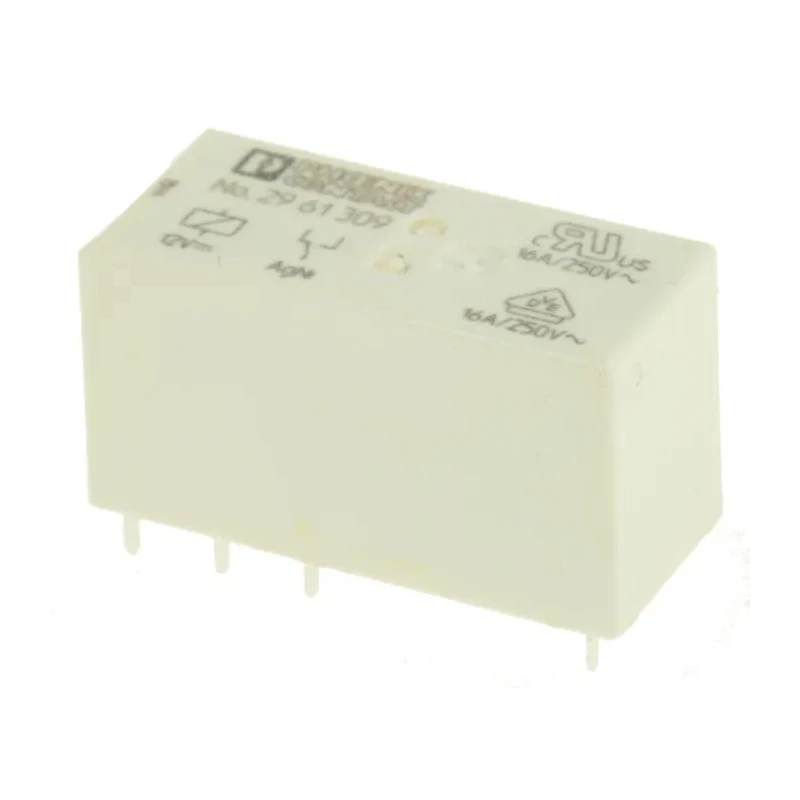

Phoenix Contact PCB Power Relay 12V dc Coil 16A Switching Current SPDT 2961309

Phoenix Contact 2961309 PCB Power Relay is a high-quality, non-latching electromechanical relay designed for industrial, automation, and electrical applications requiring reliable switching performance. It features a 12V DC coil and supports a switching current of up to 16A, making it suitable for controlling moderately high power loads on printed circuit boards.

This SPDT (Single Pole Double Throw) relay provides versatile switching capability, allowing it to switch between normally closed (NC) and normally open (NO) contacts. Its compact size, with dimensions of 12.7mm in length, 15.7mm in width, and 29mm in height, allows for easy integration onto PCB layouts. The relay’s coil resistance of 360 ohms and coil power rating of 2kW contribute to stable and efficient operation.

The relay supports a switching AC voltage and DC voltage of up to 250V each, with a silver alloy contact material that ensures excellent electrical conductivity and resistance to wear over extended use. Its wide operating temperature range from -40°C to 85°C enables reliable functioning in harsh environmental conditions.

The non-latching mechanism means the relay automatically returns to its default position when coil power is disconnected, making it ideal for push-button controls and microcontroller inputs where automatic reset functionality is required. Additionally, the relay meets recognized standards such as EN, IEC, RoHS, VDE, and UL, ensuring compliance with international safety and environmental regulations.

Typical industrial use cases include automation systems, control panels, signal conditioning circuits, and general electrical switching applications in manufacturing and commercial environments.

12V DC coil voltage for standard control systems. SPDT contact configuration for flexible circuit switching. 16A switching current capacity suitable for power relay applications. Compact PCB mount design with precise dimensions.

Robust silver alloy contacts for durability and reliable conductivity. Wide temperature operating range supporting diverse environments. Non-latching relay type providing automatic reset functionality. Compliance with EN, IEC, RoHS, VDE, UL standards.

Efficient coil resistance and power characteristic ensuring low energy consumption. Manufactured in Austria, ensuring high quality and precision. Explore more Power Relays and automation components at EnvMart for your industrial and commercial needs.
