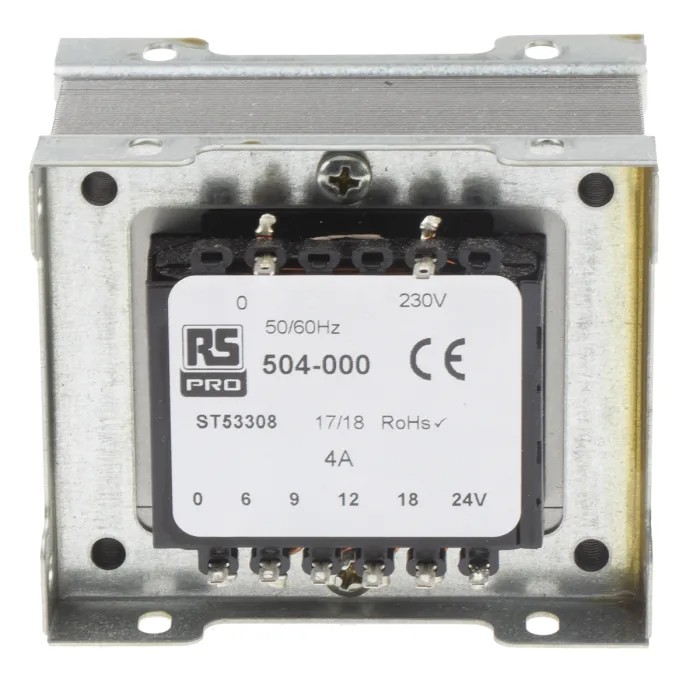

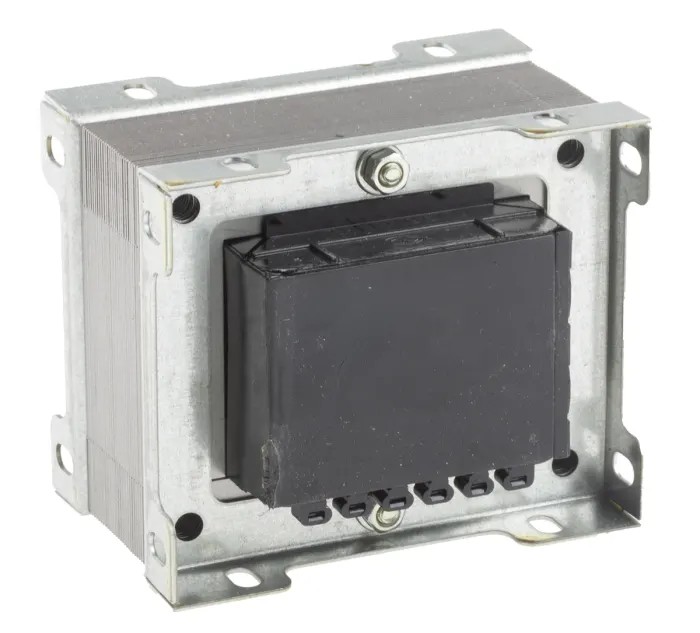

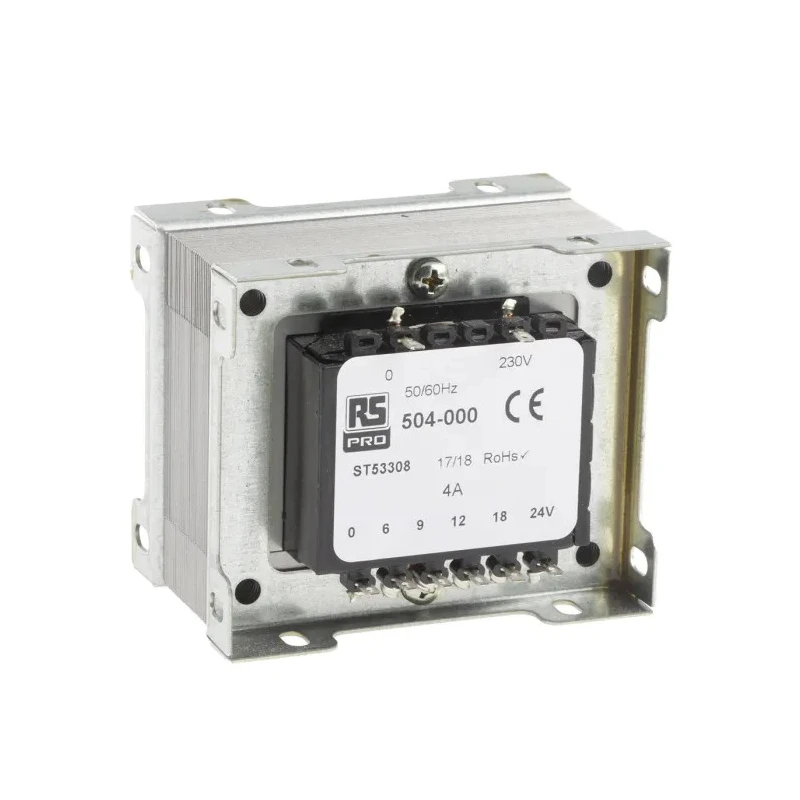

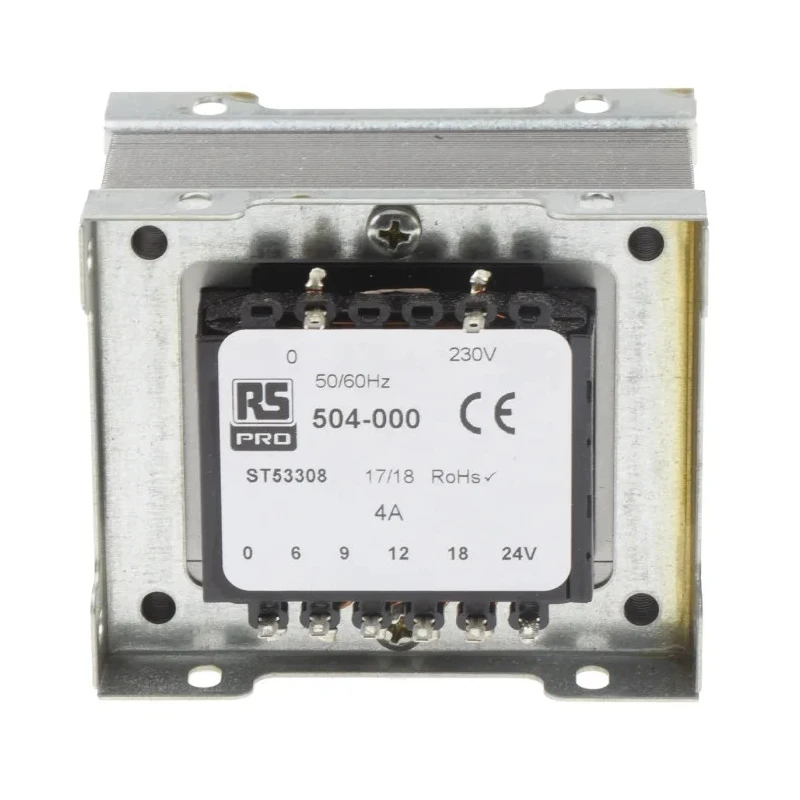

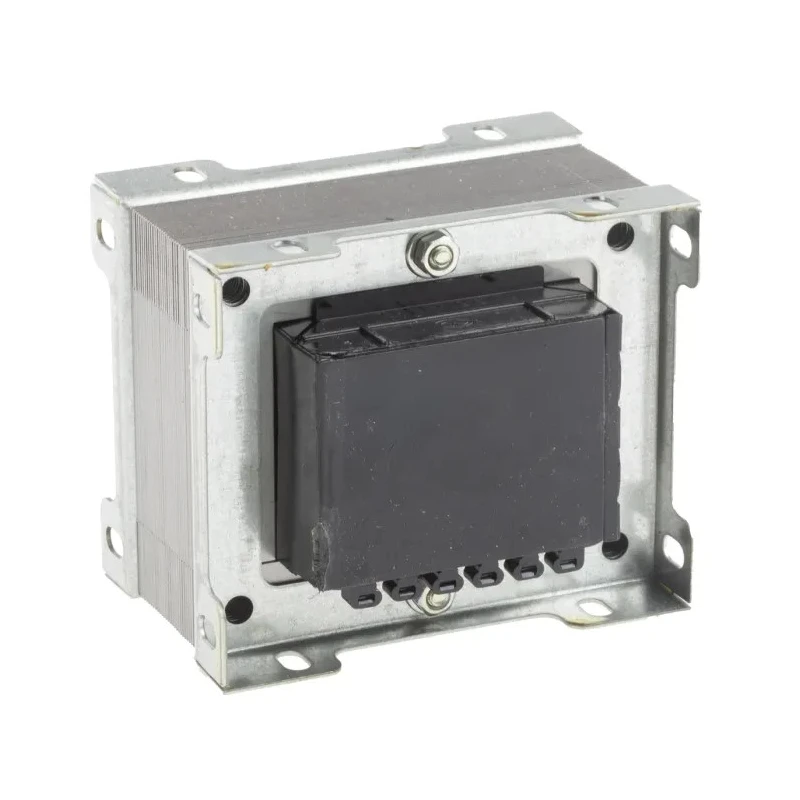

RS PRO 1 Output 100 VA Chassis Mount Transformer 230 V AC Power, IEC 61558-2-6 504-000

RS PRO 504-000 is a 1 output chassis mount transformer designed for converting 230 V AC primary voltage into safer secondary voltages with a power rating of 100 VA. It complies with the IEC 61558-2-6 standard, ensuring high safety and performance in electrical applications. This transformer is specifically engineered for industrial, laboratory, and commercial use where voltage transformation with minimal loss is critical.

Featuring a multi-tap secondary winding, the transformer provides versatile output voltages of 6 V AC, 9 V AC, 12 V AC, and 18 V AC, suitable for a range of electrical equipment and devices. The transformer utilizes a double-section bobbin design, allowing two independent secondary windings to be connected either in series or parallel, thereby enabling multiple circuit configurations according to application needs.

The chassis mount form factor, with dimensions of 89 mm length, 68 mm width, and 75 mm depth, allows for compact installation in electrical cabinets and control panels. It weighs 1.6 kg, making it robust yet manageable for various mounting arrangements. The operating temperature range is from -30°C up to 70°C, supporting a wide range of environmental conditions.

Electrical interference is minimized by fully shrouded bobbins, while varnish-impregnated coils enhance dielectric strength and reliability. The secure solder tag terminations provide durable electrical connections. Additionally, the transformer undergoes rigorous electrical and flash testing as per BS3535 and EN 60742 standards to ensure safety and compliance.

This product is commonly used in industrial automation, HVAC systems, laboratory equipment, commercial power supplies, and other applications requiring reliable voltage conversion and isolation with high safety standards. Its chassis mounting design supports easy integration and maintenance in complex electrical systems.

Single output for reliable power transformation. Operating frequency range from 50 to 60 Hz ensures wide compatibility. Compact dimensions: 89 mm length, 68 mm width, 75 mm depth. Operates safely between -30°C and 70°C temperature range.

Weight of 1.6 kg suitable for chassis mounting applications. Multi-tap secondary winding for selectable output voltages including 6 V AC, 9 V AC, 12 V AC, and 18 V AC. Double-section bobbin construction enables series or parallel secondary configurations.

Fully shrouded bobbins provide protection against electrical interference. Varnish-impregnated coils increase dielectric strength and durability. Solder tag terminations facilitate secure electrical connections. Tested to BS3535 and EN 60742 electrical safety standards.

Choose RS PRO 1 Output 100 VA Chassis Mount Transformer for durable, compliant, and flexible voltage transformation solutions. Explore our Electronics & Electricals category for additional transformers and power supply options.
