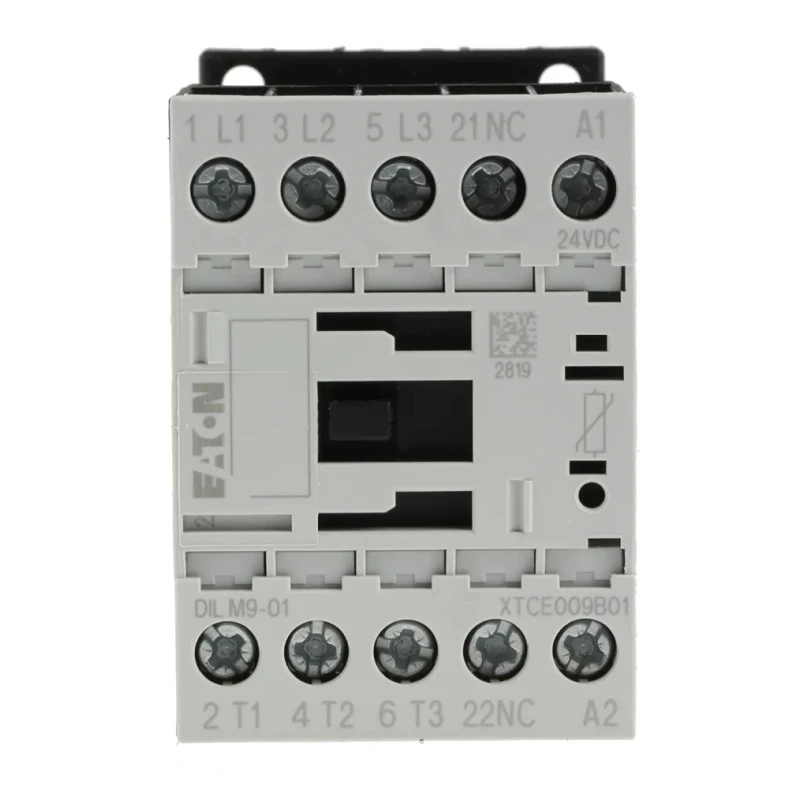

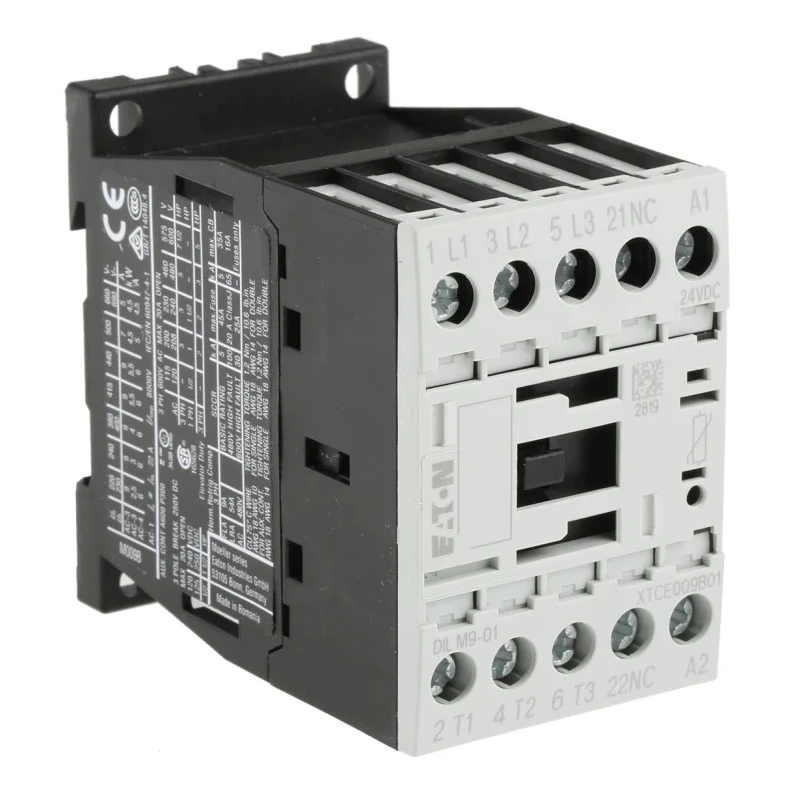

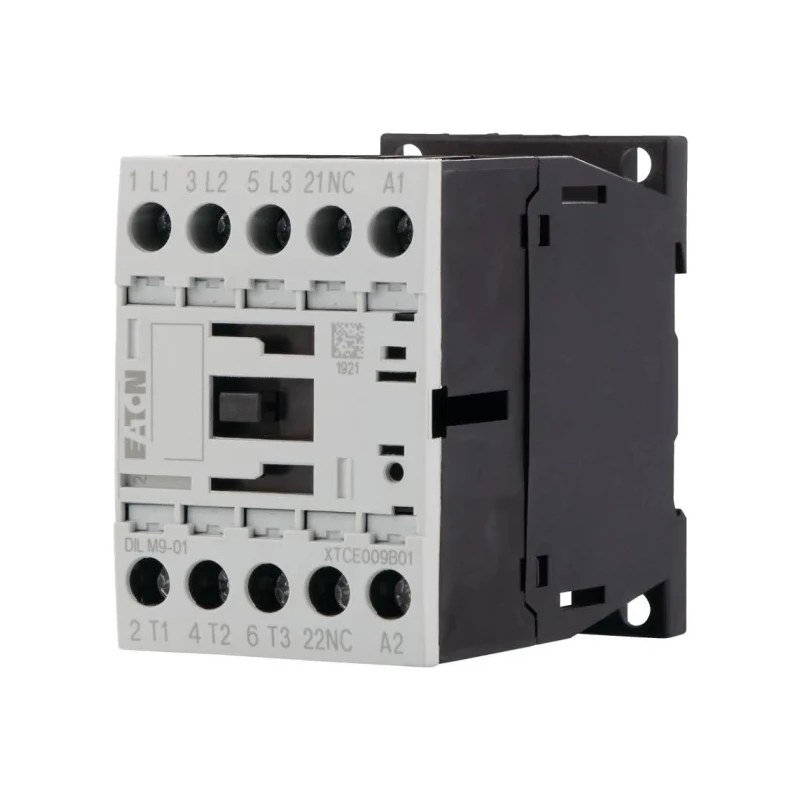

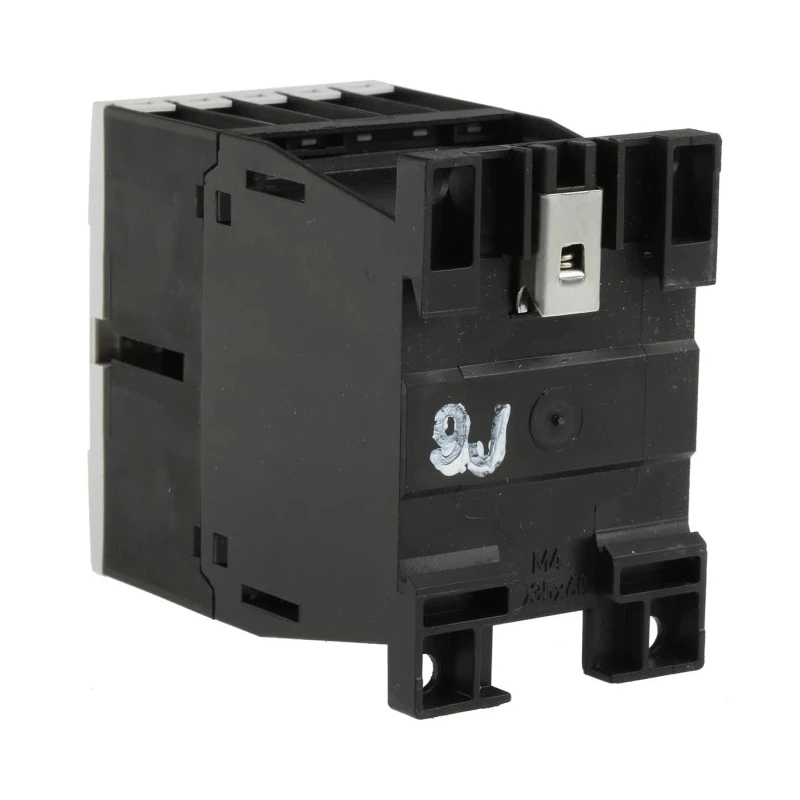

Eaton DILM Contactor, 24V DC Coil, 3-Pole, 9 A, 4 kW, 1 NC, 400V AC 276740 DILM9-01(24VDC)

Eaton 276740 DILM9-01(24VDC) contactor is a 3-pole electromechanical device designed for effective motor control and resistive load switching. It operates with a 24V DC coil voltage and supports a contact current of 9A, making it suitable to handle loads up to 4 kW at 400V AC.

Designed with screw terminal mounting, the contactor ensures secure connections. The device includes one normally closed auxiliary contact (1 NC) enhancing control circuit flexibility. Its robust IP20-rated housing safeguards against accidental contact and foreign objects greater than 12 mm, ensuring operator safety.

The contactor is built to operate reliably within a temperature range from -25°C to +40°C and withstands damp heat and mechanical shock, enabling durability in harsh industrial environments. It meets multiple international standards including IEC/EN 60947, UL, CSA, and VDE 0660, confirming its suitability for professional electrical applications.

Compact dimensions of 68 mm length, 45 mm width, and 117 mm depth make it suitable for use in confined panel spaces. This contactor is ideal for industrial applications such as controlling induction motors and resistive heating equipment like furnaces, where efficient and reliable switching is crucial.

This contactor supports up to 400V AC contact voltage and has a power rating of 4 kW. The device is equipped with one normally closed auxiliary contact (1 NC) for enhanced functionality. It features screw terminal mounting for secure and reliable electrical connections.

The product supports wide operating temperatures from -25°C to +40°C ensuring reliable performance in varied environments. It has an IP20-rated touch-proof housing for protection against objects larger than 12 mm. Complies with standards IEC/EN 60947, UL, CSA, and VDE 0660 for industrial applications.

The compact dimensions are 68 mm length, 45 mm width, and 117 mm depth for space-efficient installation. Ideal for controlling power supply to induction motors and resistance furnaces in industrial settings.

Eaton contactors are a dependable choice for industrial automation, manufacturing plants, HVAC systems, and electrical power controls. Browse the Electronics & Electricals category at EnvMart for comprehensive Contactor solutions and related control gear.
