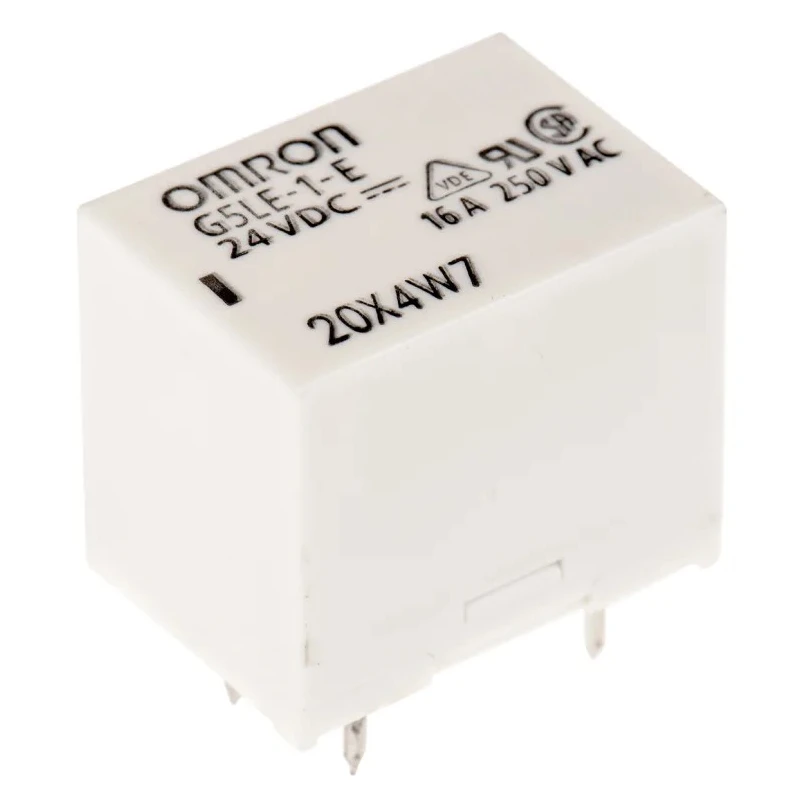

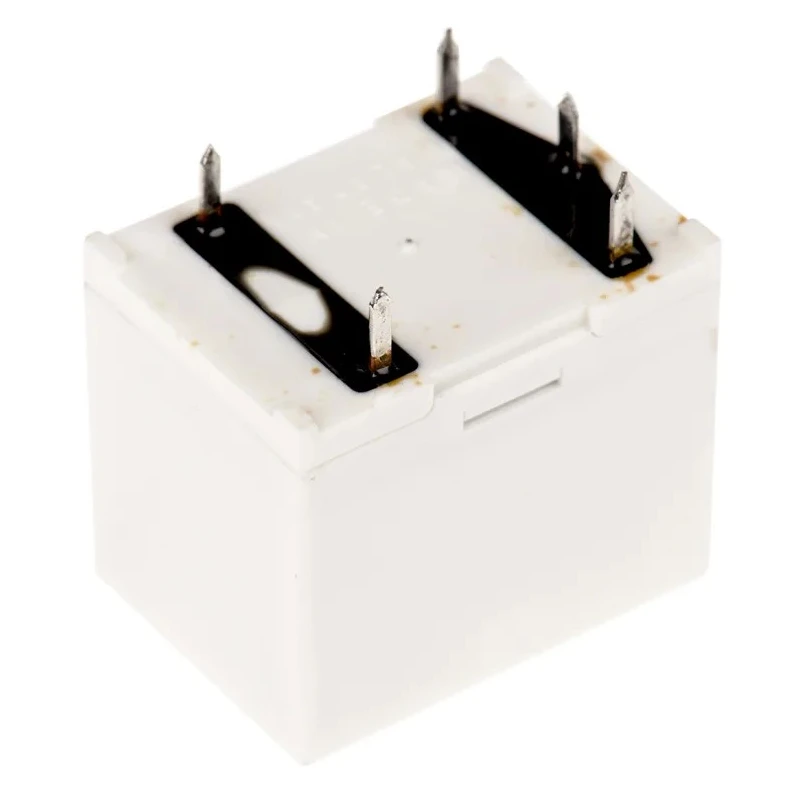

Omron Power Relay PCB Mount SPDT 24V DC Coil 16A Switching G5LE-1-E DC24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1-E DC24 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 35V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- This relay has a switching power rating of 4 kVA suitable for various control applications.
- It operates reliably within a temperature range from -25°C to 85°C.

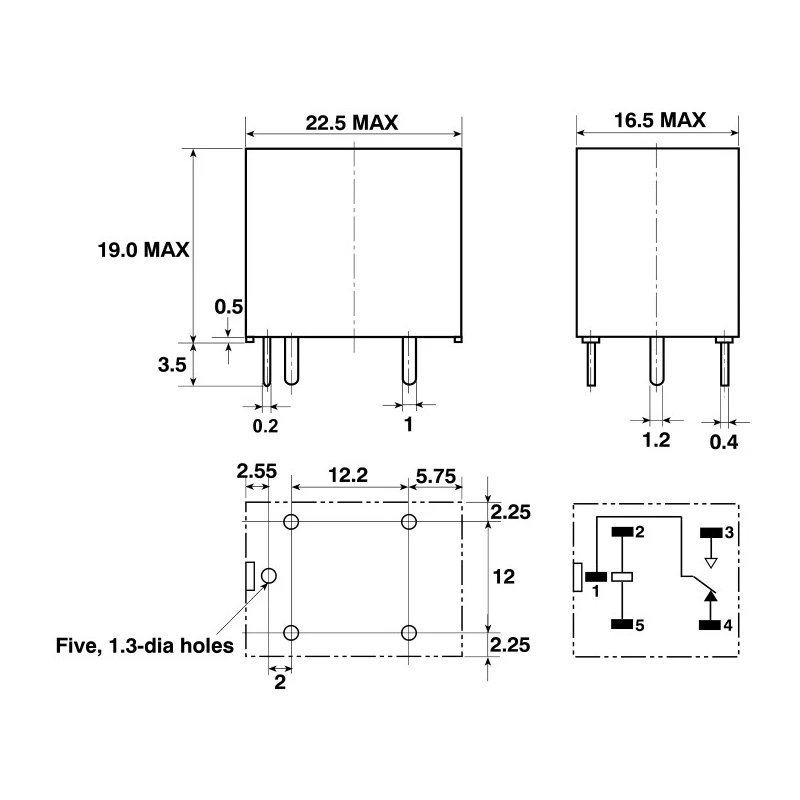

- Compact dimensions L22.5 x W16.5 x H19 mm make it ideal for subminiature control circuits.
- The coil resistance is 1.4 kΩ with a coil power consumption of 400 mW.
- Silver alloy contacts ensure low contact resistance of 100 mΩ for enhanced performance.
- Designed to comply with RoHS standards ensuring environmental safety.
- Mounting is via solder terminals on PCB for easy installation.
Product Description
Omron G5LE-1-E DC24 is a high-quality power relay designed for PCB mounting with a reliable SPDT (Single Pole Double Throw) contact configuration. It features a 24V DC coil and supports switching currents up to 16A, making it suitable for diverse industrial, automation, and control circuit applications.
This relay is part of the G5LE series, known for its subminiature "sugar cube" format, which helps save PCB space without compromising performance. It operates efficiently over a broad temperature range, from a minimum of -25°C to a maximum of 85°C, ensuring durability in harsh environments. The coil resistance of 1.4 kΩ and coil power of 400 mW provide energy-efficient operation.
With compact dimensions measuring 22.5 mm in length, 16.5 mm in width, and 19 mm in height, this relay integrates well into confined assemblies. Its silver alloy contact material reduces contact resistance to 100 mΩ, ensuring reliable high current switching capacity and long service life. This relay also withstands impulse voltages up to 4500 V.
The G5LE-1-E DC24 meets RoHS environmental compliance standards and is manufactured in Malaysia. It is designed with solder terminals for easy PCB mounting to facilitate quick and secure installation.
This relay supports switching power of up to 4 kVA, enabling it to handle significant electrical loads. Ideal for industrial automation, manufacturing equipment, HVAC control systems, and other electrically demanding applications.
Its compact size and high performance make it suitable for water treatment systems and commercial electrical controls. Product dimensions and high operating durability allow integration into laboratory and test bench setups.
Designed for long-term reliability in control circuits requiring precise switching and protection.
For users requiring reliable power relay modules, the Omron G5LE-1-E DC24 PCB-mounted SPDT relay offers a certified, high-standard solution perfectly suited for demanding industrial and electrical environments. Browse our Electronics & Electricals category for additional Power Relay options and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of up to 16A, making it suitable for various industrial and control applications.
It operates reliably within a temperature range from -25°C to 85°C, ensuring functionality in diverse environments.
The relay has compact dimensions of 22.5 mm in length, 16.5 mm in width, and 19 mm in height, making it ideal for space-constrained applications.
It is designed for PCB mounting with solder terminals, facilitating easy installation onto printed circuit boards.
The coil voltage is 24V DC, and it has a coil power consumption of 400 mW, allowing for energy-efficient operation.
This relay features a Single Pole Double Throw (SPDT) contact configuration, enabling versatile switching applications.
The relay uses silver alloy contacts, which help to reduce contact resistance to 100 mΩ for improved performance.
It can switch DC voltages up to 35V and AC voltages up to 250V, making it suitable for a variety of electrical loads.
Yes, it is designed to comply with RoHS standards, ensuring environmental safety and compliance.
The coil resistance is 1.4 kΩ, which is important for determining the energy requirements for operation.
The relay has a maximum switching power rating of 4 kVA, allowing it to handle significant electrical loads.
This relay is manufactured in Malaysia, ensuring adherence to quality standards during production.
