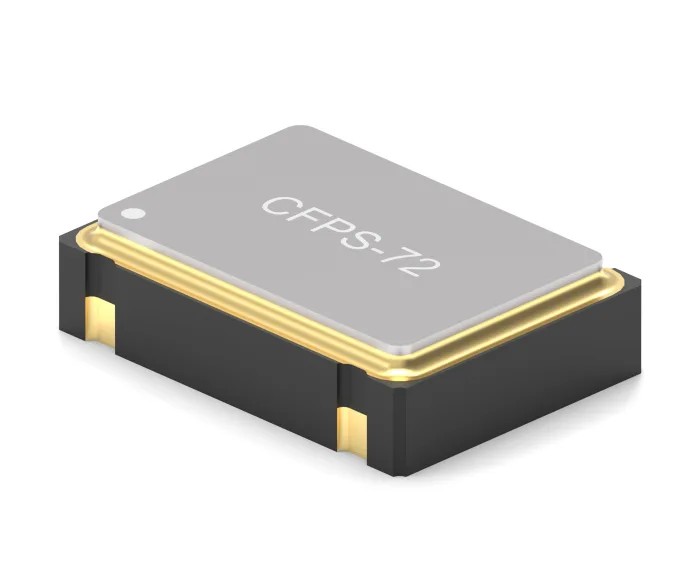

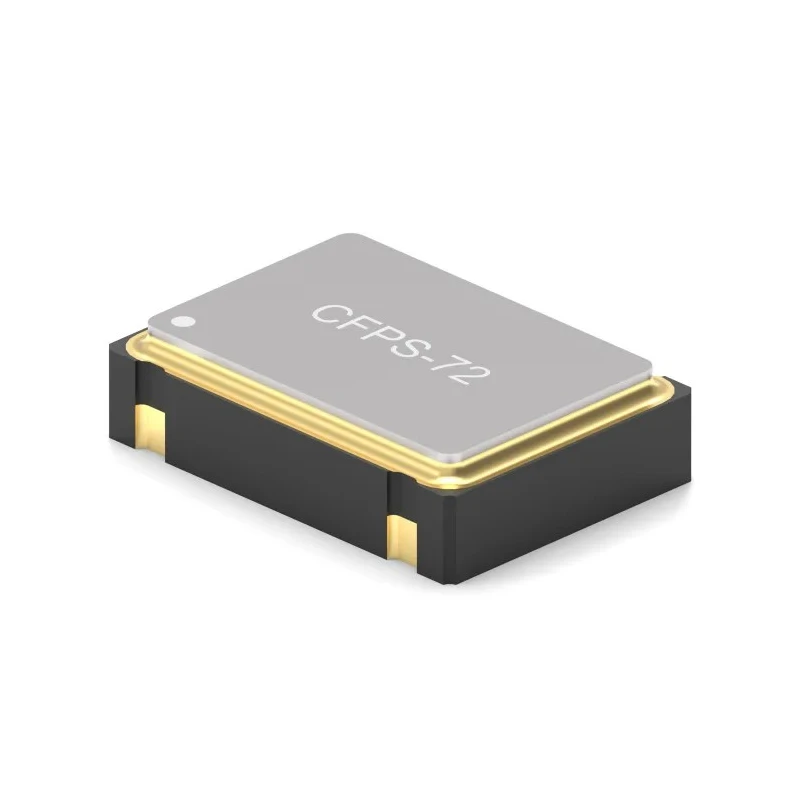

IQD 24MHz XO Oscillator ±50 ppm TTL HCMOS 4-Pin Surface Mount LFSPXO019082
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 1.5mm |
| Length | 7mm |
| Model | LFSPXO019082 |
| Packaging | Bulk |
| Width | 5mm |
| Mount Type | Surface |
| Series | CFPS-72 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 4 |
| Minimum Supply Voltage | 5V |
| Oscillator Type | XO |
| Output Level | TTL, HCMOS |
| Epson, 24MHz XO Oscillator, ±50ppm CMOS, 4-Pin SMD SG8002JAPHB24MHZBrand | Epson |
| AKER, 24MHz Clock Oscillator, ±50ppm HCMOS, 4-Pin SMD S75005-24.000-X-15Brand | AKER |
Key Features
- Operates at 24MHz frequency with XO oscillator type.
- Features 4-pin surface mount design suitable for PCB integration.
- Minimum supply voltage of 5V ensuring standard power requirements.
- Temperature operating range from 0°C to 70°C suitable for standard industrial environments.

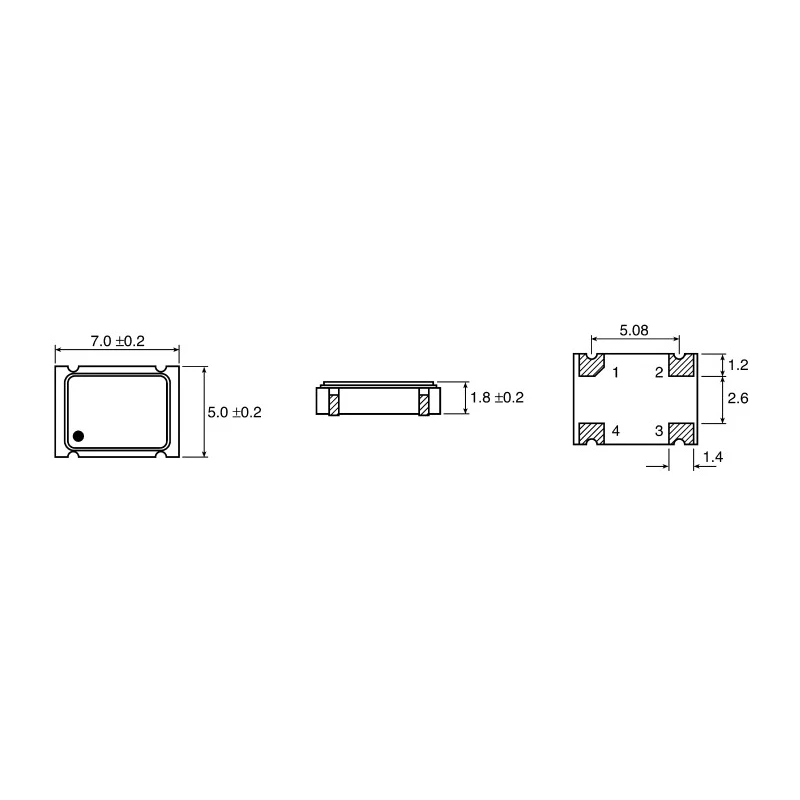

- Compact ceramic case with dimensions 7mm length, 5mm width, and 1.5mm height.
- Designed with hermetically sealed metal lid to provide high reliability against shock and vibration.
- Complies with REACH and RoHS environmental standards.
- Compatible with TTL and HCMOS output logic levels.
Product Description
IQD LFSPXO019082 is a 24MHz XO oscillator featuring ±50 ppm frequency stability with TTL and HCMOS output levels and a 4-pin surface mount ceramic package. It is designed for integration into electronic circuits requiring stable clock signals, such as industrial, commercial, and telecommunications applications.
The unit operates on a minimum supply voltage of 5V and is rated for temperatures between 0°C and 70°C, making it suitable for general electronic environments. Its compact size of 7 x 5 x 1.5 mm and hermetically sealed metal lid provide robust mechanical protection against shock and vibration, improving reliability in harsh conditions.
The oscillator meets environmental compliance standards such as REACH and RoHS, ensuring adherence to regulations regarding hazardous substances. Its 4-pin surface mount package facilitates automated PCB assembly processes, enhancing production efficiency.
Operates at 24MHz frequency with XO oscillator type. Features 4-pin surface mount design suitable for PCB integration. Minimum supply voltage of 5V ensuring standard power requirements. Temperature operating range from 0°C to 70°C suitable for standard industrial environments.
Compact ceramic case with dimensions 7mm length, 5mm width, and 1.5mm height. Hermetically sealed metal lid enhances durability against shock and vibration. Compliance with REACH and RoHS environmental directives. Compatible with TTL and HCMOS output logic levels.
Not suitable for automotive standards applications.
This crystal oscillator is ideal for industrial, telecommunications, consumer electronics, and laboratory applications requiring precise and reliable frequency sources. Its standard size and surface mount package enable easy integration into modern PCB designs.
Browse EnvMart’s Electronics Components category to explore more Crystal Oscillators and electronic components from leading brands like IQD.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IQD LFSPXO019082 operates at an output frequency of 24MHz.
This oscillator has dimensions of 7mm in length, 5mm in width, and 1.5mm in height.
The minimum supply voltage required for this oscillator is 5V.
It operates within a temperature range of 0°C to 70°C, making it suitable for standard industrial environments.
This model is compatible with TTL and HCMOS output logic levels.
It features a 4-pin surface mount ceramic package, suitable for PCB integration.
The IQD LFSPXO019082 has a frequency stability of ±50 ppm.
Yes, it complies with REACH and RoHS environmental standards.
It is ideal for industrial, telecommunications, consumer electronics, and laboratory applications requiring stable clock signals.
The oscillator is designed with a hermetically sealed metal lid, providing high reliability against shock and vibration.
This model is packaged in bulk for distribution.
This oscillator belongs to the CFPS-72 series.
