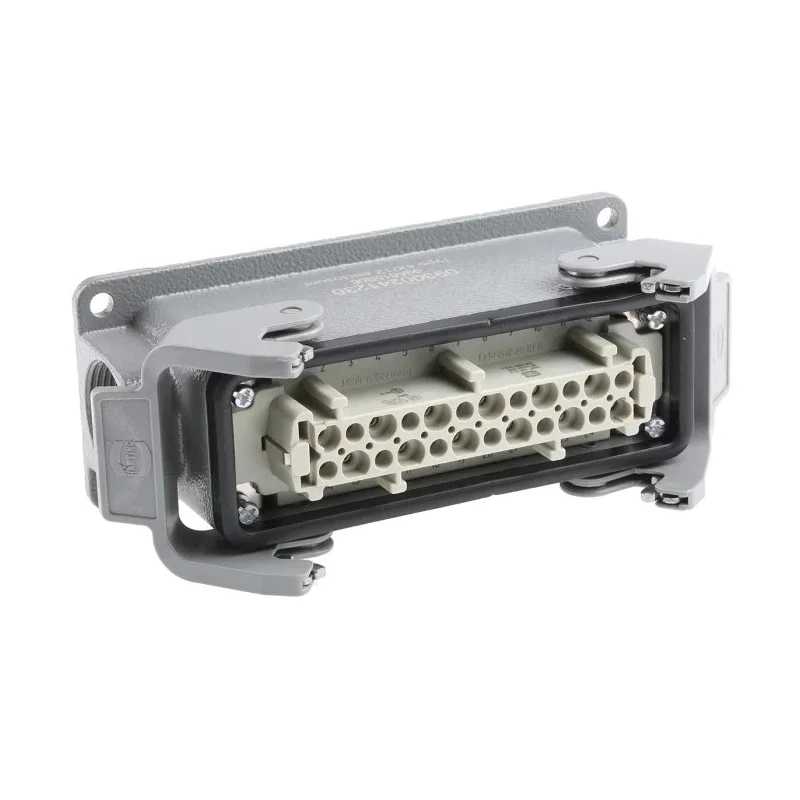

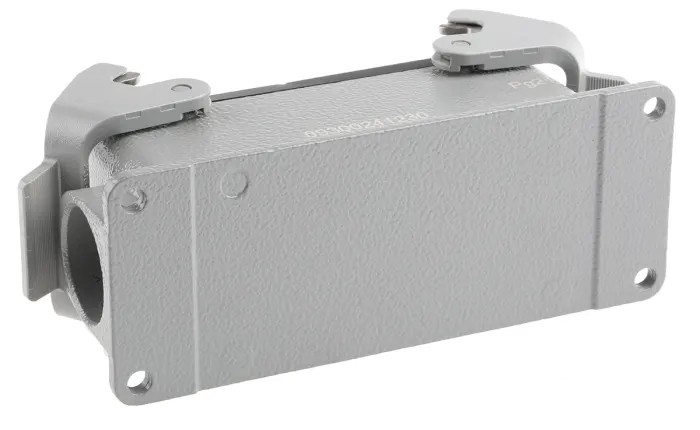

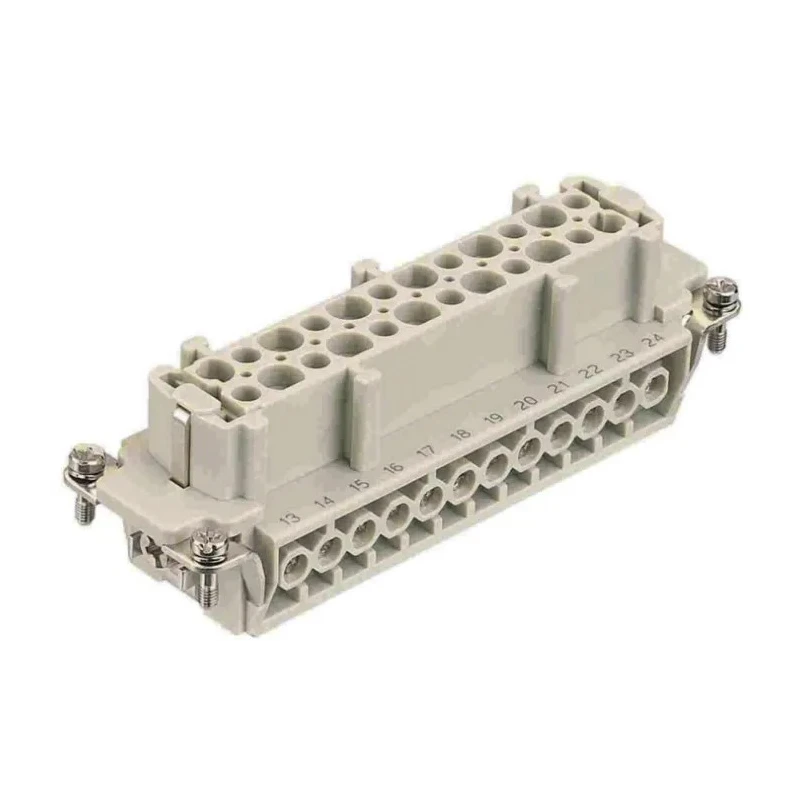

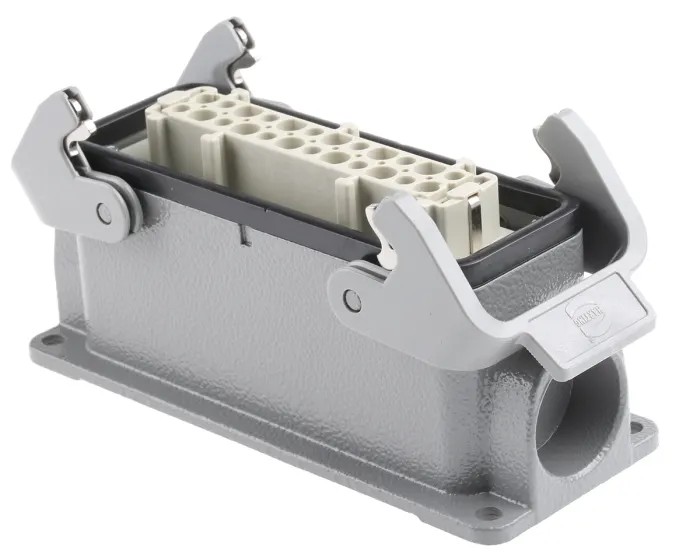

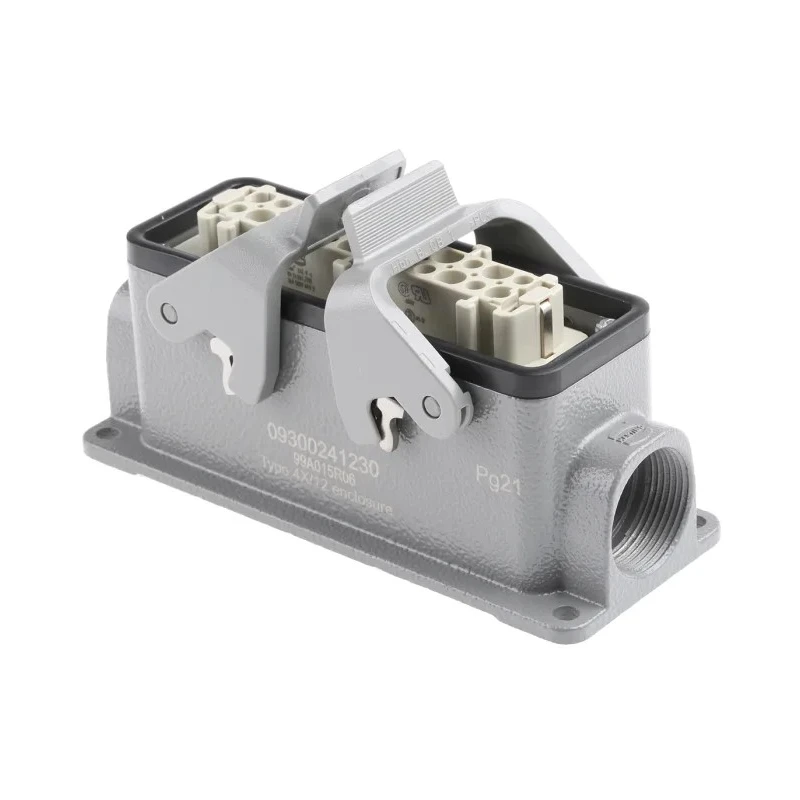

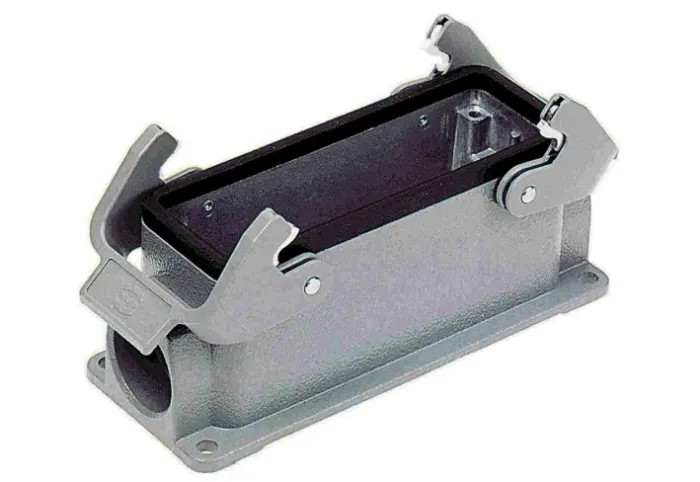

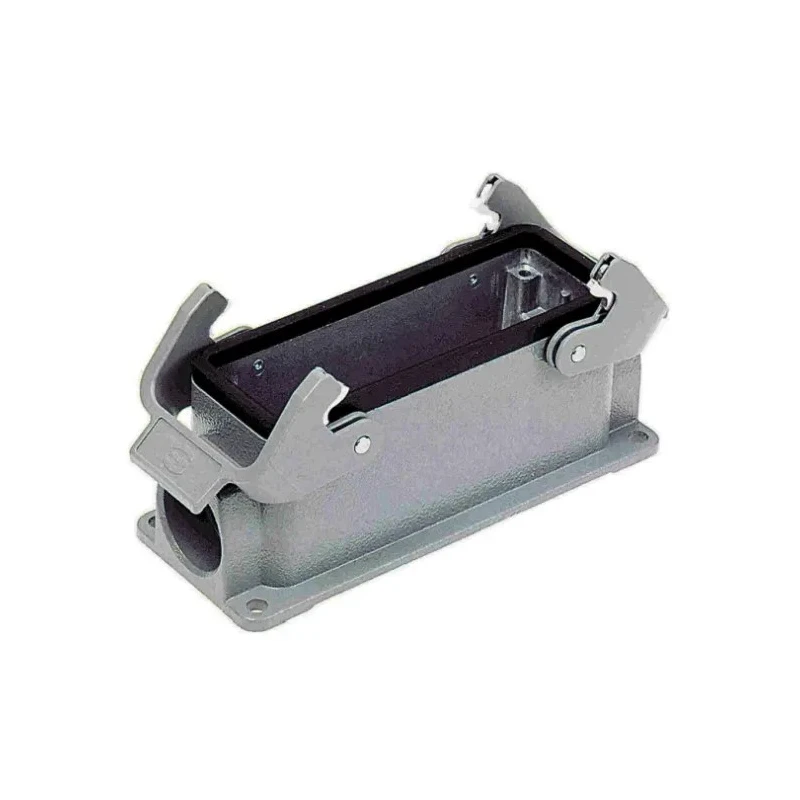

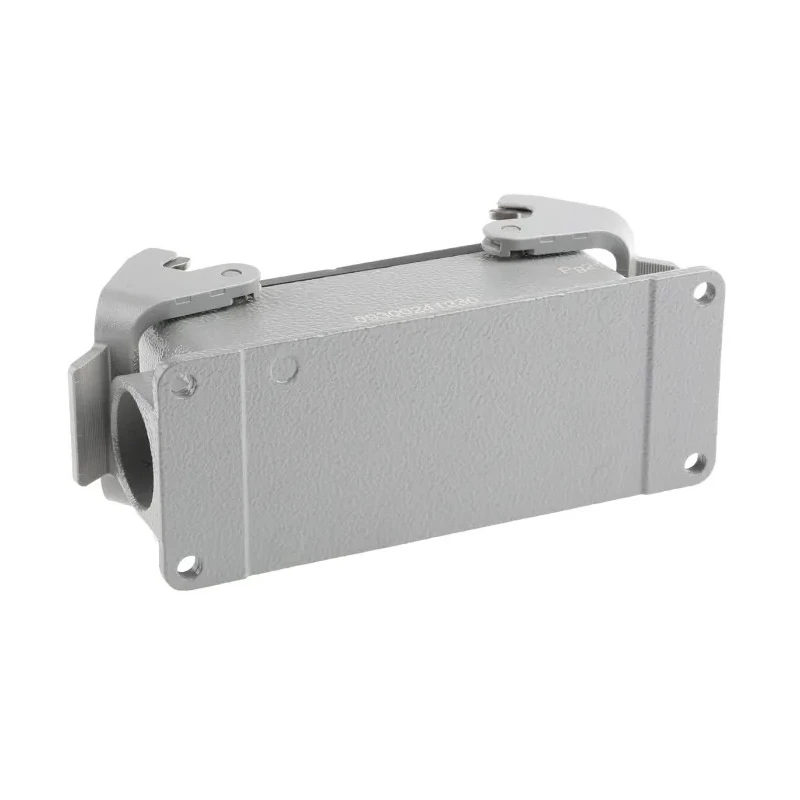

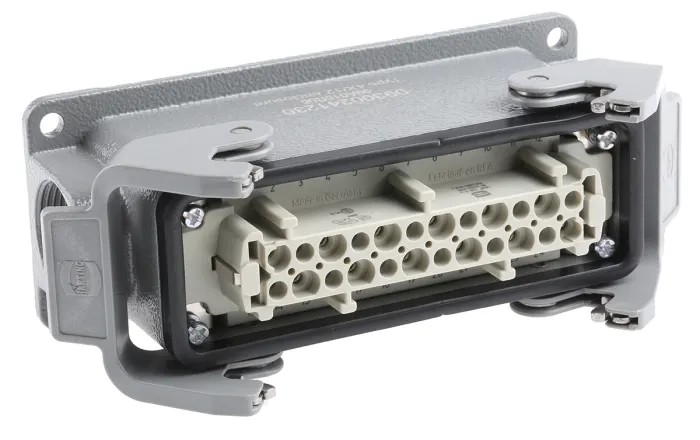

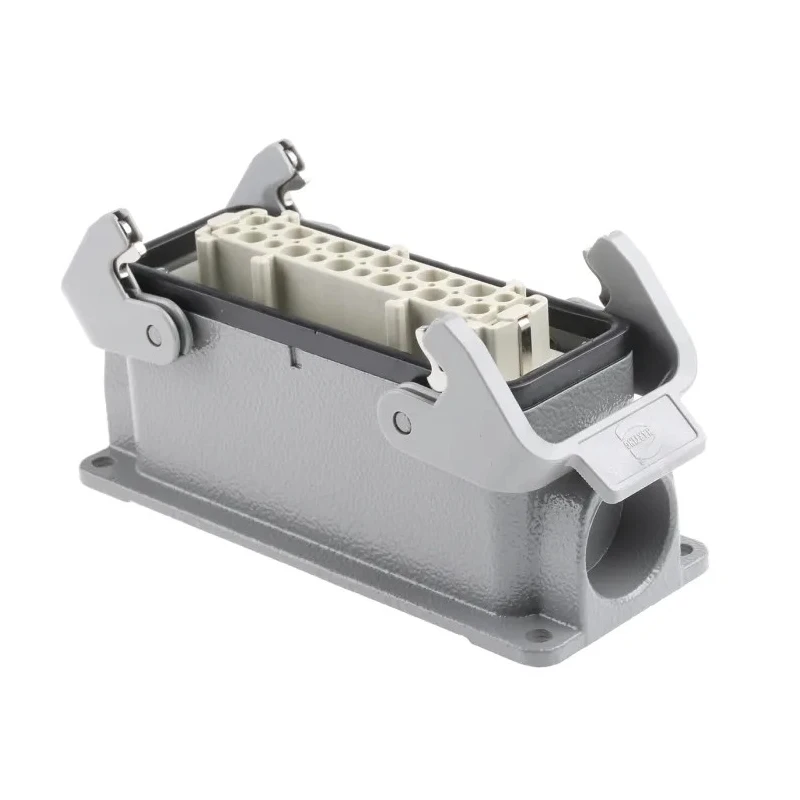

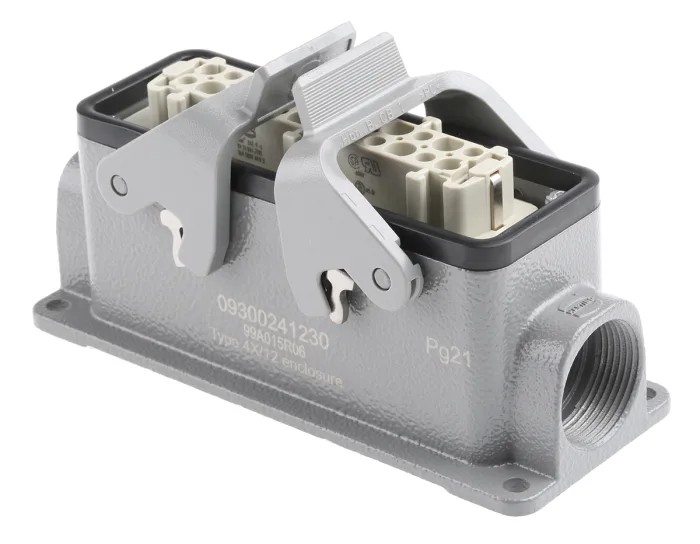

HARTING Heavy Duty Power Connector Panel Mount Screw Termination 24 Way 16A 500V Han E Female 09300241230+09330242701
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 16A |
| Model | 09300241230+09330242701 |
| IP Rating | IP44 |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Series | Han E |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Thread Size | PG21 |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pole Format | 24+PE |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Features 24 contacts plus protective earth for consolidated power and earth distribution.
- Rated for 16A current and 500V voltage for versatile industrial applications.
- Silver-plated copper alloy contacts ensure low resistance and high conductivity.
- Supports a wide temperature range from −40°C to 125°C for harsh environments.
- IP44 ingress protection grants splash resistance in industrial equipment housings.
- Straight orientation and 24+PE pole format facilitate multi-core harness routing.
- Screw termination type enables robust and reliable conductor connection.
- Panel mounting with PG21 thread size ensures mechanical stability and sealing.
Product Description
HARTING 09300241230+09330242701 Heavy Duty Power Connector is a panel-mounted, screw termination connector designed for industrial power distribution systems. Rated for 16A current and 500V voltage, this Han E female connector offers a stable and secure electrical interface with 24 contacts plus a protective earth conductor to consolidate power and earth connections.
The connector is constructed from silver-plated copper alloy contacts, enhancing electrical conductivity and reducing contact resistance. Its robust casing and IP44 ingress protection provide splash resistance, suitable for industrial, manufacturing, and automation environments where electrical safety and reliability are paramount.
Its temperature rating from -40°C to 125°C allows usage in harsh environmental conditions, making it ideal for machine tools, factory automation control panels, electrical cabinets, and modular machinery connections. The straight orientation and a pole format of 24+PE simplify wiring harness assembly and maintenance tasks.
The panel mount design features PG21 threaded interfaces for secure mechanical mounting and environmental sealing. Screw termination ensures firm clamping of conductor wires compatible with standard conductor sizes, facilitating installation and maintenance without special tools.
Provides 24 contacts plus protective earth for power distribution. Rated at 16 amperes and 500 volts for moderate industrial loads. Silver-plated copper alloy contacts improve conductivity and durability. Wide temperature operation between -40°C and 125°C.
IP44 rating ensures splash protection in demanding environments. Panel mount with PG21 thread for stable installation. Straight connector orientation with 24+PE pole format. Screw termination enables secure conductor connection.
This connector is manufactured in Germany, ensuring high quality and precision. It is well suited for industrial applications such as electrical enclosures, machine tool connections, and automated production systems.
Explore EnvMart's comprehensive range of HARTING power connectors for robust and reliable industrial electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 16A current and 500V voltage, suitable for moderate industrial loads.
It operates within a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
The connector features 24 contacts plus a protective earth conductor for consolidated power and earth distribution.
It uses a screw termination type, which ensures a robust and reliable connection for conductor wires.
The connector has an IP44 ingress protection rating, providing splash resistance in industrial environments.
This model is designed for panel mounting and features a PG21 thread size for secure installation.
The contacts are made from silver-plated copper alloy, which enhances conductivity and reduces contact resistance.
It has a straight orientation, which facilitates multi-core harness routing and simplifies wiring tasks.
It is manufactured in Germany, ensuring high quality and precision in its construction.
It is well suited for applications in electrical enclosures, machine tool connections, and automated production systems.
The connector includes a protective earth conductor to ensure safety by providing a path for fault currents, enhancing electrical safety.
This connector has a female contact gender, designed for compatibility with corresponding male connectors.
