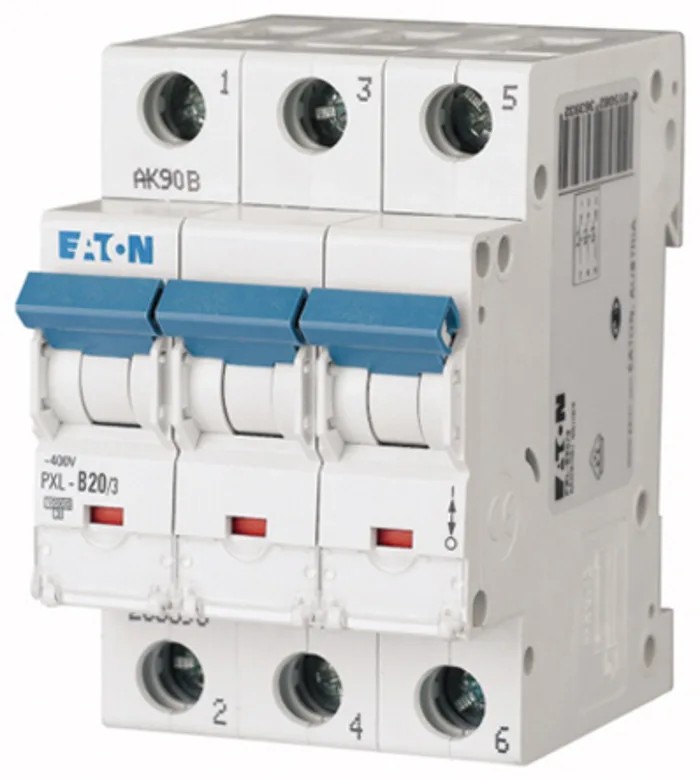

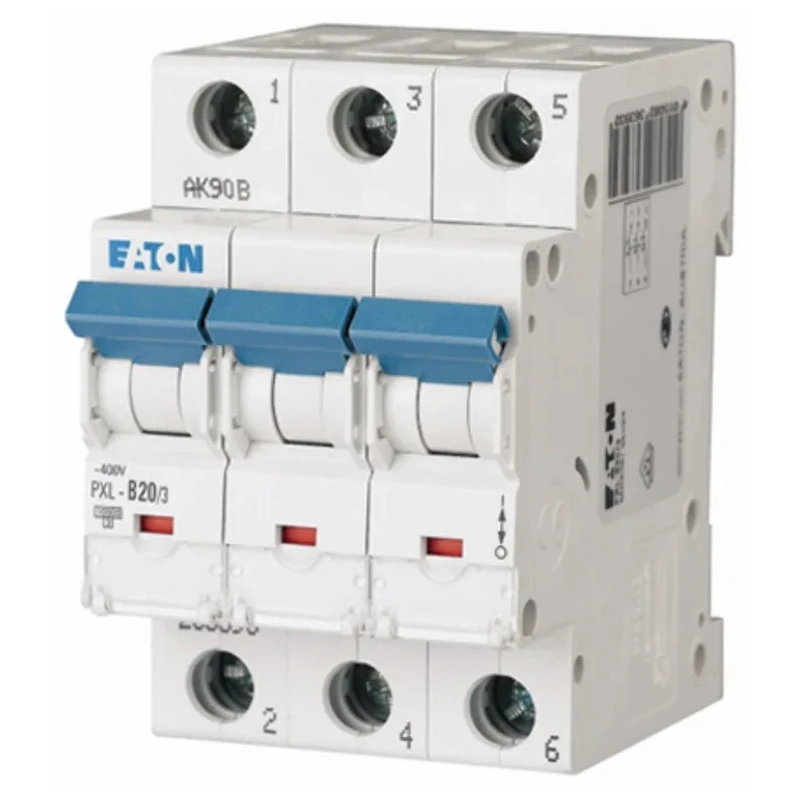

Eaton xPole PXL Miniature Circuit Breaker, 3-Pole, 20A Current Rating, Type B Tripping, 400V AC, 48V DC, 10 236393 PXL-B20/3
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 35mm |
| Model | 236393 PXL-B20/3 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed with Type B tripping characteristics for household and light commercial use.
- Rated for 400V AC and 48V DC voltages ensuring versatile application compatibility.
- Offers breaking capacity up to 10 kA for effective circuit interruption.
- Mounts easily on DIN Rail with toggle switch reset actuator for user convenience.
- Complies with IEC/EN 60898 standards for quality and safety assurance.
- Features instantaneous break time with electromagnetic tripping mechanism for fast response.
- Compact dimensions measuring 80mm width, 60mm depth, and 35mm height.
Product Description
Eaton 236393 PXL-B20/3 Miniature Circuit Breaker is a high-quality protective device engineered to safeguard electrical circuits in industrial, commercial, and residential installations.
This 3-pole breaker, part of the xPole PXL series, offers a current rating of 20A and incorporates Type B tripping characteristics, making it ideal for applications with low inrush currents such as lighting and heating circuits.
Capable of operating at 400V AC and 48V DC voltages, it ensures reliable protection against overcurrents and short circuits with a breaking capacity of 10 kA.
The circuit breaker is designed for DIN rail mounting, featuring a user-friendly toggle switch as the reset actuator, and an electromagnetic tripping mechanism with instantaneous break time for quick circuit disconnection.
Built for safety and compliance, it meets internationally recognized IEC and EN 60898 standards and provides finger-proof and back-of-hand-proof protection to guard against accidental contact.
Its compact design with dimensions of 80mm width, 60mm depth, and 35mm height allows installation in space-constrained electrical panels. Type B tripping characteristic suitable for household and light commercial circuits.
10 kA breaking capacity ensures robust circuit interruption under fault conditions. Complies with IEC/EN 60898 standards for electrical equipment safety. Compact size for convenient installation on IEC/EN 60715 top-hat rails.
Suitable for use with bus bars and features double terminals for secure connections.
This Eaton Miniature Circuit Breaker is sourced from Austria and is ideal for applications in electrical, automation, industrial controls, and infrastructure systems requiring dependable circuit protection.
Explore the extensive Eaton xPole range on EnvMart for compatible protective devices and circuit solution components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this miniature circuit breaker is 20A.
It has a breaking capacity of 10 kA, which ensures effective circuit interruption under fault conditions.
This circuit breaker is rated for 400V AC and 48V DC voltages, making it versatile for various applications.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
The dimensions are 80mm in width, 60mm in depth, and 35mm in height.
It features an electromagnetic tripping mechanism with instantaneous break time for quick circuit disconnection.
This model has Type B tripping characteristics, suitable for household and light commercial circuits.
It complies with IEC and EN 60898 standards for electrical equipment safety.
It uses a toggle switch as the reset actuator for user convenience.
This circuit breaker is sourced from Austria.
The IP rating of this model is IP20, indicating it is protected against solid objects larger than 12.5mm.
It is suitable for applications in electrical, automation, industrial controls, and infrastructure systems requiring circuit protection.
