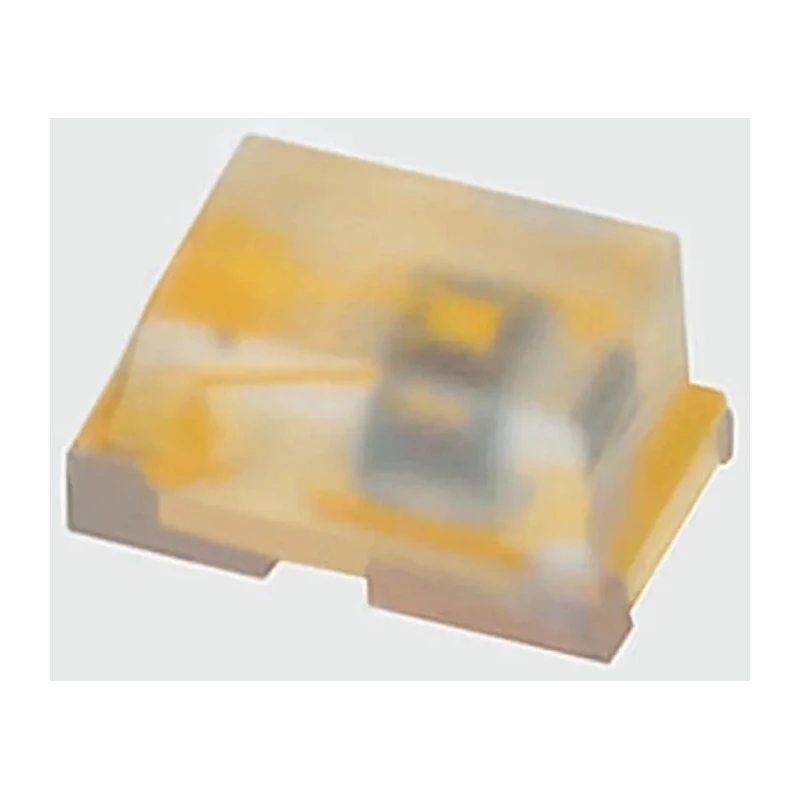

Kingbright 2.5 V Yellow LED 1005 Surface Mount SMT Chip LED 0402 Package KPHHS-1005SYCK
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPHHS-1005SYCK |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPHHS-1005 |
| Maximum forward current | 175mA |
| Viewing angle | 120 ° |
| Package Type | 1005 |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 150 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 1 x 0.5 mm |
| Lens Shape | Rectangular |
Key Features
- This LED operates at a forward voltage of 2.5 V providing efficient illumination.
- It features a maximum forward current of 175 mA and power dissipation of 75 mW.
- The device emits bright yellow light with a dominant wavelength of 590 nm and luminosity of 150 mcd.
- The LED package dimensions are compact at 1 x 0.5 mm with a rectangular lens shape and clear finish.
- It offers a wide viewing angle of 120 degrees suitable for indicator and backlight applications.
- The product is RoHS compliant and designed for surface mounting on PCBs.
- The LED has two pins and comes packaged in tape & reel for efficient assembly.
Product Description
Kingbright KPHHS-1005SYCK is a yellow surface mount light emitting diode (LED) featuring the standard 1005 (equivalent to 0402) SMT package size of 1.0 x 0.5 x 0.5 mm. This LED is designed for applications requiring low power consumption with high reliability and long service life. Operating at a forward voltage of 2.5 V and maximum forward current of 175 mA, it can dissipate up to 75 milliwatts power efficiently.
The LED emits bright yellow light with a dominant wavelength of 590 nm and a luminous intensity of 150 millicandela, making it suitable for use as backlighting, status indicators, or signaling in electronic devices. The rectangular lens with a clear finish provides a wide 120-degree viewing angle, ensuring good light dispersion.
Packaged on tape & reel, the KPHHS-1005SYCK facilitates automated pick-and-place assembly, ideal for high-volume manufacturing processes. Its two-pin surface mount design ensures reliable solder junctions on printed circuit boards.
This LED is RoHS compliant, promoting environmental safety by restricting hazardous substances. Its compact size and surface mount type make it widely used in consumer electronics, industrial equipment, automotive displays, communication devices, and instrumentation.
Manufactured in China, this LED series conforms to quality and performance standards established by Kingbright. Its compact footprint and efficient light output provide practical advantages in densely packed electronic assemblies.
Compact 1005 (0402) SMT package measuring 1.0 x 0.5 mm. Wide 120° viewing angle for effective light emission. Yellow LED with 590 nm wavelength, 150 mcd luminosity. Forward voltage of 2.5 V and maximum current of 175 mA.
Power dissipation rating of 75 mW. Surface mount with 2-pin configuration for PCB mounting. RoHS compliant LED suitable for industrial and commercial use.
Explore more Kingbright LEDs and electronic components for your industrial, commercial, or laboratory applications with EnvMart. Discover reliable, efficient LED solutions for signaling, indicator lights, and backlighting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of the Kingbright KPHHS-1005SYCK LED is 2.5 V.
This model has a maximum forward current of 175 mA.
The luminous intensity of the KPHHS-1005SYCK is 150 millicandela (mcd).
The dominant wavelength of the emitted light is 590 nm.
The package dimensions of this LED are 1.0 x 0.5 mm, corresponding to the 1005 (0402) SMT package size.
It features a wide viewing angle of 120 degrees, suitable for effective light emission.
The KPHHS-1005SYCK is packaged on tape and reel, facilitating automated pick-and-place assembly.
The maximum power dissipation rating for this LED is 75 mW.
Yes, the KPHHS-1005SYCK is RoHS compliant, promoting environmental safety by restricting hazardous substances.
This LED is designed for surface mounting with a 2-pin configuration for PCB mounting.
This LED is suitable for applications such as backlighting, status indicators, and signaling in electronic devices.
The lens shape of the KPHHS-1005SYCK is rectangular with a clear finish.
