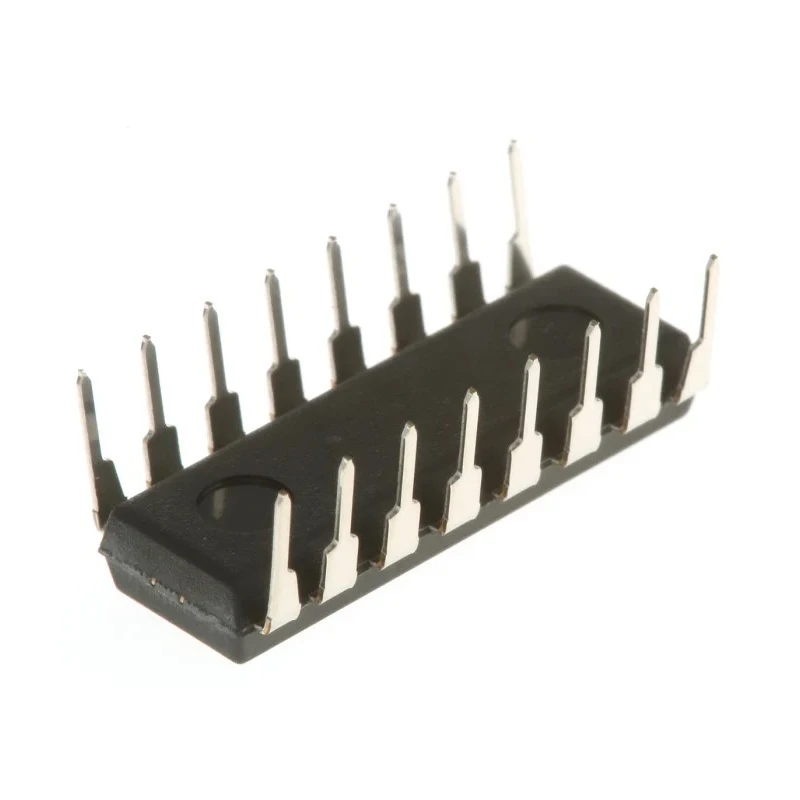

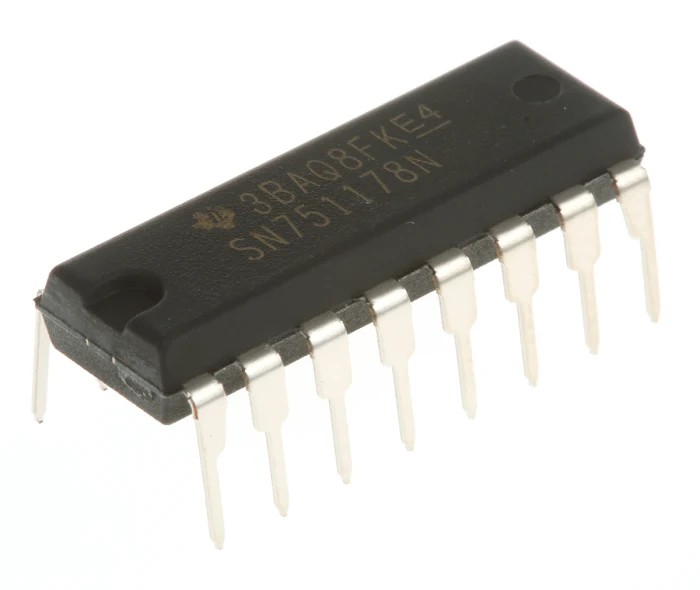

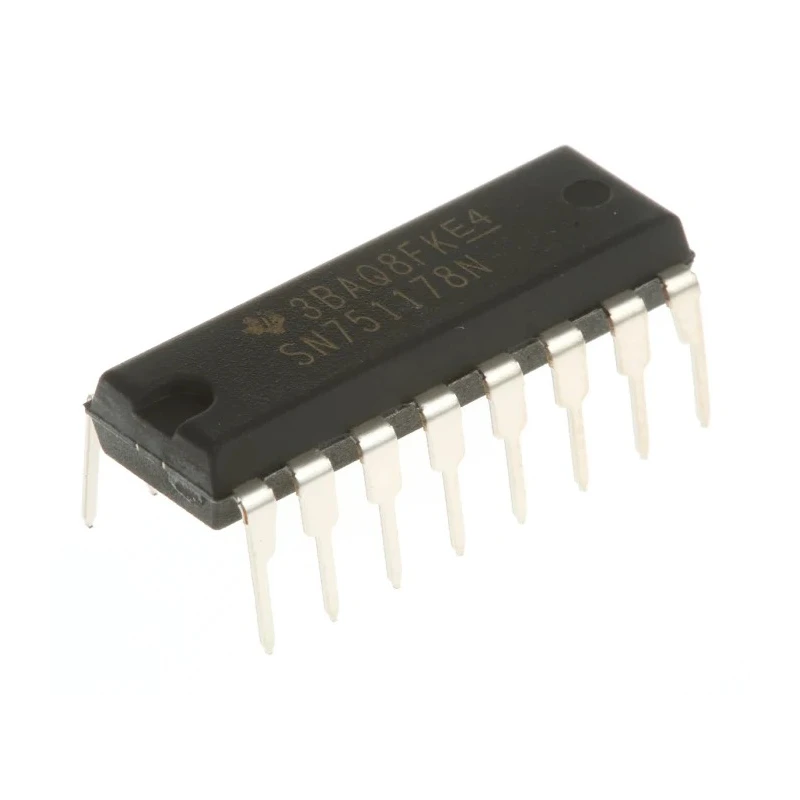

Texas Instruments 2-Channel Differential Non-Inverting Line Transceiver 16-Pin PDIP SN751178N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | SN751178N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN751178 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -20°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 436-3232Brand: Texas InstrumentsManufacturers Part No.: SN751178N |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 110mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a minimum supply voltage of 4.75 V and maximum of 5.25 V.
- Provides differential input and output types to enhance signal integrity.
- Non-inverting polarity suitable for reliable data transmission.
- Features a maximum propagation delay time of 35 ns at capacitive load.
- Designed for through-hole mounting and housed in a 16-pin PDIP package.
- Operating temperature range from -20°C to 85°C for industrial applications.
- Supply current typically 110 mA for efficient power usage.
- Maximum high level output current of -60 mA and maximum low level output current of 60 mA.
Product Description
Texas Instruments SN751178N is a precision 2-channel line transceiver designed for RS-485 communication standards. This non-inverting, differential line transceiver IC supports high data rates suitable for industrial, communication, and electronic control applications.
It operates over a supply voltage range from 4.75 V to 5.25 V and can handle a maximum propagation delay of 35 ns at capacitive load, ensuring low latency signal transmission. The device features differential inputs and outputs to maintain signal integrity and reduce noise interference during data communication.
The SN751178N comes in a 16-pin PDIP package with through-hole mounting, making it compatible with conventional PCB assembly practices. Its operating temperature range from -20°C to 85°C allows it to perform reliably in harsh industrial environments.
With a compact form factor measuring 19.69 mm in length, 6.6 mm in width, and 5.08 mm in height, this transceiver is suitable for space-constrained applications. Its supply current consumption is typically 110 mA, with output currents rated at -60 mA (high level) and 60 mA (low level), delivering robust drive capabilities for communication lines.
Commonly used in industrial automation, instrumentation, and data communication equipment, the SN751178N is essential for implementing efficient RS-485 line driving and receiving functionalities.
Operates at supply voltages between 4.75 V and 5.25 V for stable power performance. Provides differential, non-inverting input and output for enhanced signal quality. Supports through-hole mounting in a 16-pin PDIP package.
Functions reliably across a wide temperature range from -20°C to 85°C. Low propagation delay of 35 ns enabling high-speed data transmission. Compact dimensions compatible with space-limited circuit designs. High output current ratings ensure strong signal drive capability.
Ideal for RS-485 standard industrial and commercial communication systems. Explore more electronic components and semiconductor devices in the Electronics & Electricals category on EnvMart for comprehensive industrial solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.75 V to 5.25 V.
The maximum propagation delay time is 35 ns at capacitive load.
It provides differential output types to enhance signal integrity during data transmission.
The operating temperature range is from -20°C to 85°C, suitable for industrial applications.
This unit measures 19.69 mm in length, 6.6 mm in width, and 5.08 mm in height.
It supports 2 channels for differential line transmission.
The typical supply current is 110 mA, which aids in efficient power usage.
It is designed for through-hole mounting in a 16-pin PDIP package.
The maximum high level output current is -60 mA.
It features differential input types, which are essential for maintaining signal quality.
This model is commonly used in industrial automation, instrumentation, and data communication equipment.
It belongs to the SN75 logic family, designed for line transceiver functions.
